Hybrid Turbo Honda Civic CDTI 140 – 18900-RSR-E01, 753708-5005S 2.0 hp

Hybrid

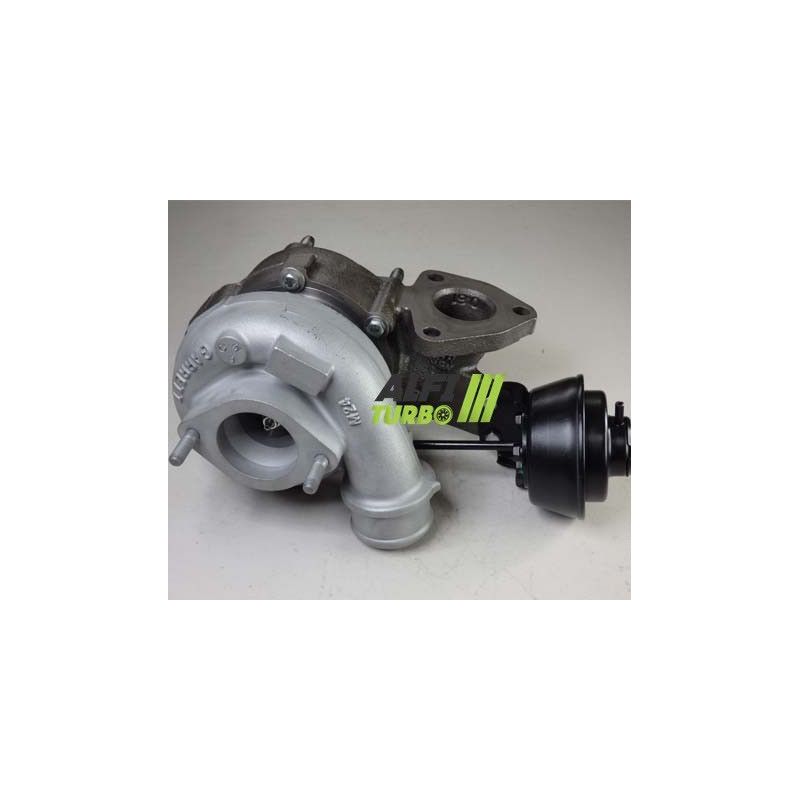

Hybrid Turbo Honda Civic 2.0 CDTI 140, 753708, 18900-RSR-E01
  • Hybrid Turbo Honda Civic 2.0 CDTI 140, 753708, 18900-RSR-E01
  • Hybrid Turbo Honda Civic 2.0 CDTI 140, 753708, 18900-RSR-E01
  • Hybrid Turbo Honda Civic 2.0 CDTI 140, 753708, 18900-RSR-E01
753708
Year: From 2006
Power: 140 hp
displacement: To be verified — ‘ 2.0 ’ in the title, ‘.2’ in the documented allocation
Engine code: Not specified
Gasket kit
Preparation course
Exchange
€441.00 VAT included

367.5 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbocharger is designed for for installation plug & play without any modification to the original assembly d. Depending on the upgrade package chosen, it is fitted with a high-flow MFS compressor wheel, a 360° bearing retainer and high-speed balancing on a Cimat VSR test bench.

The specification provided applies to the Honda Civic 2.2 CDTI with a 140 hp engine from 2006 onwards. There is a difference in engine capacity compared to the product title, which states ‘ 2.0 ’ CDTI: it is therefore essential to check the part numbers.

Available specifications — Stage 1, Stage 2 and Stage 3

Stage 1

Compressor wheel: MFS high-flow
Thrust bearing: 360° bearing
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

This modification affects the compressor impeller to d’adjust the compression capacity and air flow rate d’air, whilst retaining a configuration designed to be fitted without any modifications to the vehicle.

Stage 2

Compressor impeller: MFS high-flow oversized
Intake casing d: reprofiled for accommodate the new impeller oversized
Thrust bearing: 360° bearing
Balancing: high-speed balancing at 150,000 rpm on a Cimat VSR test bench

Stage 2 combines a oversized compressor impeller with a reprofiled intake housing d. This modification is designed to correctly accommodate the new geometry and to alter the compressor’s flow capacity.

Stage 3

Compressor impeller: MFS high-flow oversized
dintake housing: re-profiled for to accommodate the new impeller oversized
Thrust bearing: 360° bearing
Turbine impeller: high flow oversized
Turbine casing: re-profiled for ly to accommodate the new impeller oversized
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

This modification is carried out on both the compressor and turbine sides. The final performance depends on the overall engine configuration and its settings; a larger impeller alone does not guarantee better performance in all conditions.

What is a hybrid turbo?

A hybrid turbo features a turbocharger architecture adapted for accommodate modified internal components. Depending on the upgrade package, the modification may involve the compressor wheel, the housings, the turbine wheel, the thrust bearing system and balancing.

The aim is dto adapt the compression and air flow d. The result, however, depends on the consistency between the impellers, the housings, the boost pressure and the engine management system; the appearance of the compressor impeller alone is not sufficient to define the modification.

MFS compressor wheel: standard or ‘ Performance ’?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow rate d. A standard MFS wheel may retain a geometry close to the original.

An MFS wheel Performance can be designed with a geometry tailored to the tuning objective. In this product, the wheel shown is made of forged aluminium; it is lighter, larger and taller than the doriginal; the specification sheet indicates an additional compression capacity of 15 per cent.

A standard MFS impeller can be just as efficient as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d’air. A higher airflow can only be fully utilised with appropriate engine tuning.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and arrangement of its blades all influence its aerodynamic behaviour. A suitably designed geometry can move more dair under certain conditions, but the result also depends on the casings, the turbine, the boost pressure and the mapping. An increase in size can also alter the response time.

Reliability and balancing of the hybrid turbocharger

The 360° bearing stop, present on all three documented stages, helps to distribute axial forces. It does not eliminate the need dfor proper lubrication or dfor correct installation.

The rotor is balanced at high speed, at 150,000 rpm on a Cimat VSR test bench, in order to minimise vibrations and mechanical stresses. This balancing does not protect the turbocharger against incorrect installation, contamination or a fault d’in the oil supply.

Engine remapping and preparation

d’ operation of a hybrid turbo may require adjustments to the mapping, boost pressure and wastegate. Depending on the level of tuning, the fuel injection, exhaust system, intake air cooling d, clutch or gearbox may also need to be checked. The turbo alone does not guarantee any power gain.

Turbo specifications

OEM part number — Honda

18900-RSR-E01

Manufacturer’s part numbers

753708-0005
753708-5005S
GT1752V

Compatible vehicles and applications

Honda
Civic 2.2 CDTI — 140 hp
Engine variants: 2-., 2-CDTI — from 2006, end date unspecified
Engine code: not specified

Additional technical specifications

Product type: turbo hybrid
Fitting: plug & play, no modifications required
Engine specified in the title: Honda Civic 2.0 CDTI 140 hp
Documented application: Honda Civic 2.2 CDTI 140 hp
Documented period: from 2006

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before fitting, identify and rectify the cause of the previous failure. Check the lubrication circuit, the oil supply and return d, as well as the cleanliness of all pipes.

Check the inlet for foreign objects. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions.

A lubrication fault that is not rectified may result in the turbocharger failing again.

How do you identify the correct turbo?

Check the part number marked on the original turbo d, the OEM and manufacturer part numbers, as well as the make, model, engine type, power output,Year and the engine code. A similar engine specification is not always sufficient to confirm compatibility, particularly where there is a difference in displacement between the title and the specification.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the part number clearly visible on your turbocharger.

Product Details
753708
Hybrid
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
