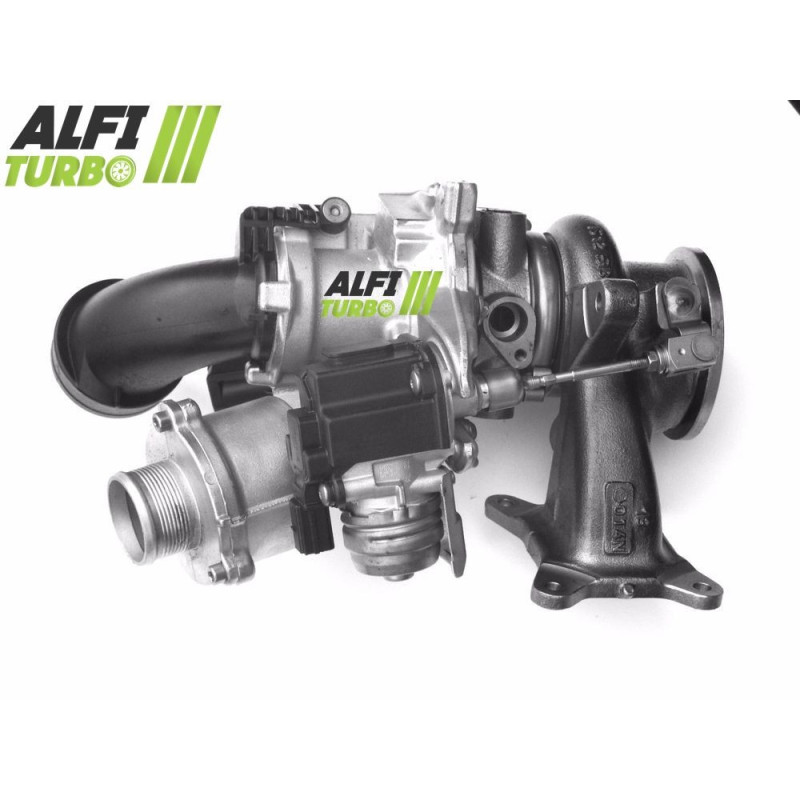

This hybrid turbo for petrol engines 2.0 TFSI is available in various forms Stage 1 and Stage 2. Its assembly plug & play enables a Installation without modification external, whilst its MFS compressor wheel Performance and its 360° stop meet the requirements d'suitable engine preparation'.
The documented applications include, in particular, several models Audi, , SEAT, Škoda and Volkswagen ranging from 180 to 230 hp. Compatibility must always be confirmed using the turbo’s part number d'origin and engine code'.
This configuration uses an MFS compressor wheel that is lighter, larger and taller than the wheel d'origin'. Its design is intended to increase compression capacity and flow rate d'air, subject to' d'engine management and d'peripheral components that are correctly fitted'.
The Stage 2 incorporates a compressor wheel oversized to a casing d're-profiled intake'. This configuration alters the aerodynamic behaviour of the compressor and its potential capacity to move air, although it does not, on its own, guarantee a specific engine power output.
A hybrid turbocharger is based on a turbocharger design that has been adapted to accommodate components or machining processes that differ from the standard configuration d'origin'. Depending on the stage of preparation, the modifications may relate to the compressor wheel, its dimensions, the geometry of the blades, the casings, the thrust bearing or the balancing.
The aim is d'adjust the compression capacity and flow rate' d'air to meet needs' d'engine tuning'. A hybrid turbo is therefore not defined solely by the appearance of its compressor wheel, but by the coherence of its components and mechanical modifications.
MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process does not, on its own, guarantee an increase in throughput d'air'. A standard MFS wheel can retain a geometry equivalent to that d'origin'.
An MFS wheel Performance may adopt a specially designed geometry for the preparation objective. On this product, the wheel shown is lighter, larger and taller than the one d'origin; the Stage 2 also receives a version oversized with re-profiling of the casing d'admission'.
A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air'. A higher flow rate can contribute to growth d'greater power when the engine is properly prepared and correctly tuned'.
The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades influence its aerodynamic behaviour and the amount d'the amount of air it can move under certain conditions'.
The result also depends on the compressor housing, the turbine section, the boost pressure and the engine tuning. A larger wheel does not automatically guarantee better performance and may affect response time and range d'optimal use'.
Both courses offer d'a 360° bearing stop, designed for distribute the axial forces around the axis. This component helps the turbocharger to adapt to operating stresses, without making it immune to faults in assembly or lubrication.
The rotor is balanced at high speed, up to 150,000 rpm, on a Cimat VSR test bench. This balancing is designed to minimise vibrations and mechanical stresses, but does not compensate for a faulty oil supply, contaminated pipes or the presence of d'a foreign body'.
The engine management system needs to be adjusted for make proper use of the features d'a hybrid turbo'. The wastegate adjustment and boost pressure management must be carried out with precision.
Depending on the level of preparation: fuel injection, exhaust, air cooling d'The intake system, engine mapping and the clutch or gearbox may need to be checked or adjusted'. A turbocharger on its own does not guarantee a power increase without the appropriate engine set-up.
⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY
Before installation, identify and rectify the cause of the previous fault. Check the lubrication circuit, the supply and the return d'the oil and the cleanliness of all the pipes'.
Check the intake and ensure there are no foreign objects present. Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions. Adjusting the wastegate and modifying the engine management system must be carried out by a qualified professional.
If a lubrication fault is not rectified, it may lead to the turbocharger failing again.
Check the part number marked on the turbocharger d'origin and compare it with the OEM and manufacturer part numbers listed on this sheet'. Also check the make, model, generation, body style, engine type and power output in hp, the years of manufacture and the engine code. Having the same motor does not always guarantee compatibility.
⚠️ Check your turbo’s part numbers
Before placing your order, Compare the part number on your turbocharger d'origin' using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.
If you are in any doubt, please contact us, quoting the reference number clearly visible on your turbo d'origin and vehicle details'.
