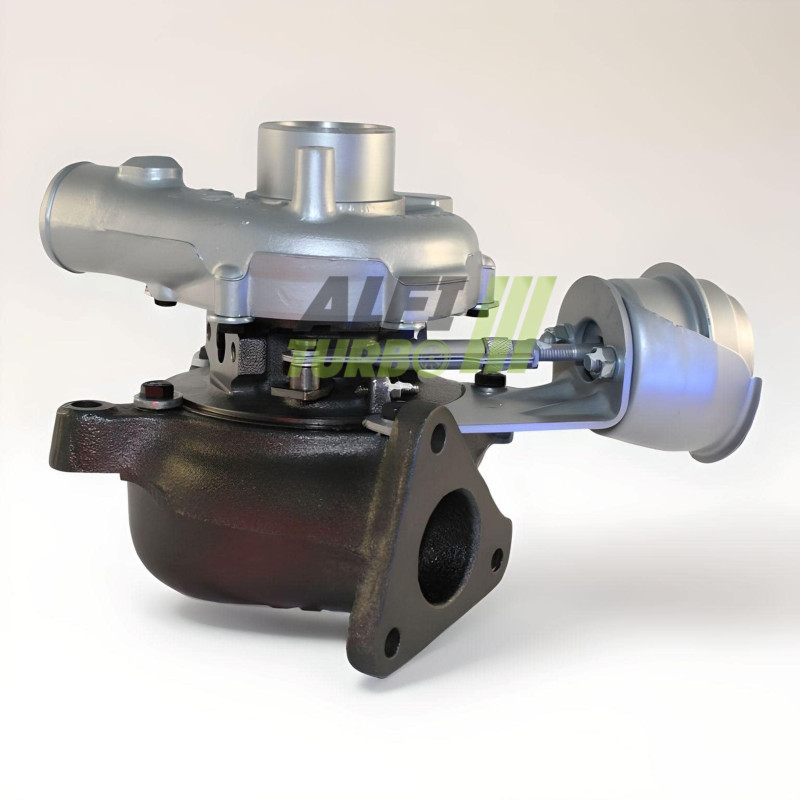

Hybrid Turbo plug & play (installation without modification)
Stage 1
Compressor wheel big dmFS 32.94/49.00mm, 6+6 Performance design, D170
360-degree bearing
High-speed balance (150 000 laps/m) on Cimat VSR bench
Stage 2
Compressor wheel MFS* big doversized orbit, 36.77/52.19mm 11+0 Performance design D210
Re-profiled housing to accommodate new oversized wheel
360-degree bearing
High-speed balance (150 000 laps/m) on Cimat VSR bench
Stage 2+
Compressor wheel MFS* big doversized orbit, 39.61/56.02mm 11+0 Performance design, D250
Re-profiled housing to accommodate new oversized wheel
360-degree bearing
High-speed balance (150 000 laps/m) on Cimat VSR bench
----------
To achieve this level of power, you also need to adjust your systems d'injection, d'exhaust, cooling and engine calculator. Adjustment of the wastegate must be made during the installation and retrieval of the calculator.
----------
OEM Reference
028145702A, 028145702AV, 028145702AX, 028145702H, 028145702HV, 028145702HV225, 028145702HV500, 028145702HX, 038145702HV, 038145702HV, 038145702HX, 038145702K, 038145702KV, 038145702KX, 038145702LX,
Manufacturer reference
454231-0001, 454231-0003, 454231-0004, 454231-0005, 454231-0007, 454231-1, 454231-3, 454231-4, 454231-5, 454231-5007S, 454231-7, 761437-0001, 761437-0003, 761437-0005, 761437-1, 761437-3, 761437-5,
Compatible vehicle
Audi
A4 BEFORE Serie 1 PHASE 2 1.9 TDI 115 starting in 1998
A4 BEFORE Serie 2 1.9 TDI 100 116 from 1998 onwards
A4 BEFORE Serie 2 PHASE 2 1.9 TDI 116 from 1998 onwards
A4 Serie 2 1.9 TDI 100 116 from 1998 onwards
A4 Serie 2 PHASE 2 1.9 TDI 116 from 1998 onwards
A6 1.9 TDI 100 110 115 from 1998
Skoda
SUPER B 1.9 TDI 105 115 from 1998 onwards
VolksWagen
Passat B4 1.9 TDI 115 starting in 1998
Passat B5 1.9 TDI in the united states, the share of women in the labour force increased from 36% in 1998 onwards
