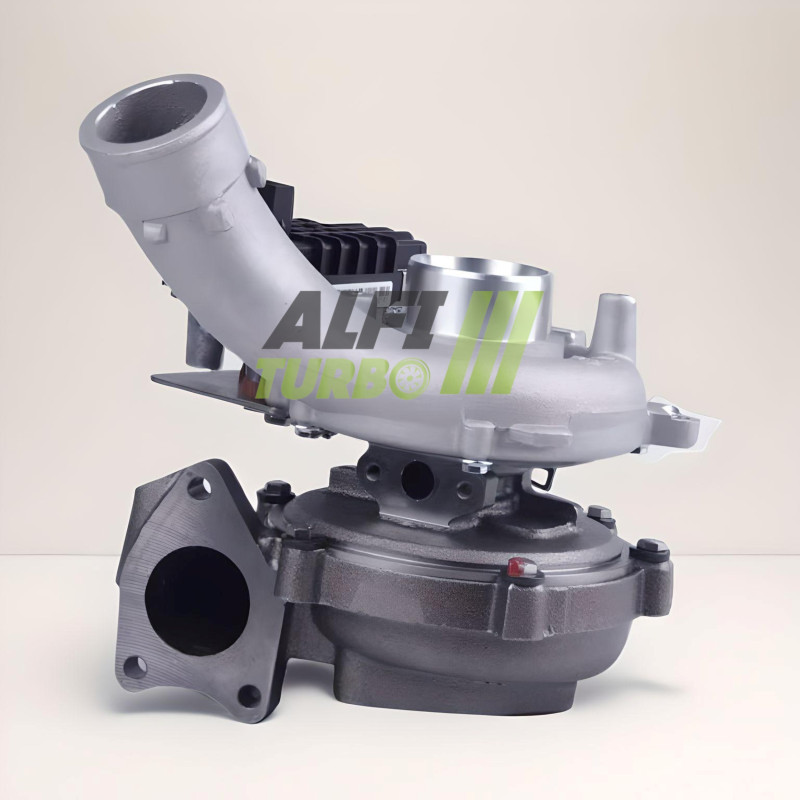

Hybrid Turbo 3.0 TDI 240 hp, 776469-0006, 769705-0008, 059145722L, 059145722S, 059145721B

  • Online only
Hybrid
HYB-400-J25
Year: Depending on the role, from June 2007 to May 2017
Power: 211, hp and 240 hp
displacement: 3.0 L TDI
Engine code: CAPA, CCLA, CCWA, CCWB, CPNB
Exchange
Gasket kit
Preparation course
€453.60 VAT included

378 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo for 3 engine options.0 TDI of 211 hp and 240 hp is available in three levels of preparation. Each configuration includes an MFS compressor wheel Performance with a 360° bearing stop and high-speed balancing on a Cimat VSR test bench.

The documented assignments relate to several Audi A4 B8, A5 and Q5. Compatibility must always be confirmed using the turbo’s part number dthe vehicle’s make, engine code and model.

Available products — Stage 1, Stage 2 and Stage 2+

Stage 1
Compressor wheel: MFS Performance high-speed
Dimensions: 44.39 / 60.01 mm
Blade configuration: 11+0
Stop: 360° bearing
Balancing: up to 150,000 rpm on a Cimat VSR test bench

This setup uses an MFS wheel Performance 44.39 / 60.01 mm. Its geometry is designed to adjust the flow rate d’compressor air, subject to dengine management and d’a suitable mechanical environment’.

Stage 2
Compressor wheel: MFS Performance high-speed oversized
Dimensions: 49.50 / 63.00 mm
Blade configuration: 6+6
Carter d’Admission:’ re-profiled for to receive the wheel oversized
Stop: 360° bearing
Balancing: up to 150,000 rpm on a Cimat VSR test bench

The Stage 2 is fitted with a larger wheel and a casing d’re-profiled intake’. These modifications are designed to adjust the airflow and compression, but may also alter the turbocharger’s response depending on the settings and conditions dUse.

Stage 2+
Compressor wheel: MFS Performance high-speed oversized
Dimensions: 49.70 / 67.40 mm
Blade configuration: 6+6
Carter d’Admission:’ re-profiled for to receive the wheel oversized
Stop: 360° bearing
Balancing: up to 150,000 rpm on a Cimat VSR test bench

The Stage 2+ adopts an MFS wheel Performance 49.70 / 67.40 mm including casing d’adapted admission’. This configuration can move more d’air under certain conditions, although this alone does not guarantee maximum power or improved performance for all uses.

What is a hybrid turbo ?

A hybrid turbo is based on a specially adapted turbocharger design for to receive internal components that differ from the configuration d’origin’. Depending on the design, modifications may relate to the compressor impeller, its dimensions, the geometry of the blades, the casings, the turbine impeller, the thrust bearing or the balancing.

The aim is d’adjust the compression capacity and flow rate’ dair. However, a hybrid turbo is not defined solely by the appearance of its impeller: it is the synergy between the components, the machining and the settings that determines its performance.

MFS compressor wheel: standard or Performance ? ?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This technology describes its manufacturing process and does not, on its own, guarantee an increase in throughput dair.

A standard MFS wheel can retain a geometry equivalent to that d’origin’. An MFS wheel Performance may have a diameter, profile or blade configuration suited to the intended purpose. A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more dair.

A higher flow rate can enable the engine to produce more power with the right set-up, although this does not guarantee an automatic increase in performance.

Why does the geometry of the blades affect the flow rate? d’air ?

The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades all influence its aerodynamic behaviour. The right geometry can move more dair within certain operating ranges.

The result also depends on the compressor housing, the turbine section, the boost pressure and the engine tuning. A larger wheel does not automatically guarantee better performance and may affect response time and range doptimal use.

Reliability and balancing of the hybrid turbocharger

The documented 360° stop distributes axial forces over a circular surface. It accommodates the operational stresses of the turbocharger without making it insensitive to a lack of lubrication, incorrect fitting or inappropriate adjustment.

Every work placement offers d’high-speed balancing up to 150,000 rpm on a Cimat VSR test bench’. This procedure helps to minimise vibrations and stresses on the rotor, but is no substitute for checking the circuits doil and d’admission’.

Engine remapping and tuning

Making the most of features dA hybrid turbo may require adjustments to the mapping, boost pressure and wastegate settings. Depending on the level of preparation: fuel injection, exhaust, air cooling dThe intake, clutch or gearbox must also be checked or adjusted. A turbocharger on its own does not guarantee any increase in power.

Turbo part numbers

OEM part numbers

059145722L
059145722LX
059145722LV
059145722S
059145722SX
059145722SV
059145721B
059145721BX
059145721BV

Manufacturer’s part numbers

769705-5008S
769705-8
769705-0008
769705-5007S
769705-7
769705-0007
769705-5006S
769705-6
769705-0006
776469-5005S
776469-5
776469-0005
776469-5004S
776469-4
776469-0004
776469-0006
776469-5006S
776469-6

Compatible vehicles and assignments

Audi
A4 Allroad B8 (8KH) — 240 hp
3.0 TDI diesel — April 2009 to January 2012
Engine code : CCWA
A4 B8 (8K2) — 211 hp
3.0 TDI diesel — June 2008 to May 2010
Engine code : CCWB
A4 B8 (8K2) — 240 hp
3.0 TDI diesel — November 2007 to March 2012
Engine codes: CAPA, CCLA, CCWA
A4 B8 Front (8K5) — 211 hp
3.0 TDI diesel — June 2008 to May 2010
Engine code : CCWB
A4 B8 Front (8K5) — 240 hp
3.0 TDI diesel — April 2008 to March 2012
Engine codes: CAPA, CCLA, CCWA
A5 (8T3) — 211 hp
3.0 TDI diesel — March 2008 to May 2010
Engine code : CCWB
A5 (8T3) — 240 hp
3.0 TDI diesel — June 2007 to March 2012
Engine codes: CAPA, CCWA
A5 Convertible (8F7) — 240 hp
3.0 TDI diesel — March 2009 to March 2012
Engine code : CCWA
A5 Sportback (8TA) — 240 hp
3.0 TDI diesel — September 2009 to March 2012
Engine code : CCWA
Q5 (8RB) — 211 hp
3.0 TDI diesel — November 2008 to September 2012
Engine code : CCWB
Q5 (8RB) — 240 hp
3.0 TDI diesel — November 2008 to May 2017
Engine codes: CCWA, CPNB

Additional technical specifications

Product type: hybrid turbo
Engine: 3.0 TDI
Fuel: diesel
Documented power ratings: 211 hp and 240 hp
Engine codes: CAPA, CCLA, CCWA, CCWB, CPNB
Editing: Installation without modification documented external

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Identify and rectify the cause of the previous fault before d’fit the turbo’. Check the lubrication circuit, the supply and the return d’oil, as well as the cleanliness of all the pipes.

Check the intake and ensure there are no foreign objects. Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions. The wastegate must be adjusted during the fitting and tuning of the engine management system.

If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the reference number engraved or marked on the turbocharger dthe original, then compare the OEM and manufacturer part numbers. Also check the make, model, generation, body style, engine type and power output in hp, the assembly period and the engine code. A single engine can be fitted with several different turbo set-ups.

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number on your turbocharger d’origin’ using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.

If you are in any doubt, please contact us with your turbo’s part number and the vehicle’s exact details.
