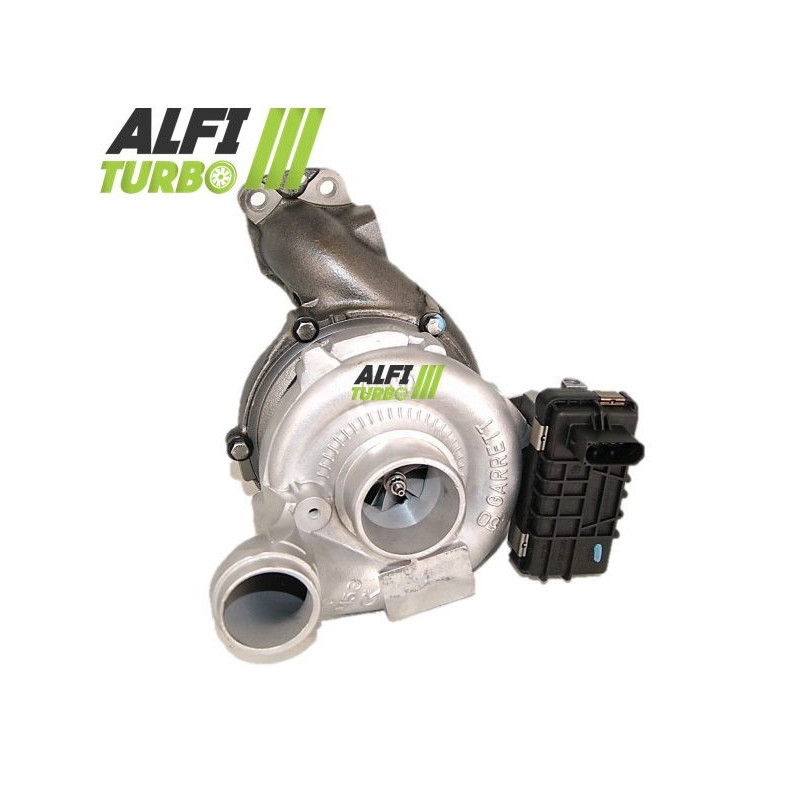

This hybrid turbo for 3 engine options.0 CRD and 3.0 CDI benefits from d'an internal mechanism designed to adjust the flow rate' d'air and compression capacity'. Depending on the configuration selected, the set comprises a high-flow MFS compressor impeller, a 360° bearing retainer and additional modifications to the impellers and casings.
The documented assignments relate in particular to several Jeep Grand Cherokee as well as Mercedes Class E, ML and Sprinter. Compatibility must be confirmed using the turbo’s part number d'origin'.
This preparation acts primarily on the compressor wheel whilst maintaining a configuration suitable for a Installation without modification documented external. The high-flow MFS impeller is designed to alter the compressor’s performance, subject to d'properly optimised engine management'.
The Stage 2 incorporates a compressor wheel oversized to a casing d're-profiled intake'. This adaptation makes it possible to d'accommodate the new geometry and may affect the vehicle's manoeuvrability' d'air flow and the turbocharger’s response'.
This procedure is carried out on the compressor and turbine sides. Reprofiling the two casings allows d'fit the oversized wheels as specified'. Its behaviour depends on the overall engine configuration and the settings applied.
A hybrid turbo is based on a specially adapted turbocharger design for to receive internal components that differ from the configuration d'origin'. Depending on the course, the preparation may cover the compressor wheel, the turbine wheel, the casings, the thrust bearing system and balancing.
The aim is d'adjust the compression capacity and flow rate' d'air'. However, a hybrid turbocharger is not defined solely by the appearance of its impeller: the geometry of its components and the overall coherence of the assembly determine its performance.
MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This term describes the manufacturing process, but does not in itself guarantee an increase in flow rate d'air'.
A standard MFS wheel can retain a geometry close to its original state. An MFS wheel Performance may be designed with a geometry suited to the application, with a specific profile, dimensions or blade configuration, provided that these characteristics are documented.
A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air'. A higher flow rate can help to increase power output when the engine and its management system are correctly matched, although this alone does not guarantee results.
The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades influence the aerodynamic behaviour of the compressor.
The right geometry can move more d'air under certain conditions'. The result also depends on the casings, the turbine wheel, the boost pressure and the engine tuning. A larger wheel does not automatically guarantee better performance and may affect response time and range d'optimal use'.
The 360° bearing stop, as documented in the three training courses, helps to distribute the axial forces within the turbocharger. It does not exempt d'proper lubrication nor d'a meticulous edit'.
The rotor is balanced at high speed – 150,000 revolutions per minute – on a Cimat VSR test bench, in order to minimise vibrations and mechanical stresses. This balancing does not protect the turbocharger against a fault d'oil supply, contamination or incorrect installation'.
It may be necessary to adjust the engine management system for make the most of the hybrid turbo’s features. Mapping, boost pressure and wastegate settings must be checked during tuning.
Depending on the level of preparation: fuel injection, exhaust, air cooling d'The intake, clutch or gearbox may also need to be checked or adjusted'. A hybrid turbo does not automatically guarantee a power boost without the right set-up.
⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY
Identify and rectify the cause of the previous fault before d'fit the turbo'. Check the lubrication circuit, as well as the supply and return lines d'oil'.
Check that the ducts and the intake are clean and free from foreign objects. Carry out the priming in accordance with the relevant guidelines and follow the vehicle manufacturer’s instructions.
If a lubrication fault is not rectified, it may lead to the turbocharger failing again.
Check the part number marked on the turbocharger d'origin and compare it with the OEM and manufacturer part numbers listed on this sheet'. Also check the make, model, generation, engine type and power output in hp, theYear the mounting code and the engine code, where available.
An identical engine does not always guarantee compatibility, as several different set-ups may be used on the same vehicle.
⚠️ Check your turbo’s part numbers
Before placing your order, Compare the part number on your turbocharger d'origin' using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.
If you are in any doubt, please contact us, quoting the reference number clearly visible on your turbocharger d'origin'.
Reference: ACG-441
Brand: ALFI TURBO ///
Year: From 2005 onwards, depending on the applicationPower: 190, 220, 223, 224 and 230 hpdisplacement: 3.0 LEngine code: Not specifiedWarranty: 2 years
Reference: AG20-A869
Brand: ALFI TURBO ///
Year: Not specifiedPower: 211 hpdisplacement: 3.0 lEngine code: Not specifiedWarranty: 2 years
Reference: GX20-300-869
Year: From 2005 onwards, depending on allocationPower: 190, 220, 223, 224 and 230 hpdisplacement: 3.0Engine code: Not specifiedWarranty: 2 years
