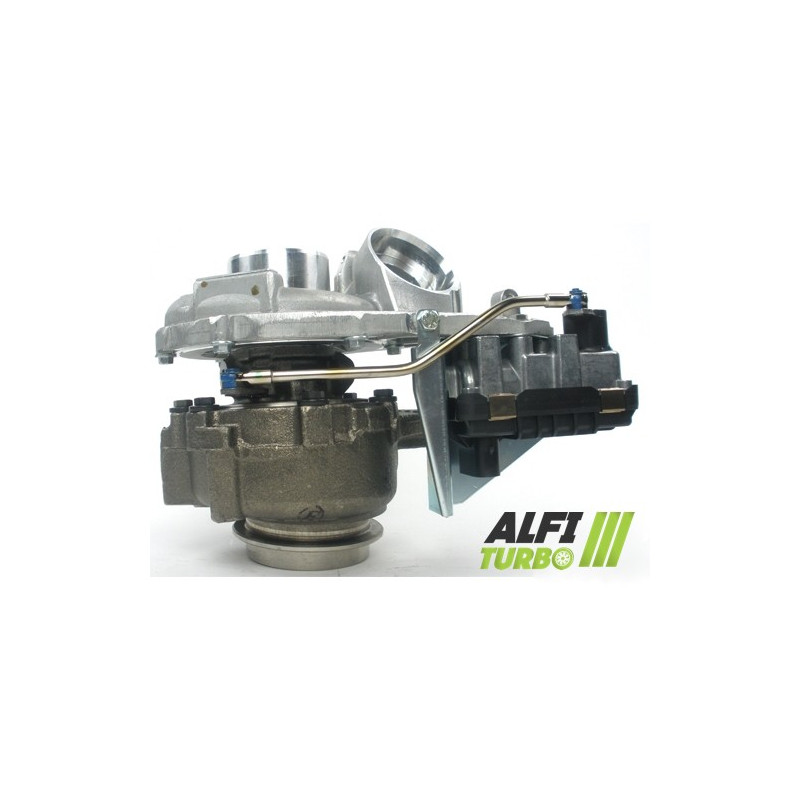

This hybrid turbo, designed for a range of Mercedes 200 CDI and 220 CDI is based on a planned architecture for one Installation without modification of the assembly. Depending on the configuration chosen, the design incorporates a high-flow MFS compressor wheel, a 360° bearing retainer and appropriate internal modifications.
The documented applications include, in particular, the following: Class C, CLC, CLK and Class E models fitted with the 2 engine.1 CDI, with power outputs ranging from 102 to 150 hp.
This adjustment is carried out on the compressor wheel in order to d'adjust the compression capacity and flow rate' d'air, whilst retaining a design intended to for the planned assembly.
The Stage 2 incorporates a compressor wheel oversized to a casing d're-profiled intake'. This modification is designed to accommodate the new geometry correctly and to adapt the compressor’s performance.
This version includes modifications to both the compressor and turbine sides. Combining these factors can affect flow rate and response time; their use must be consistent with the engine’s overall configuration.
A hybrid turbo uses a specially adapted turbocharger design for to receive internal components that differ from the configuration d'origin'. Depending on the course, the modifications may relate to the compressor wheel, the casings, the turbine wheel, the thrust bearing or the balancing.
The aim is d'adjust the compression capacity and flow rate' d'air'. However, a hybrid turbo is not defined solely by the appearance of its impeller: the geometry of the components, how they are assembled and the quality of the balancing are crucial factors.
MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process does not, on its own, guarantee an increase in throughput d'air'. A standard MFS wheel can retain a geometry equivalent to the original.
An MFS wheel Performance can be designed with a geometry suited to the preparation objective. The available data for this product indicates that it features a forged aluminium wheel, which is lighter, larger and taller than the one d'as originally designed, with a claimed 15 per cent higher compression capacity'.
A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air'. Higher power output can only be utilised effectively with appropriate engine tuning.
The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of the blades all influence its aerodynamic behaviour. The right geometry can move more d'air under certain conditions'.
The result also depends on the casings, the turbine wheel, the boost pressure and the engine management system. A larger wheel therefore does not automatically guarantee a better result and may affect the response time as well as the range d'optimal use'.
The 360° stop, as documented in the three training courses, distributes axial forces over a wide area. It must operate with adequate lubrication and does not protect the turbocharger against incorrect fitting or a fault d'oil supply'.
The rotor is the subject of d'high-speed balancing at 150,000 revs/m on a Cimat VSR test bench'. This process helps to minimise vibrations and mechanical stresses during operation.
The farm d'A hybrid turbo requires appropriate engine management'. Mapping, boost pressure and wastegate settings must be checked during remapping. Depending on the level of preparation, the fuel injection, exhaust, cooling, intake and transmission systems may also need to be checked or adjusted. A turbocharger on its own does not guarantee a power increase.
⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY
Identify and rectify the cause of the previous fault before d'fit the turbo'. Check the lubrication circuit, the supply and the return d'oil', as well as ensuring that all ducts are clean.
Check the intake and ensure there are no foreign objects present. Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions.
If a lubrication fault is not rectified, it may lead to the turbocharger failing again.
Check the part number on the turbocharger d'origin', then compare the OEM and manufacturer part numbers. Also check the make, model, generation, body style, engine type, power output, andYear the mounting code and the engine code, where available.
The fact that two motors are identical does not always guarantee compatibility, as there may be several different configurations for the same vehicle.
⚠️ Check your turbo’s part numbers
Before placing your order, Compare the part number on your turbocharger d'origin' using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.
If you are unsure about the fitment, please contact ALFI TURBO, quoting the full part number from your turbocharger.
Reference: ACG-175
Brand: ALFI TURBO ///
Year: From 2001 onwards, depending on allocationPower: 102, 122, 136 and 150 hpdisplacement: 2,., 1, CDI, depending on documented assignmentsEngine code: Not specifiedWarranty: 2 years
