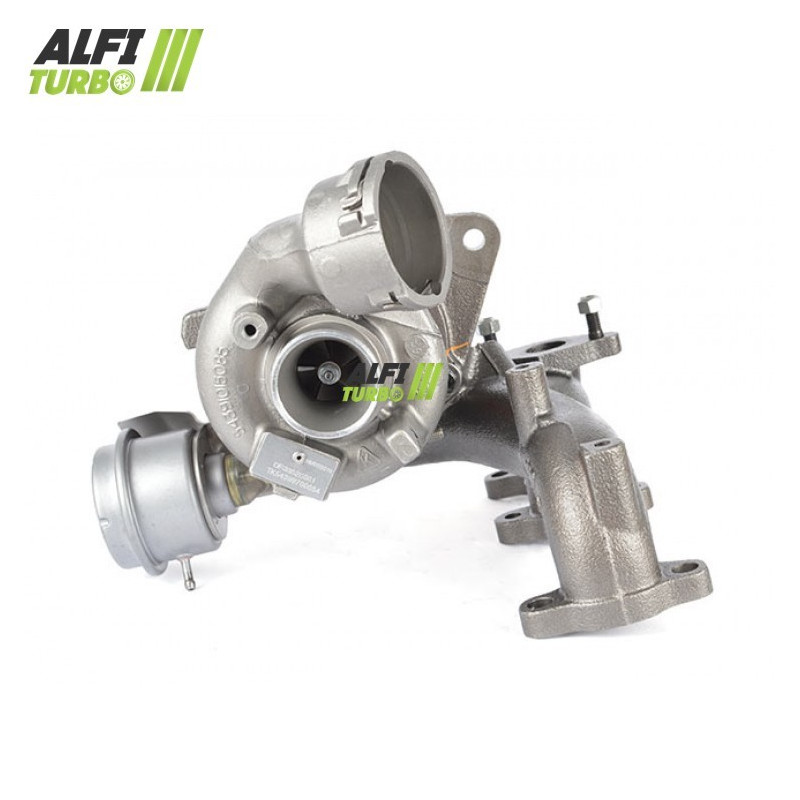

Hybrid Turbo 1.4 TDI 68 80 hp, 54399700054, 045253019J, 045253019JV, 045253019JX

  • Online only
  • On sale!
Hybrid
Hybrid Turbo 1.4 TDI 68 80 hp, 54399700054, 045253019J, 045253019JV, 045253019JX
  • Hybrid Turbo 1.4 TDI 68 80 hp, 54399700054, 045253019J, 045253019JV, 045253019JX
54399700054
Year: From 2001, end date unspecified
Power: 68 and 80 hp
displacement: 1.4 l
Engine code: Not specified
Gasket kit
Preparation course
€403.20 VAT included

336 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo for, with a 1., 4 TDI engine, rated at 68 and 80 hp, features d an internal modification designed to optimise d air flow.. Depending on the chosen specification, it combines a high-flow MFS compressor wheel, a 360° bearing retainer and reprofiled housings.

Documented applications cover several models Seat, Skoda and Volkswagen. . Installation is advertised as requiring no modifications, but to make full use of the turbo’s performance characteristics, appropriate engine tuning is required.

Available tuning packages — Stage 1, Stage 2 and Stage 3

Stage 1
Compressor wheel: MFS high-flow
Bearing: 360° thrust
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

This modification primarily affects the compressor impeller in order d to adapt its compression capacity and air flow rate d. Its performance depends on the engine configuration and the mapping used.

Stage 2
Compressor wheel: MFS high-flow oversized
d ’s intake housing: re-profiled for accommodate the new impeller
Bearing: 360° thrust
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

The Stage 2 combines a oversized compressor wheel with a d intake housing adapted. This configuration can move more d air under certain conditions, although the final power output cannot be determined independently of the engine tuning.

Stage 3
Compressor wheel: MFS high-flow oversized
d intake housing: reprofiled for to accommodate the new impeller
Bearing: 360° thrust
Turbine impeller: high-flow oversized
Turbine casing: re-profiled for ly to accommodate the new impeller
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

This modification affects both the compressor and turbine sides. Resizing the impellers and re-profiling the housings can alter both flow rate and response time; the result depends on the overall configuration.

What is a hybrid turbo?

A hybrid turbo is based on a turbocharger architecture designed for accommodate internal modifications. Depending on the upgrade package, these may involve the impellers, housings, thrust bearing and balancing.

The aim is d to adapt the compression capacity and air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its compressor wheel: its geometry, the adaptation of the housings and the overall coherence of the assembly are decisive.

MFS compressor wheel: standard or ‘ Performance ’?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow d. A standard MFS wheel may retain a geometry similar to that d of the original.

An MFS impeller Performance is based on a geometry tailored to the tuning objective. On this product, the impellers listed are described as high-flow models and, for for Stages 2 and 3, as oversized.

A standard MFS impeller can perform just as well as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d air. A higher flow rate can support an increase in power only with appropriate engine tuning.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and the arrangement of its blades influence its aerodynamic behaviour and the amount d of air it can move.

The result also depends on the casings, the turbine wheel, the boost pressure and the engine management system. A larger wheel therefore does not automatically guarantee better performance and may alter the turbocharger’s response time.

Reliability and balancing of the hybrid turbo

The 360° bearing stop present on each stage helps to distribute the axial forces exerted on the rotating assembly. It does not replace d'proper lubrication or d'correct installation.

High-speed balancing is carried out at 150,000 rpm on a Cimat VSR test bench to minimise vibrations and mechanical stresses on the rotor. This balancing cannot compensate for inadequate lubrication, contamination or incorrect installation.

Engine remapping and preparation

Adjustments to the mapping and boost pressure management are required for to make the most of the turbo’s characteristics. The wastegate must be adjusted during ECU reprogramming.

Depending on the level of tuning, the fuel injection, exhaust system, cooling system, intake system, clutch or gearbox must also be checked and, if necessary, adjusted. The hybrid turbo alone does not determine the engine’s final power output.

Turbo specifications

OEM part numbers

127788
1103838
045253019J
045253019JV
045253019JX
8900-2520
89002520

Manufacturer’s part numbers

54399700054
54399880054

Compatible vehicles and applications

Seat
Cordoba 4 — 80 hp
1.4 TDI — from 2002, end date unspecified
Engine code : unspecified
Ibiza 3 — 80 hp
1.4 TDI — from 2001, end date unspecified
Engine code : unspecified
Ibiza 4 — 80 hp
1.4 TDI — from 2008, end date unspecified
Engine code : unspecified
Skoda
Fabia Phase 2 Praktik — 68 hp
1.4 TDI — from 2002, end date unspecified
Engine code : unspecified
Fabia Phase 2 — 68 hp
1.4 TDI — from 2004, end date unspecified
Engine code : unspecified
Fabia Phase 2 Saloon — 68 hp
1.4 TDI — from 2004, end date unspecified
Engine code : unspecified
Fabia 2 — 80 hp
1.4 TDI — from 2006, end date unspecified
Engine code : unspecified
Roomster — 80 hp
1.4 TDI — from 2006, end date unspecified
Engine code : unspecified
Volkswagen
Polo 8 — 80 hp
1.4 TDI — from 2005, end date unspecified
Engine code : unspecified

Additional technical specifications

Product type: turbo hybrid
Engine: 1.4 TDI
Power: 68 and 80 hp
Engine codes: not specified
Installation: Installation without modification documented

Installation advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d, then check that all pipes are clean.

Check the intake and ensure that no foreign objects can reach the turbocharger. Carry out the priming procedure in accordance with the applicable recommendations and follow the manufacturer’s instructions.

Failure to rectify a lubrication fault may result in the turbocharger failing again.

How do you identify the correct turbocharger?

Check the part number marked on the original turbo d and compare it with the OEM and manufacturer part numbers in this data sheet. Also check the make, model, generation, body style, engine type, power output,Year and engine code where available.

An identical engine specification does not always guarantee compatibility, as there may be several different set-ups for for the same vehicle.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If you are unsure about the identification, please contact us with the full part number taken from your turbo.
