Hybrid Turbo Renault 1 2 TCIE 100 – 7701477904, 49173-07610. hp

  • Online only
Hybrid

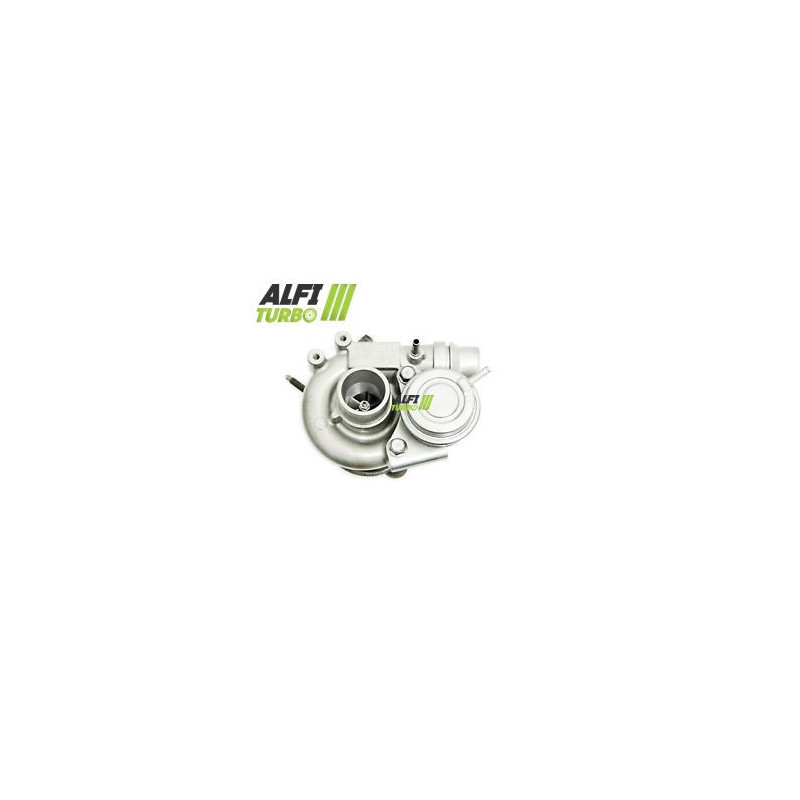

Hybrid Turbo 1.2 TCIE 100 hp, 49173-07610, 49173-07615, 7701477904, 8200526830
  • Hybrid Turbo 1.2 TCIE 100 hp, 49173-07610, 49173-07615, 7701477904, 8200526830
  • Hybrid Turbo 1.2 TCIE 100 hp, 49173-07610, 49173-07615, 7701477904, 8200526830
  • Hybrid Turbo 1.2 TCIE 100 hp, 49173-07610, 49173-07615, 7701477904, 8200526830
49173-07610
Year: From 2007
Power: 100 hp
displacement: 1,.,2
Engine code: Not specified
Preparation course
Exchange
€440.99 VAT included

367.49125 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo, designed for the following engines Renault, 1., 2TCIE 100 hp, undergoes internal tuning tailored to the selected package.. The documented modifications include, in particular, the high-flow MFS compressor wheel, the 360° thrust bearing and, depending on the package, the re-profiling of the housings as well as the turbine wheel.

Plans are in place for for several Renault Clio 3, Grand Modus, Modus, Twingo 2 and Wind models from 2007 onwards. Compatibility must always be confirmed using the original turbo’s part number d.

Available upgrades — Stage 1, Stage 2 and Stage 3

Stage 1
MFS high-flow compressor wheel
360° thrust bearing
High-speed balancing at 150,000 rpm on a Cimat VSR test bench

This modification is applied to the compressor impeller to d’adjust the compression capacity and d’air flow, whilst maintaining the d’system configuration plug & play.

Stage 2
MFS high-flow compressor impeller oversized
d’ intake housing has been re-profiled for accommodate the new impeller
360° thrust bearing
High-speed balancing at 150,000 rpm on a Cimat VSR test bench

The reprofiling of the housing allows d’integrate the compressor impeller oversized. This configuration can move more d’air under suitable conditions, though it does not, on its own, guarantee the final power output.

Stage 3
High-flow MFS compressor wheel oversized
d’s intake housing has been re-profiled for to accommodate the new impeller
360° thrust bearing
High-flow turbine impeller oversized
for ’s re-profiled turbine housing to accommodate the new impeller
High-speed balancing at 150,000 rpm on a Cimat VSR test bench

This modification combines changes to the compressor side with a oversized turbine wheel and a. re-profiled turbine housing. The resulting performance depends on the overall engine configuration and the settings applied.

What is a hybrid turbo?

A hybrid turbo retains an architecture suited to the vehicle whilst incorporating targeted internal modifications. Depending on the upgrade package, these may involve the compressor wheel, the housings, the turbine wheel, the thrust bearing and balancing.

The aim is dto adapt the compression capacity and the air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its compressor wheel: its geometry, the machining of the housings and the overall coherence of the unit are decisive.

MFS compressor wheel: standard or ‘ Performance ’?

MFS stands for ‘Milled From Solid’ and refers to a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow d.

A standard MFS impeller may retain a geometry equivalent to that of the original d. An MFS Performance impeller can be given a geometry tailored to the modification, for example a different blade profile, height, width or diameter, where such modifications are planned.

A standard MFS impeller can be just as efficient as a custom- Performance MFS impeller. It is not its appearance that determines its performance, but its geometry and its ability to move more dair. A higher airflow can only be utilised with appropriate engine tuning.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and blade arrangement influence its aerodynamic behaviour. A suitable geometry can move more dair under certain conditions, but the result also depends on the housings, the turbine, the boost pressure and the engine tuning. A larger impeller therefore does not automatically guarantee better performance and may alter the response time.

Reliability and balancing of the hybrid turbo

The documented 360° thrust bearing distributes axial forces around the shaft. It helps the bearing adapt to operating stresses, without making the turbocharger immune to lubrication or assembly faults.

The rotor is balanced at high speed, up to 150,000 rpm, on a Cimat VSR test bench. This process aims to minimise vibrations and mechanical stresses during rotation.

Engine remapping and preparation

The mapping and boost pressure management must be adjusted for to make the most of the hybrid turbo’s characteristics. Fuel injection, the exhaust system, cooling, the clutch or the transmission may also require adjustment depending on the level of tuning. The wastegate must be adjusted when remapping the ECU.

Turbo part numbers

OEM part numbers

7.701.477.904
7701477904
8.200.526.830
8200526830

Manufacturer’s part numbers

49173-07610
49173-07615
49173-07621
4917307610
4917307615
4917307621

Compatible vehicles and assignments

Renault
Clio 3 — 1.2 TCIE100 hp
From 2007 — endunspecified
Engine code : unspecified
Clio 3 Phase 2 — 1.2 TCIE 100 hp
From 2007 — end unspecified
Engine code : unspecified
Grand Modus — 1.2 TCIE 100 hp
From 2007 — end unspecified
Engine code : unspecified
Modus — 1.2 TCIE 100 hp
From 2007 — end unspecified
Engine code : unspecified
Modus Phase 2 — 1.2 TCIE 100 hp
From 2007 — end unspecified
Engine code : unspecified
Twingo 2 — 1.2 TCIE 100 hp
From 2007 — end unspecified
Engine code : unspecified
Twingo 2 Phase 2 — 1.2 TCIE 100 hp
From 2007 — end unspecified
Engine code : unspecified
Wind — 1.2 TCIE 100 hp
From 2007 — end unspecified
Engine code : unspecified

Additional technical specifications

Product type: Hybrid Turbo
Engine: 1,., 2 TCIE
Power: 100 hp
Documented period: From 2007
Installation: Configuration plug & play, no modifications required d’ installation

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d. Check that the pipes are clean, the inlet and that there are no foreign objects present. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the turbo’s part number d, the original, OEM and manufacturer part numbers, as well as the model, generation, engine type, power output,Year and engine code.. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the part number from your turbocharger.

Product Details
49173-07610
Hybrid
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
