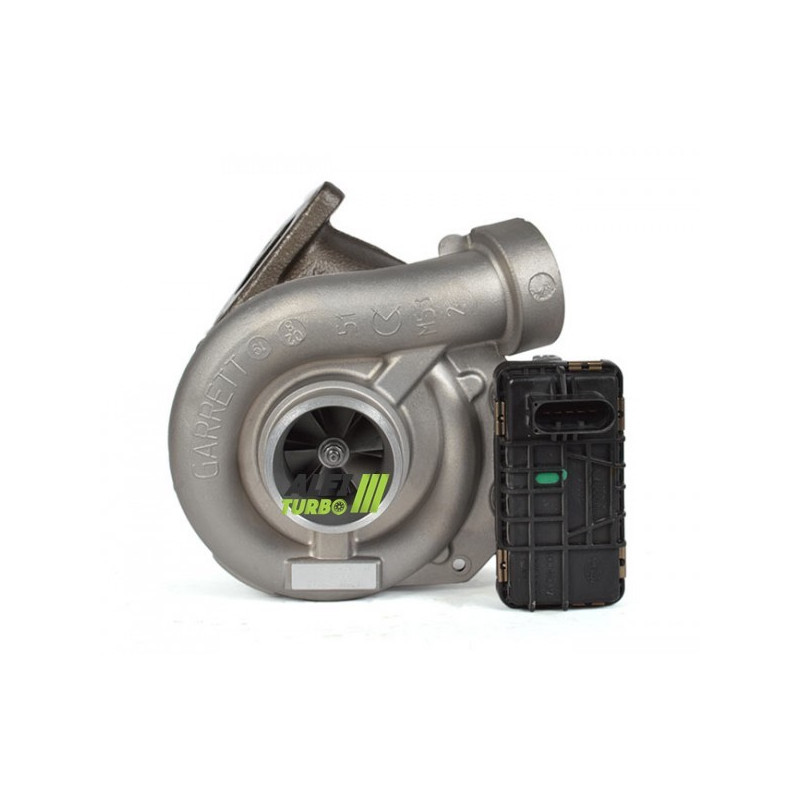

This hybrid turbo for, available for the following engines: Mercedes 3.2 CDI, is offered with three documented tuning levels.. Depending on the tuning package chosen, the modifications include the high-flow MFS compressor wheel, the casings and, for for the Stage 3, the turbine section.
It is designed for E280, E320 and S320 applications with 177 or 204 hp as indicated below. Its configuration plug & play allows for external Installation without modification, subject to precise verification of the original turbo’s part number d.
This modification is applied to the compressor impeller to d'adjust the compression capacity and d'air flow rate, whilst maintaining a balanced mechanical configuration.
The reprofiling of the housing allows d to accommodate the compressor impeller oversized. This modification may alter the air flow d and the turbocharger’s response depending on the engine configuration.
This modification is carried out on both the compressor and turbine sides of the.. The final performance depends on the overall configuration, in particular the engine management system, the intake and the exhaust.
A hybrid turbo utilises a turbocharger architecture adapted for to accommodate modified internal components. Depending on the upgrade stage, the modification may involve the compressor wheel, the housings, the turbine wheel, the thrust bearing or balancing.
The aim is d to adapt the compression capacity and air flow rate d. A hybrid turbo is not defined solely by the appearance of its impeller: the geometry of the components and how they work together determine its performance.
MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow rate d. A standard MFS wheel may retain a geometry equivalent to that d of the original.
An MFS wheel Performance can be given a geometry tailored to the tuning objective. For this product, the wheel is described as lighter, larger and taller than the d original, with an advertised 15 per cent increase in compression capacity.
A standard MFS impeller can perform just as well as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d air. A higher airflow can only be fully utilised with appropriate engine tuning.
The diameter of the compressor impeller, as well as its profile, the height, width and arrangement of its blades all influence the intake and compression of air. The result also depends on the casings, the turbine wheel, the boost pressure and the engine calibration. A larger wheel therefore does not automatically guarantee better performance and may alter the response time.
The 360° stop, documented at each stage, helps to distribute axial forces. However, it does not replace d'proper lubrication or d'correct installation.
The assembly is balanced at high speed, up to 150,000 rpm, on a Cimat VSR test bench. This balancing is designed to minimise vibrations and mechanical stresses on the rotor.
The engine mapping and boost pressure management must be adjusted for to make the most of the turbo’s characteristics. The fuel injection, exhaust, cooling, intake and transmission must be checked or adjusted depending on the level of tuning. The wastegate must be adjusted when remapping the ECU. No power gain is automatic without a coherent configuration.
⚠️ WARNING — IMPORTANT BEFORE INSTALLATION
Identify and rectify the cause of the previous fault. Check the lubrication circuit, the oil supply and return lines d, then check that the pipes and inlet are clean and free from foreign objects.. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions.. A lubrication fault that is not rectified may lead to further turbocharger failure.
Check the turbo’s part number d, the original OEM and manufacturer part numbers, as well as the model, generation, body style, engine type, power output,Year and engine code.. An identical engine type does not always guarantee compatibility.
⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine specification does not always guarantee compatibility.
If you are unsure about the identification or fitment, please contact us before placing your order.
