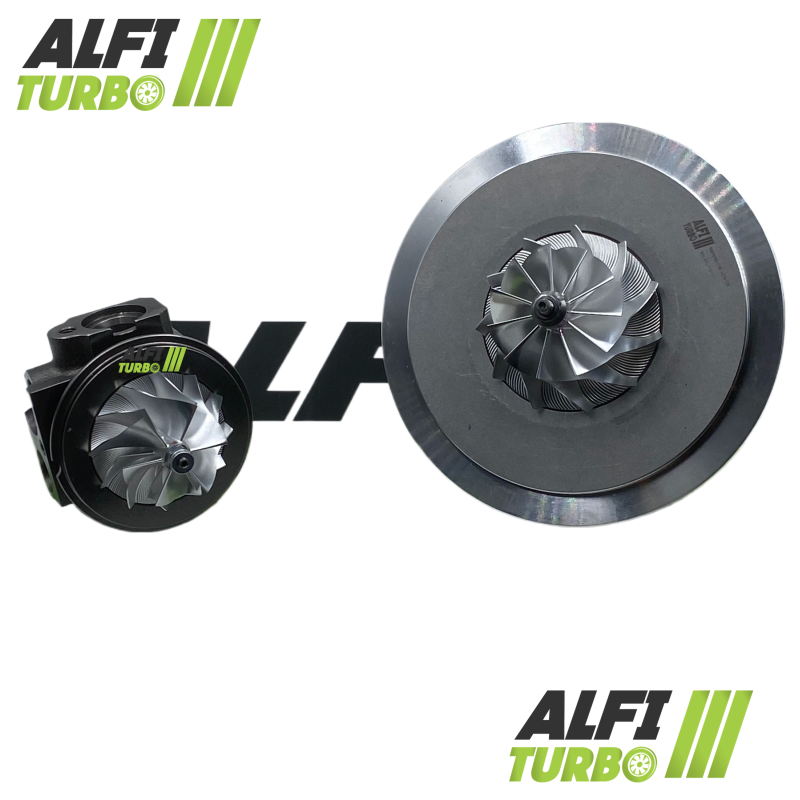

This hybrid centre cartridge is designed for a turbocharger fitted to a 1.6 HDI engine producing 110 hp, provided the part numbers match exactly. This is d’ an Cartridge comprising the main rotating components and the bearing assembly, and not d’ a complete turbocharger.
The specifications of the hybrid kit, the wheel dimensions and any modifications to the casings are not specified. Therefore, no tuning stage or final power output can be attributed to this product.
Principle of the hybrid conversion
A hybrid Cartridge is based on an architecture adapted to internal modifications that may involve the compressor wheel, the blade geometry, the turbine wheel, the thrust bearing system or the balancing. The aim may be to alter the compression capacity and the air flow rate d. As the exact nature of these modifications is not documented here, their presence should not be assumed.
MFS compressor impeller: standard or ‘ Performance ’?
MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. A standard MFS wheel may retain a geometry equivalent to that dof the original, whilst a ‘ Performance ’ version may feature a profile tailored to a specific tuning objective. A standard MFS wheel can be just as shiny as an MFS Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d’air. However, no specific MFS technology is indicated for for this Cartridge.
Geometry, balancing and engine tuning
The diameter of the compressor impeller, the profile, height, width and arrangement of the blades all influence its aerodynamic behaviour. The result also depends on the casings, the turbine impeller, the boost pressure and the engine management system. Adjustments to the mapping, fuel delivery, intercooling, the exhaust system or the transmission may be necessary depending on the configuration. Rotor balancing helps to minimise vibrations, though it cannot compensate for incorrect fitting or inadequate lubrication.
Turbo part numbers
753420
740821
9651839880
9657571880
9656125880
9657248680
9657531880
Compatible vehicles and assignments
No detailed vehicle specifications are documented. The only available information is the engine type: 1.6 HDI and 110 hp; this is insufficient to confirm compatibility.
Additional technical specifications
Product type: Cartridge turbo hybrid
Engine: 1,.,6 HDI
Power: 110 hp
Engine code: Not specified
Installation period: Not specified
Fitting instructions
⚠️ WARNING — IMPORTANT BEFORE INSTALLATION
Identify and rectify the cause of the previous fault. Check the oil supply and return lines d, then check that the oil lines dand dare clean. Inspect the housings and reused components, lubricate the Cartridge before the first start-up and follow the applicable procedures and tightening torques. A lubrication fault that is not rectified may result in the turbocharger failing again.
How do you identify the correct turbocharger?
First and foremost, check the part number marked on the original turbocharger d, then compare the engine type, power output, engine code and production period where available. An identical engine type does not always guarantee the compatibility of the Cartridge.
⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility. If in doubt, contact us with a clear photo of the identification plate d.
