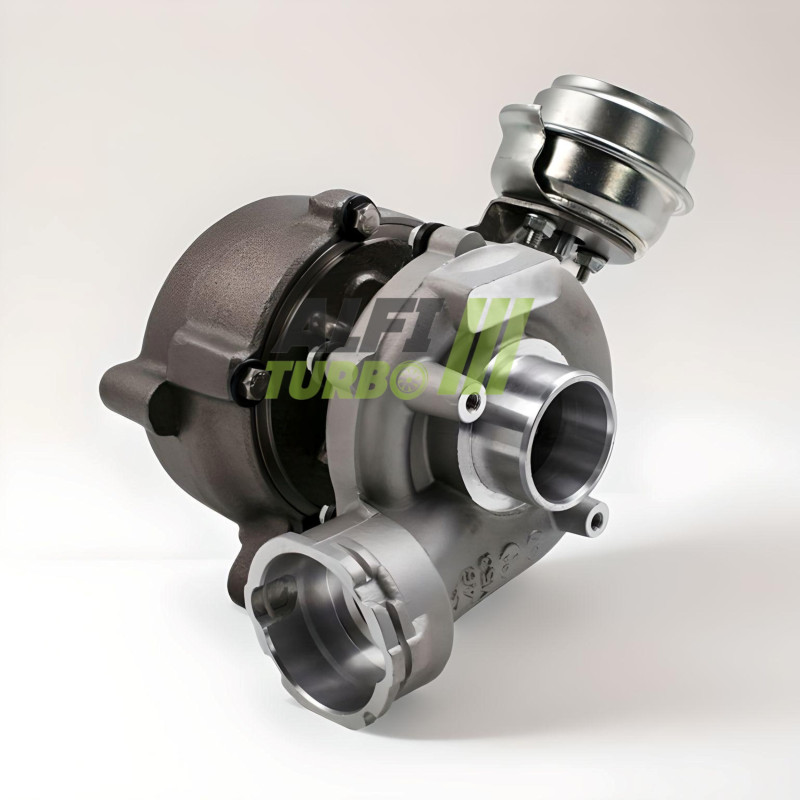

Hybrid Turbo 2.0 TDI 140 – 03G145702L, 758219-5002S hp

  • Online only
Hybrid
HYB-300-972
Year: From 2004
Power: 120, 121, 126, 136 and 140 hp
displacement: 2.0 TDI
Engine code: Not specified
Exchange
Gasket kit
Preparation course
€288.00 VAT included

240 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo for engine options 2.0 TDI benefits from d'an in-house product designed around' d'an MFS compressor wheel' Performance high-capacity. Three levels of preparation are documented in order to d'to adapt the dimensions and geometry of the compressor wheel to the desired objective'.

The applications listed include, in particular, several Audi A4 and A6, as well as the Volkswagen Passat B6. Compatibility must always be confirmed using the turbo’s part number d'origin'.

Available products — Stage 1, Stage 2 and Stage 2+

Stage 1

Compressor wheel: MFS Performance high-speed
Dimensions: 34.62 / 49.00 mm
Blade configuration: 6+6
Stop: 360°
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

This kit includes an MFS wheel Performance high flow rate, a 360° stop and high-speed balancing. The 6+6 geometry influences the compressor’s aerodynamic behaviour and its ability to move air.

Stage 2

Compressor wheel: MFS Performance high-speed oversized
Dimensions: 38.62 / 52.19 mm
Blade configuration: 11+0
Carter d'Admission:' re-profiled for to receive the new wheel
Stop: 360°
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

The Stage 2 is fitted with a wheel oversized 11+0 configuration. Reprofiling the casing d'admission allows' d'to accommodate this wheel and d'to adapt the air passage to its dimensions'.

Stage 2+

Compressor wheel: MFS Performance high-speed oversized
Dimensions: 39.61 / 56.02 mm
Blade configuration: 11+0
Carter d'Admission:' re-profiled for to receive the new wheel
Stop: 360°
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

This version uses a larger 11+0 wheel and a casing d'the intake has been re-profiled accordingly'. A larger wheel can affect not only the available flow rate, but also the response time and the range d'Optimal use of the turbocharger'.

What is a hybrid turbo ?

A hybrid turbo is based on a specially adapted turbocharger design for to receive internal components that differ from the configuration d'origin'. Depending on the modification, changes may relate to the compressor impeller, its dimensions, the geometry of the blades, the casings, the turbine impeller, the thrust bearing or the balancing.

The aim is d'adjust the compression capacity and flow rate' d'air'. However, a hybrid turbo is not defined solely by the appearance of its impeller: the compatibility between the impeller, the housings, the rotor and the engine management system remains crucial.

MFS compressor wheel: standard or Performance ? ?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process does not, on its own, guarantee an increase in throughput d'air'. A standard MFS wheel can retain a geometry equivalent to that d'origin'.

An MFS wheel Performance may have a geometry, profile, diameter or blade configuration suited to the intended purpose. For this product, the dimensions and configurations vary depending on the course selected.

A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air'. A higher flow rate can contribute to power output with the right engine tuning, although it does not in itself guarantee a performance gain.

Why does the geometry of the blades affect the flow rate? d'air?' ?

The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades all influence its aerodynamic behaviour. The right geometry can move more d'air under certain operating conditions'.

The result also depends on the compressor housing, the impeller and the turbine housing, the boost pressure and the engine tuning. A larger wheel therefore does not automatically guarantee better performance and may affect response time.

Reliability and balancing of the hybrid turbocharger

Each documented preparation is fitted with a 360° stop, designed for distribute the axial forces around the joint. It does not exempt d'proper lubrication or compliance with the installation requirements'.

The assembly is balanced at high speeds, up to 150,000 rpm, on a Cimat VSR test bench. This balancing process is designed to minimise vibrations and mechanical stresses on the rotor, but does not protect the turbocharger against a lack of lubrication, contamination or incorrect installation.

Engine remapping and tuning

Making use of characteristics d'A hybrid turbo requires appropriate engine management'. Mapping, boost pressure, fuel injection, air cooling d'The intake, exhaust, clutch and gearbox may need to be checked or adjusted, depending on the vehicle and the level of modification'.

The wastegate must be adjusted during the installation and remapping of the ECU. A hybrid turbo does not automatically guarantee a power increase without consistent tuning of the entire engine system.

Turbo part numbers

OEM part numbers

03G145702L
03G145702LV
03G145702LX
03G145702C
03G145702CV
03G145702CX
03G145702F
03G145702FV
03G145702FX
03G145702K
03G145702KV
03G145702KX

Manufacturer’s part numbers

758219-5002S
758219-5003S
758219-9003S
758219-5004S
758219-0002
758219-0003
758219-0004
758219-2
758219-3
758219-4

Compatible vehicles and assignments

Audi

A4 Series 2 Phase 2 — 121, 126 and 136 hp
2.0 TDI — from 2004, end date unspecified
Engine code : not specified
A4 Series 2 Phase 2 — 121, 126 and 140 hp
2.0 TDI — from 2004, end date unspecified
Engine code : not specified
A4 Series 2 Phase 2 — 140 hp
2.0 TDI — from 2004, end date unspecified
Engine code : not specified
A6 3 Series — 120, 136 and 140 hp
2.0 TDI — from 2004, end date unspecified
Engine code : not specified
A6 — 136 hp
2.0 TDI — from 2008, end date unspecified
Engine code : not specified

Volkswagen

Passat B6 — 140 hp
2.0 TDI — from 2005, end date unspecified
Engine code : not specified

Additional technical specifications

Product type: Hybrid Turbo
Engine: 2.0 TDI
Documented power ratings: 120, 121, 126, 136 and 140 hp
Documented periods: from 2004 onwards, depending on the allocation
Installation: configuration plug & play, without any changes to the setup

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Identify and rectify the cause of the previous fault. Check the entire lubrication circuit, including the supply and return lines d'oil', as well as the cleanliness of the ducts.

Check the intake and ensure there are no foreign objects present. Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions during assembly.

If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the part number marked on the turbocharger d'original', then compare it with the OEM and manufacturer part numbers listed on this sheet. Also check the make, model, generation, engine type and power output in hp, theYear the mounting code and the engine code, where available.

The fact that the motorisation is identical does not automatically guarantee compatibility: there may be several different configurations for the same vehicle.

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number on your turbocharger d'origin' using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.

If you are unsure about the product or how to fit it, please contact us before placing your order.

Product Details
HYB-300-972
0
Hybrid
Attachments
Download
