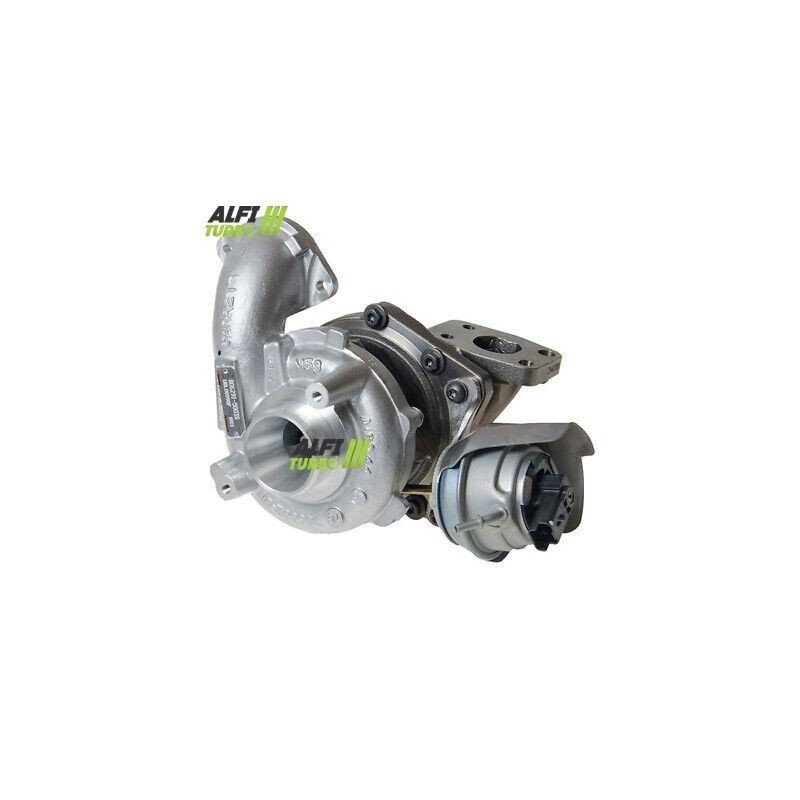

Turbo hybrid 1.6 HDI 112 115 hp, 0375P7, 0375P8, 9686120680, 968612068005, AV6Q6K682AA, 784011-5, 806291-1, 824060-5,

  • Online only
Hybrid
Turbo hybrid 1.6 HDI 112 115 hp, 0375P7, 0375P8, 9686120680, 968612068005, AV6Q6K682AA, 784011-5, 806291-1, 824060-5,
  • Turbo hybrid 1.6 HDI 112 115 hp, 0375P7, 0375P8, 9686120680, 968612068005, AV6Q6K682AA, 784011-5, 806291-1, 824060-5,
HYB-AG12-885

Year 2009-202X

Power 95, 112, 114, 115 hp

displacement 1.6 D HDI

Engine code  DV6C TED

Exchange
Gasket kit
Preparation course
€324.00 VAT included

270 tax excl.

Quantity

Description

Hybrid Turbo plug & play (installation without modification)

Stage 1

MFS 31 large flow compressor wheels.10/44.00mm, 6+6 Performance D160

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2

MFS compressor wheel* large oversized flow, 36.40/49.00mm, 6+6 Performance D200

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

Stage 2+

MFS compressor wheel* large oversized flow, 38.40/52.00mm , 6+6 Performance D230

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

----------

To achieve this level of power, you also need to adjust your injection, exhaust, cooling and engine calculator systems. The adjustment of the VNT shall be made during the installation and retrieval of the calculator.

----------

OEM Reference

968612068005, Y65013700, 0375P7, 0375P8, 31319528, 9686120680, 36001457, 968612068006, CV6Q6K682AA, CV6Q6K682AB, CV6Q6K682AC, 31836499, 36010156, AV6Q6K6844AA, RMAV6K682AA

Manufacturer reference

784011-0005, 784011-2005, 784011-5, 784011-5005S, 806291-0002, 806291-2, 806291-2002, 806291-5002S, 806291-5003S, 824060-0005, 824060-2005, 824060-5, 824060-5005S, 824060-5006S, 824060-5007S,

Vehicle assignment

CITROEN BERLINGO Box Body/MPV (B9) LCV 2010-07 DIESEL 9HL (DV6C), 9HR (DV6C) 112

CITROEN DS5 PC 2011-11 2015-07 DIESEL 9HR (DV6C) 112

CITROEN BERLINGO MULTISPACE (B9) PC 2012-02 DIESEL 9HR (DV6C) 114

CITROEN BERLINGO Box Body/MPV (B9) LCV 2012-02 DIESEL DV6CTED 114

CITROEN C3 II (SC_) PC 2009-11 DIESEL 9HR (DV6C) 112

CITROEN BERLINGO MULTISPACE (B9) PC 2010-07 DIESEL 9HL (DV6C), 9HR (DV6C) 112

CITROEN C4 GRAND PICASSO I (UA_) PC 2010-09 2013-08 DIESEL 9HR (DV6C) 112

CITROEN C3 PICASSO (SH_) PC 2010-05 DIESEL 9HR (DV6C) 112

CITROEN C4 II Hatchback Van (NC_) LCV 2009-11 DIESEL 9HR (DV6C) 111

CITROEN C4 GRAND PICASSO II (DA_, DE_) PC 2013-09 DIESEL 9HC (DV6C), BHX (DV6FC) 115

CITROEN C4 AIRCROSS PC 2012-04 DIESEL 9HD (DV6C) 114

CITROEN C3 PICASSO (SH_) PC 2013-01 DIESEL 9HD (DV6C) 114

CITROEN C4 AIRCROSS PC 2012-05 DIESEL 9HL (DV6C) 114

CITROEN DS3 (SA_) PC 2009-11 2015-07 DIESEL 9HR (DV6C) 112

CITROEN BERLINGO MULTISPACE (B9) PC 2010-07 DIESEL 9HR (DV6C) 114

CITROEN BERLINGO Box Body/MPV (B9) LCV 2010-07 DIESEL 9HL (DV6C) 114

CITROEN C4 II (NC_) PC 2009-11 DIESEL 9HR (DV6C) 112

CITROEN C5 III Break (RW_) PC 2012-01 DIESEL 9HL (DV6C), 9HR (DV6C) 114

CITROEN DS3 (SA_) PC 2012-08 2015-07 DIESEL 9HD (DV6C) 114

CITROEN C3 II (SC_) PC 2012-09 DIESEL 9HD (DV6C) 114

CITROEN C4 II (NC_) PC 2012-07 DIESEL 9HD (DV6C) 114

CITROEN C4 II Saloon (NC_) PC 2013-08 DIESEL 9HD (DV6C), 9HR (DV6C) 115

CITROEN C4 PICASSO II PC 2013-02 DIESEL 9HC (DV6C), BHX (DV6FC) 115

CITROEN C5 III (RD_) PC 2012-01 DIESEL 9HL (DV6C), 9HR (DV6C) 114

CITROEN DS4 (NX_) PC 2012-08 2015-07 DIESEL 9HD (DV6C) 114

CITROEN DS5 PC 2012-06 2015-07 DIESEL 9HD (DV6C) 114

CITROEN DS4 (NX_) PC 2011-04 2015-07 DIESEL 9HR (DV6C) 112

CITROEN C4 PICASSO I MPV (UD_) PC 2010-09 2013-08 DIESEL 9HR (DV6C) 112

CITROEN C5 III (RD_) PC 2010-07 DIESEL 9HL (DV6C), 9HR (DV6C) 112

CITROEN C5 III Break (RW_) PC 2010-07 DIESEL 9HL (DV6C), 9HR (DV6C) 112

DS DS 5 (KF_) PC 2015-06 2018-12 DIESEL (DV6C) 116

Ford GRAND C-MAX Van LCV 2010-12 2019-06 DIESEL T1DA, T1DB 115

Ford MONDEO IV Saloon (BA7) PC 2010-12 2015-01 DIESEL T1BA, T1BB, T1BC 115

Ford C-MAX II Van LCV 2010-12 2019-06 DIESEL T1DA, T1DB 115

Ford FOCUS III PC 2012-05 2015-07 DIESEL NGDA, NGDB 105

Ford FOCUS III Hatchback Van LCV 2012-02 2017-12 DIESEL T1DA, T1DB 115

Ford TRANSIT CONNECT MPV PC 2013-02 DIESEL T1GA 115

Ford FOCUS III Turnier PC 2012-05 2015-07 DIESEL NGDA, NGDB 105

Ford GALAXY II (WA6) PC 2011-02 2015-06 DIESEL T1WA, T1WB 115

Ford TOURNEO CONNECT / GRAND TOURNEO CONNECT PC 2013-09 DIESEL T1GA 115

Ford TRANSIT CONNECT V408 Box Body/MPV LCV 2013-02 DIESEL T1GA 115

Ford FOCUS III PC 2010-07 2017-12 DIESEL T3DA, T3DB 095

Ford FOCUS III Turnier PC 2010-07 2020-02 DIESEL T3DA, T3DB 095

Ford FOCUS III Turnier PC 2010-07 2020-02 DIESEL T1DA, T1DB 115

Ford MONDEO IV (BA7) PC 2011-02 2015-01 DIESEL T1BA, T1BB, T1BC 115

Ford C-MAX II (DXA/CB7, DXA/CEU) PC 2010-12 2019-06 DIESEL T3DA, T3DB 095

Ford C-MAX II (DXA/CB7, DXA/CEU) PC 2010-12 2019-06 DIESEL T1DA, T1DB 115

Ford GRAND C-MAX (DXA/CB7, DXA/CEU) PC 2010-12 2019-06 DIESEL T3DA, T3DB 095

Ford GRAND C-MAX (DXA/CB7, DXA/CEU) PC 2010-12 2019-06 DIESEL T1DA, T1DB 115

Ford FOCUS III Saloon PC 2010-07 2020-02 DIESEL T3DA, T3DB 095

Ford FOCUS III Saloon PC 2010-07 2020-02 DIESEL T1DA, T1DB 115

Ford S-MAX (WA6) PC 2011-02 2014-12 DIESEL T1WA, T1WB 115

Ford MONDEO IV Turnier (BA7) PC 2011-02 2015-01 DIESEL T1BA, T1BB, T1BC 115

Ford FOCUS III PC 2010-07 2017-12 DIESEL T1DA, T1DB 115

Mazda 5 (CW) PC 2010-07 DIESEL Y650, Y655, Y6Y1 116

Peugeot 2008 I (CU_) PC 2013-03 DIESEL 9HD (DV6C) 114

Peugeot 308 SW II (LC_, LJ_, LR_, LX_, L4_) PC 2014-03 2021-06 DIESEL 9HC (DV6C), BHX (DV6FC), BHZ ( 115

Peugeot 308 CC (4B_) PC 2009-06 2014-12 DIESEL 9HR (DV6C) 112

Peugeot FIND 207 (WA_, WC_) PC 2009-08 2012-12 DIESEL 9HR (DV6C) 112

Peugeot 207 CC (WD_) PC 2009-08 2013-10 DIESEL 9HR (DV6C) 112

Peugeot 207 SW (WK_) PC 2009-08 2013-10 DIESEL 9HR (DV6C) 112

Peugeot 3008 MPV (0U_) PC 2013-03 2016-08 DIESEL 9HD (DV6CTED) 114

Peugeot 308 I (4A_, 4C_) PC 2009-12 2014-10 DIESEL 9HR (DV6C) 112

Peugeot 308 SW I (4E_, 4H_) PC 2009-12 2014-10 DIESEL 9HR (DV6C) 112

Peugeot 508 I (8D_) PC 2012-02 2018-12 DIESEL 9HD (DV6CTED) 115

Peugeot 3008 MPV (0U_) PC 2009-12 2016-08 DIESEL 9HR (DV6C) 112

Peugeot 508 SW I (8E_) PC 2012-02 2018-12 DIESEL 9HL (DV6C), 9HR (DV6C) 115

Peugeot 508 SW Estate Van (8E_) LCV 2013-03 2018-12 DIESEL 9HL (DV6C) 114

Peugeot PARTNER Box Body/MPV LCV 2010-08 DIESEL 9HL (DV6C) 111

Peugeot PARTNER TEPEE PC 2010-08 DIESEL 9HL (DV6C) 112

Peugeot 308 CC (4B_) PC 2013-03 2014-12 DIESEL 9HD (DV6C) 114

Peugeot 4008 PC 2012-05 DIESEL 9HD (DV6C) 114

Peugeot 308 I (4A_, 4C_) PC 2013-03 2014-10 DIESEL 9HD (DV6C), 9HG (DV6C M) 114

Peugeot 308 SW I (4E_, 4H_) PC 2013-03 2014-10 DIESEL 9HD (DV6C) 114

Peugeot 308 II (LB_, LP_, LW_, LH_, L3_) PC 2013-09 2021-06 DIESEL 9HC (DV6C), BHX (DV6FC), BHZ ( 115

Peugeot 5008 (0U_, 0E_) PC 2010-08 2017-03 DIESEL 9HR (DV6C) 112

Peugeot 5008 (0U_, 0E_) PC 2013-03 2017-03 DIESEL 9HD (DV6C) 114

Peugeot 208 I (CA_, CC_) PC 2012-03 2019-12 DIESEL 9HD (DV6C) 114

Peugeot PARTNER Box Body/MPV LCV 2013-03 DIESEL 9HL (DV6C) 114

Peugeot PARTNER TEPEE PC 2013-03 DIESEL 9HL (DV6C) 114

Peugeot 508 I (8D_) PC 2010-11 2018-12 DIESEL 9HL (DV6C), 9HR (DV6C) 112

Peugeot 508 SW I (8E_) PC 2010-11 2018-12 DIESEL 9HL (DV6C), 9HR (DV6C) 112

Volvo V40 Hatchback (525) PC 2012-03 2016-12 DIESEL D 4162 T 114

Volvo V40 Hatchback Van (525) LCV 2013-09 2015-12 DIESEL D 4162 T 114

Volvo V50 (545) PC 2010-01 2012-12 DIESEL D 4162 T 114

Volvo V60 I Estate Van (155) LCV 2013-09 2015-12 DIESEL D 4162 T 114

Volvo C30 (533) PC 2010-10 2012-12 DIESEL D 4162 T 115

Volvo V60 I (155) PC 2011-02 2015-12 DIESEL D 4162 T 114

Volvo S40 II (544) PC 2010-10 2012-12 DIESEL D 4162 T 115

Volvo S60 II (134) PC 2011-01 2015-12 DIESEL D 4162 T 114

Volvo S80 II (124) PC 2011-06 2014-01 DIESEL D 4162 T 114

Volvo V70 III (135) PC 2011-04 2015-12 DIESEL D 4162 T 114

Product Details
HYB-AG12-885
Hybrid
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
