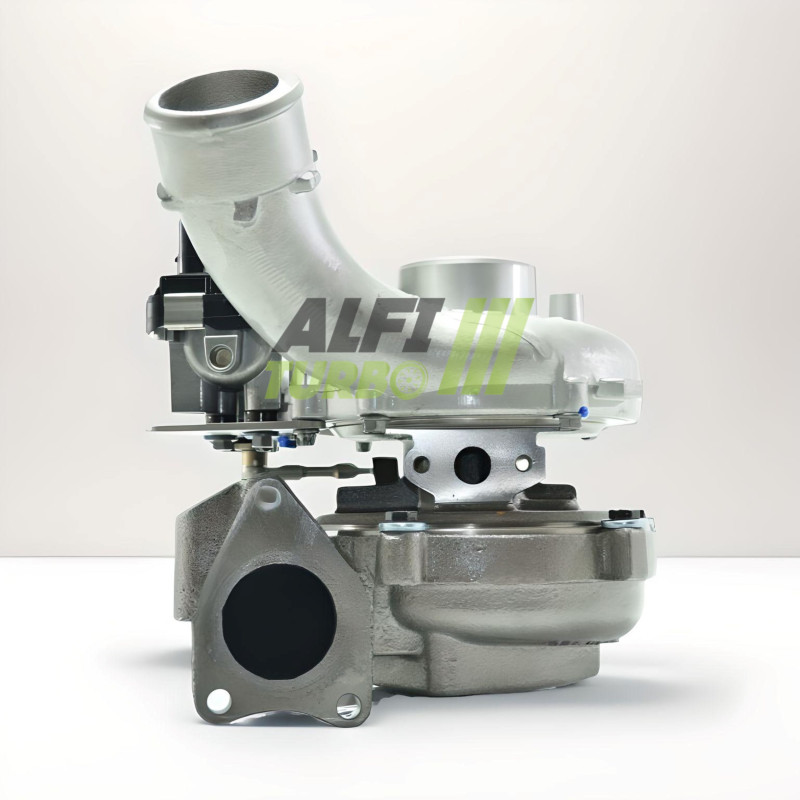

Hybrid Turbo Audi 2.7 TDI 163 190 hp, 059145721B, 059145721H, 059145721L, 059145721G, 767805-0002, 777159-0003

  • Online only
Hybrid
  • Hybrid Turbo Audi 2.7 TDI 163 190 hp, 059145721B, 059145721H, 059145721L, 059145721G, 767805-0002, 777159-0003
  • Hybrid Turbo Audi 2.7 TDI 163 190 hp, 059145721B, 059145721H, 059145721L, 059145721G, 767805-0002, 777159-0003
HYB17-400-805
Year: June 2007 to March 2012, depending on assignment
Power: 163 and 190 hp
displacement: 2.7 TDI
Engine code: CAMA, CAMB, CGKA, CGKB
Exchange
Gasket kit
Preparation course
€456.00 VAT included

380 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo for engine options Audi 2.7 TDI between 163 and 190 hp is available in three documented levels of preparation. Each version is fitted with an MFS compressor wheel Performance high flow rate, a 360° bearing stop and high-speed balancing on a Cimat VSR test bench.

The posts listed relate in particular to Audi A4, B8 and A5, depending on the body style, production period and engine code. The turbocharger part number dThe origin must be checked before placing an order.

Available products — Stage 1, Stage 2 and Stage 2+

Stage 1
Compressor wheel: MFS Performance high-speed
Dimensions: 41.55 / 56.03 mm
Blade configuration: 11+0 Performance Design
Stop: 360° bearing
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

This kit includes an MFS wheel Performance high flow rate during maintenance d'a system designed to be used without modification'. The documented geometry is designed to adapt the movement capacity d'compressor air, without prejudging the final gain on the engine'.

Stage 2
Compressor wheel: MFS Performance high-speed oversized
Dimensions: 47.50 / 60.01 mm
Blade configuration: 11+0 Performance Design
Carter d'Admission:' reprofiled for to receive the wheel oversized
Stop: 360° bearing
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

The larger-diameter wheel requires the casing to be re-profiled d'admission'. This combination may increase flow capacity under certain conditions, but it requires tuning to suit the vehicle’s configuration.

Stage 2+
Compressor wheel: MFS Performance high-speed oversized
Dimensions: 50.20 / 65.00 mm
Blade configuration: 11+0 Performance Design
Carter d'Admission:' reprofiled for to receive the wheel oversized
Stop: 360° bearing
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

This version uses the largest compressor wheel on record for this product, with a casing d'adapted admission'. Its behaviour depends on the overall set-up, and a larger size alone does not guarantee better performance in all conditions.

What is a hybrid turbo ?

A hybrid turbo retains a suitable turbocharger design for to receive internal changes. Depending on the specific application, these may relate to the compressor wheel, its dimensions, the geometry of the blades, the machining of the housings, the thrust bearing or the balancing.

The aim is d'adjust the compression capacity and flow rate' d'air'. A hybrid turbo is therefore not defined solely by the appearance of its compressor wheel, but by the coherence of its components and their tuning.

MFS compressor wheel: standard or Performance ? ?

MFS stands for ‘Milled From Solid’: the wheel is machined from a solid block. This manufacturing process alone does not guarantee an increase in throughput. A standard MFS wheel can retain a geometry equivalent to that d'origin'.

A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air'. An MFS wheel Performance can be fitted with a blade profile, diameter or configuration suited to the preparation task. A higher flow rate may contribute to an increase in power when the engine has been properly tuned, although this does not guarantee a specific result.

Why does the geometry of the blades affect the flow rate? d'air?' ?

The compressor wheel draws in and then compresses the air admitted by the engine. Its diameter, profile, height, width and the arrangement of its blades all influence its aerodynamic behaviour. The right geometry can move more d'air within certain operating ranges, but the result also depends on the casings, the turbine wheel, the boost pressure and the engine management system'. A larger wheel can also affect response time and range d'optimal use'.

Reliability and balancing of the hybrid turbocharger

The 360° stop fitted to all three stages helps to distribute the axial forces. The rotor is balanced at high speed – up to 150,000 rpm – on a Cimat VSR test bench in order to minimise vibrations and mechanical stresses. However, this balancing does not compensate for a lack of lubrication or incorrect installation.

Engine remapping and tuning

Appropriate engine management is required for make the most of the hybrid turbo’s features. Mapping, boost pressure, fuel injection, exhaust, air cooling d'The intake system and, depending on the configuration, the transmission must be checked or adjusted'. The wastegate must be adjusted during the installation and tuning of the ECU. A turbocharger on its own does not guarantee a power increase.

Turbo part numbers

OEM part numbers

059145721BX
059145721B
059145721H
059145721GX
059145721L
059145721G
059145721LX
059145721GV

Manufacturer’s part numbers

767805-0002
767805-0004
767805-2
767805-2004
767805-4
767805-5004S
777159-0003
777159-2003
777159-3
777159-5003S

Compatible vehicles and assignments

Audi
A4 B8 (8K2) — 2.7 TDI 163 hp
Diesel — November 2007 to March 2012
Engine codes: CAMB, CGKB
A4 B8 (8K2) — 2.7 TDI 190 hp
Diesel — November 2007 to March 2012
Engine codes: CAMA, CGKA
A4 B8 Front (8K5) — 2.7 TDI 163 hp
Diesel — June 2008 to March 2012
Engine codes: CAMB, CGKB
A4 B8 Front (8K5) — 2.7 TDI 190 hp
Diesel — April 2008 to March 2012
Engine codes: CAMA, CGKA
A5 (8T3) — 2.7 TDI 163 hp
Diesel — September 2007 to March 2012
Engine codes: CAMB, CGKB
A5 (8T3) — 2.7 TDI 190 hp
Diesel — June 2007 to March 2012
Engine codes: CAMA, CGKA
A5 Convertible (8F7) — 2.7 TDI 163 hp
Diesel — May 2009 to March 2012
Engine code : CGKB
A5 Convertible (8F7) — 2.7 TDI 190 hp
Diesel — March 2009 to March 2012
Engine code : CGKA
A5 Sportback (8TA) — 2.7 TDI 163 hp
Diesel — September 2009 to March 2012
Engine code : CGKB
A5 Sportback (8TA) — 2.7 TDI 190 hp
Diesel — September 2009 to March 2012
Engine codes: CAMA, CGKA

Additional technical specifications

Product type: hybrid turbo
Engine: Audi 2.7 TDI
Fuel: diesel
Powers: 163 and 190 hp
Engine codes: CAMA, CAMB, CGKA, CGKB
Documented periods: June 2007 to March 2012, depending on assignment
Installation: designed for an edit without any alterations

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the supply and return lines d'oil', then check that the ducts and the intake are clean and that there are no foreign objects present.

Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions. Engine management, boost pressure and wastegate settings must be adjusted during tuning.

If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the turbo part number d'Original', OEM and manufacturer part numbers, then compare the make, model, generation, body style, engine type, power output, production period and engine code. Having the same motor does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number on your turbocharger d'origin' using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.

If in doubt, please contact us, quoting the reference number clearly visible on your turbocharger’s nameplate.
