Hybrid Turbo 2.0 HDI 150 163, 783248, 0375P2, 0375S6, 0375S8, 9688361580

  • Online only
Hybrid

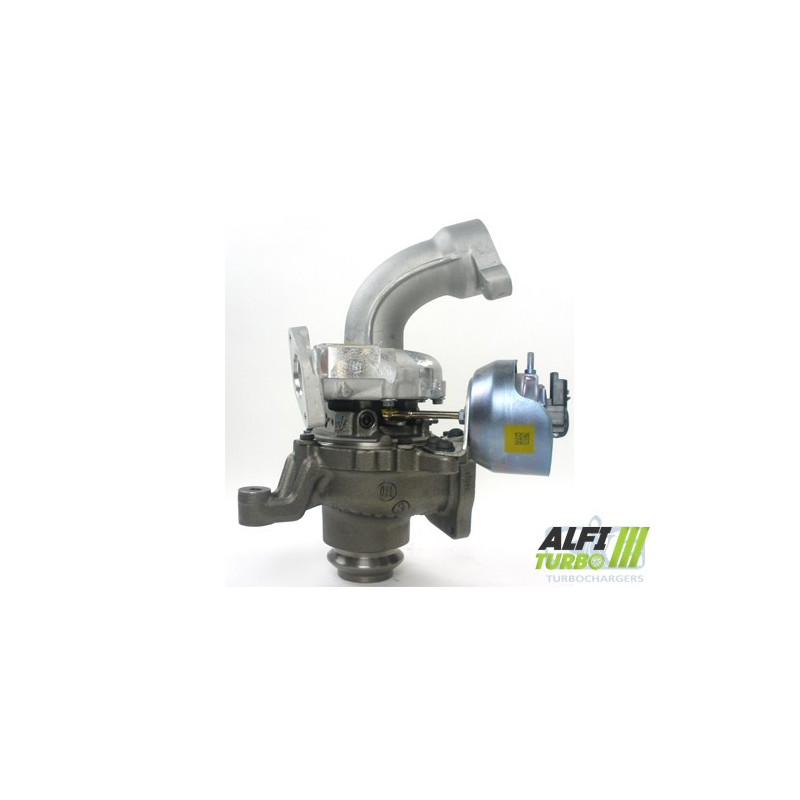

Turbo   2.0 HDI 163CV 783248
  • Turbo   2.0 HDI 163CV 783248
783248
Year: from 2004 onwards, depending on the vehicle; end date not specified
Power: 150, 162 and 163 hp
displacement: 2.0 l
Engine code: Not specified
Gasket kit
Preparation course
Exchange
€501.00 VAT included

417.5 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo is designed for engines 2.0 HDI 150, 162 and 163 hp listed below. Its design is based, in particular, on a high-flow MFS compressor wheel, a 360° bearing thrust ring and high-speed balancing.

It is suitable for a range of applications Citroën and Peugeot, including the C4, C5, 3008, 308, 407, 5008, 508 and RCZ. The choice of gearbox must be suited to the engine configuration and the intended use.

Available products — Stage 1, Stage 2 and Stage 3

Stage 1
Compressor wheel: High-capacity MFS
Stop: 360° bearing stop
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

This unit enhances compression capacity by means of a high-flow MFS impeller, whilst retaining a configuration designed for a Installation without modification documented external.

Stage 2
Compressor wheel: High-capacity MFS oversized
Carter d'Admission:' reprofiled for to receive the new wheel oversized
Stop: 360° bearing stop
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

The casing d'The inlet is designed to fit the compressor wheel' oversized. This association aims to alter the flow capacity d'compressor air, without prejudging the engine’s final power output'.

Stage 3
Compressor wheel: High-capacity MFS oversized
Carter d'Admission:' reprofiled for to receive the new wheel oversized
Stop: 360° bearing stop
Turbine wheel: high-speed oversized
Turbine casing: reprofiled for to receive the new wheel oversized
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

This version combines the modifications to the compressor side with a turbine wheel oversized and a re-profiled turbine casing. These changes may affect the flow rate and behaviour of the turbocharger, in particular its response time and operating range d'optimal use'.

What is a hybrid turbo ?

A hybrid turbo uses a specially adapted turbocharger design for to receive modified internal components. Depending on the course, the preparation may involve the compressor wheel, the casings, the turbine wheel, the thrust bearing or balancing.

The aim is d'adjust the compression capacity and flow rate' d'air'. However, a hybrid turbo is not defined solely by the appearance of its impeller: the geometry of its components and the way they are combined determine its performance.

MFS compressor wheel: standard or Performance ? ?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. The wheel described here is made of forged aluminium and has a lighter, wider and taller design than the one d'origin'. According to the data provided, it enables up to 15 per cent additional compression.

A standard MFS wheel can retain a geometry equivalent to the original. An MFS wheel Performance may have a diameter, profile or blade configuration suited to the intended purpose.

A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air'. Higher power output can only be utilised effectively with appropriate engine tuning.

Why does the geometry of the blades affect the flow rate? d'air?' ?

The compressor wheel draws in and then compresses the intake air. Its diameter, profile, height, width and the arrangement of its blades all influence its aerodynamic behaviour. The result also depends on the casings, the turbine wheel, the boost pressure and the engine management system. A larger wheel therefore does not automatically guarantee better performance and may affect response time.

Reliability and balancing of the hybrid turbocharger

The documented 360° stop helps to distribute the axial forces acting on the rotating assembly. The rotor is balanced at high speed – 150,000 rpm – on a Cimat VSR test bench, in order to minimise vibrations and mechanical stresses. This balancing does not compensate for faulty assembly, inadequate lubrication or the presence of d'a foreign body'.

Engine remapping and tuning

The farm d'A hybrid turbo requires appropriate engine management'. Mapping, boost pressure and wastegate settings must be checked during remapping. Depending on the set-up, the fuel injection, exhaust, cooling, intake and transmission may also need to be checked or adjusted. The turbo alone does not guarantee any particular final power output.

Turbo part numbers

OEM part numbers

0375P2
0375S6
0375S8
96 883 615 80
9688361580

Manufacturer’s part numbers

783248
783248-0003
783248-0004
783248-0005
783248-5003S
783248-5004S
783248-5005S
806497-0001
806497-5001S
GTB1449VZL

Compatible vehicles and assignments

Citroën
C4 2.0 HDI — 162 hp
2.0 HDI — early 2009, month unspecified; end unspecified
Engine code : not specified
C4 Grand Picasso 2.0 HDI 16V — 150 hp
2.0 HDI 16V — early 2006, month unspecified; end unspecified
Engine code : not specified
C5 2.0 HDI — 162 hp
2.0 HDI — early 2009, month unspecified; end unspecified
Engine code : not specified
C5 2.0 HDI 16V — 163 hp
2.0 HDI 16V — early 2008, month unspecified; end unspecified
Engine code : not specified
Peugeot
3008 2.0 HDI — 150 hp
2.0 HDI — early 2009, month unspecified; end unspecified
Engine code : not specified
3008 2.0 HDI — 162 hp
2.0 HDI — early 2009, month unspecified; end unspecified
Engine code : not specified
308 2.0 HDI — 163 hp
2.0 HDI — early 2008, month unspecified; end unspecified
Engine code : not specified
407 2.0 HDI — 162 hp
2.0 HDI — early 2009, month unspecified; end unspecified
Engine code : not specified
407 2.0 HDI — 163 hp
2.0 HDI — early 2004, month unspecified; end unspecified
Engine code : not specified
5008 2.0 HDI — 150 hp
2.0 HDI — early 2009, month unspecified; end unspecified
Engine code : not specified
5008 2.0 HDI — 162 hp
2.0 HDI — early 2009, month unspecified; end unspecified
Engine code : not specified
5008 2.0 HDI — 163 hp
2.0 HDI — early 2009, month unspecified; end unspecified
Engine code : not specified
508 2.0 HDI — 162 hp
2.0 HDI — early 2010, month unspecified; end unspecified
Engine code : not specified
508 2.0 HDI — 163 hp
2.0 HDI — early 2011, month unspecified; end unspecified
Engine code : not specified
RCZ 2.0 HDI — 162 hp
2.0 HDI — early 2010, month unspecified; end unspecified
Engine code : not specified
RCZ 2.0 HDI — 163 hp
2.0 HDI — early 2010, month unspecified; end unspecified
Engine code : not specified

Additional technical specifications

Product type: hybrid turbo
Engine: 2.0 HDI
displacement : 2.0 l
Fuel: diesel
Listed powers: 150, 162 and 163 hp
Period covered: from 2004 onwards, depending on the vehicle; purposes not specified
Engine codes: not specified

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Before installation, identify and rectify the cause of the previous fault. Check the lubrication circuit, the supply and the return d'the oil and the cleanliness of all the pipes'.

Check the intake and ensure there are no foreign objects present. Carry out the priming in accordance with the relevant guidelines and follow the vehicle manufacturer’s instructions.

If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the part number marked on the turbocharger d'origin, OEM and manufacturer part numbers, as well as the make, model, engine type, power output, theYear installation and engine code. A single motor can be fitted with several different configurations.

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number on your turbocharger d'origin' using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.

If you are in any doubt, please contact us with the full part number from your turbocharger.
