Hybrid Turbo 1.8i 150 hp – 06A145703A, 53039700011

  • Online only
  • On sale!
Hybrid

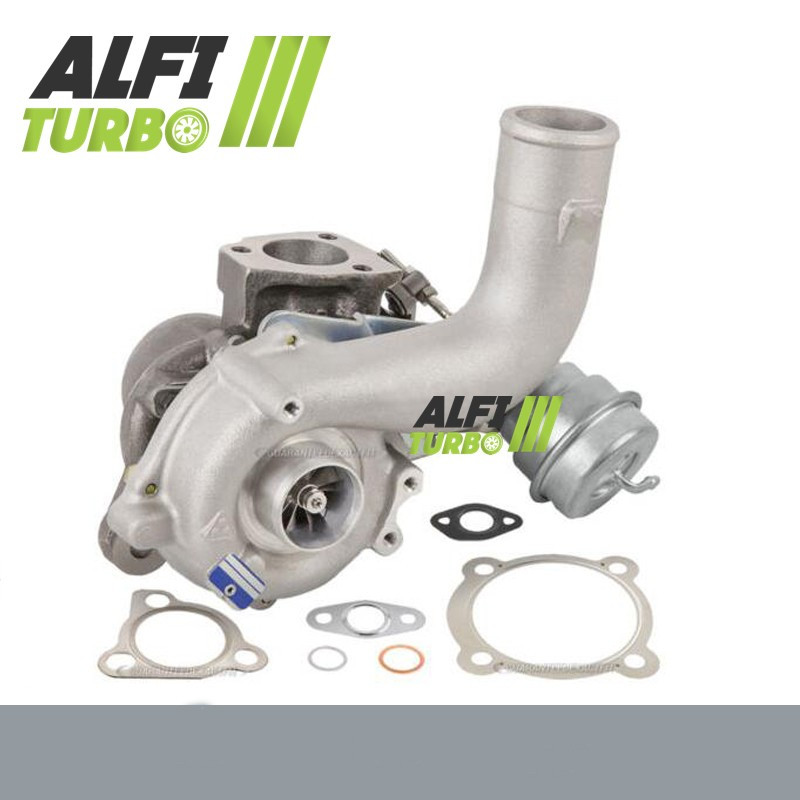

Hybrid Turbo 1.8i 150 hp, 06A145703A, 53039700011, 06A145703G, 06A145704L, 53039700044
  • Hybrid Turbo 1.8i 150 hp, 06A145703A, 53039700011, 06A145703G, 06A145704L, 53039700044
HYB03-200-011
Year: December 1996 to December 2010, depending on the role
Power: 150, hp and 180, hp depending on the vehicle
displacement: 1.8 l
Engine code: AGU, AQA, ARX, ARZ, AJQ, APP, ARY, AUQ, AUM, AWD, APH, AVC
Gasket kit
Preparation course
€356.40 VAT included

297 tax excl.

Quantity
DProduction time: 15–20 working days

Description

This hybrid turbocharger for for 1.8-litre petrol engines combines a plug & play design with a high-flow MFS compressor wheel and a 360° bearing retainer. The three documented set-ups allow you to choose a configuration suited to your engine project, without specifying a predefined final power output.

The applications listed include, in particular, the Audi A3, SEAT Leon and Toledo, Škoda Octavia, as well as several Volkswagen models. The part number of the original turbo dmust always be checked before ordering.

Available upgrades — Stage 1, Stage 2 and Stage 2+

Stage 1
Compressor wheel: MFS high-flow
Bearing: 360° thrust
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

This set-up favours a high-flow MFS impeller whilst retaining a plug & play. configuration. Its geometry is designed to optimise the turbocharger’s compression capacity and air displacement d.

Stage 2
Compressor impeller: high-flow MFS oversized
d’ intake housing: re-profiled for accommodate the new impeller oversized
Bearing: 360° thrust
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

The Stage 2 is fitted with a oversized impeller and a dintake casing adapted to this geometry. This combination can increase the air flow capacity d, with performance that also depends on the engine management system and the overall configuration.

Stage 2+
Compressor wheel: MFS high-flow oversized
Inlet housing d: reprofiled for to accommodate the new impeller oversized
Bearing: 360° thrust
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

The technical specifications provided by for for the Stage 2+ comprise the same components as documented above. As no impeller dimensions or additional modifications are specified, no further mechanical differences can be confirmed.

What is a hybrid turbo?

A hybrid turbo is based on a turbocharger architecture adapted to accommodate specific internal components. Depending on the tuning stage, modifications may involve the compressor wheel, its diameter, the blade geometry, the machining of the housing, the thrust bearing or the balancing.

The aim is dto adjust the compression capacity and the air flow rate d. A hybrid turbo is therefore not defined solely by the appearance of its impeller: the result depends on the consistency between the components, the housings and the engine settings.

MFS compressor wheel: standard or Performance?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in flow rate. A standard MFS wheel may retain a geometry equivalent to the original, whilst an MFS Performance wheel may utilise a profile or dimensions tailored to the tuning objective.

A standard MFS impeller can be just as shiny as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d’air. The product’s technical specifications here combine the high-flow MFS impeller with an additional 15 per cent compression, the utilisation of which requires appropriate engine tuning.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and the arrangement of its blades influence its aerodynamic behaviour. A suitable geometry can move more dair under certain conditions, but a larger impeller does not automatically guarantee a better result: it may also alter the response time and the d’optimal operating range. The compressor housing, turbine, boost pressure and mapping also contribute to the result.

Reliability and balancing of the hybrid turbo

The documented 360° thrust bearing distributes axial forces across its entire circumference. The rotor is balanced at high speed, up to 150,000 rpm on a Cimat VSR test bench, to minimise vibrations and mechanical stresses. However, this balancing does not compensate for incorrect installation or inadequate lubrication.

Engine remapping and preparation

The mapping and pressure control must be adjusted for to make the most of the hybrid turbo’s characteristics. Depending on the level of tuning, the injection, fuel supply, the exhaust, the air- d’ intake cooling, the clutch or the transmission must also be checked. The wastegate must be adjusted when the ECU is remapped. The turbo alone does not guarantee a power gain.

Turbo part numbers

OEM part numbers

06A145704LX
06A145704X
06A145703G
06A145703GX
06A145703A
06A145703AX
06A145704L
06A145704LV

Manufacturer’s part numbers

53039700011
53039880011
53039700044
53039880044

Compatible vehicles and applications

AUDI
A3 (8L1) — 150 hp
Essence , 12/1996 to 05/2003
Engine codes: AGU, AQA (from 08/1998), ARX
A3 (8L1) — 150 hp
Essence , Dec 1996 to May 2003
Engine codes: AGU, AQA (from Aug 1998), ARZ (source date truncated)
A3 (8L1) — 180 hp
Essence , Dec 1998 to May 2003
Engine codes: AJQ, APP (from Dec 1998), ARY, AUQ
SEAT
Leon (1M1) — 180 hp
Essence , 11/1999 to 06/2006
Engine codes: APP, AUQ (from 03/2000)
Toledo II (1M2) — 180 hp
Essence , 09/2000 to 07/2004
Engine codes: APP, ARY, AUQ
ŠKODA
Octavia I (1U2) — 150 hp
Essence , 08/1997 to 12/2010
Engine codes: AGU, ARX, ARZ, AUM
Octavia I Estate (1U5) — 150 hp
Essence , 07/1998 to 12/2010
Engine codes: AGU, ARX, ARZ, AUM
Volkswagen
Bora I (1J2) — 150 hp
Essence , May 2000 to May 2005
Documented engine codes: AGU (from May 2000), ARX, AUM, AWD
Bora Variant (1J6) — 150 hp
Essence , May 2000 to May 2005
Documented engine codes: AGU (from May 2000), ARX, AUM, AWD
Golf IV (1J1) — 150 hp
Essence , 08/1997 to 06/2005
Documented engine codes: AGU (from 08/1997), AQA (source indication truncated)
Golf IV Variant (1J5) — 150 hp
Essence , May 2000 to June 2006
Documented engine codes: AGU (from May 2000), ARZ, AUM (source indication truncated)
New Beetle (9C1, 1C1) — 150 hp
Essence , 10/1999 to 09/2010
Documented engine codes: AGU, APH (up to 06/2000), AVC (source indication truncated from 06/2000)

Additional technical specifications

Product type: hybrid turbo
Design: plug & play, Installation without modification
Engine: 1.8-litre petrol
Power outputs: 150 hp and 180 hp
Production periods: December 1996 to December 2010, depending on the vehicle

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication system, the oil supply and return lines d, the cleanliness of the pipes, and the intake, ensuring there are no foreign objects present.. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions.. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the part number engraved or marked on the original turbo d, then compare it with the OEM and manufacturer part numbers in this data sheet.. Also check the make, model, generation, body style, engine type, power output at hp, production period and engine code. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original dturbo with the part numbers listed in this specification sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, contact our team with the part number clearly visible on your turbocharger.
