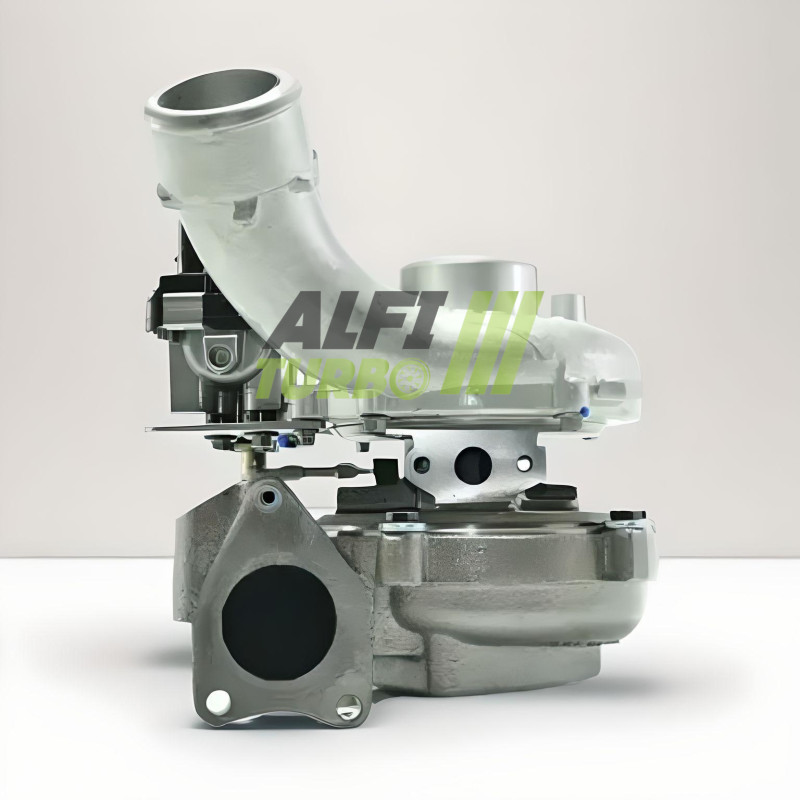

This hybrid turbo for 3 engines.0 TDI benefits from d'an internal programme tailored to research' d'a flow rate' d'upper air'. Depending on the course chosen, he receives an MFS compressor wheel Performance, a 360° bearing stop and high-speed balancing on a Cimat VSR test bench.
The documented assignments relate in particular to several Audi A6 and Q7, the Porsche Cayenne, as well as the Volkswagen Phaeton and Touareg. Compatibility must always be confirmed using the turbo’s part number d'origin'.
This kit includes an MFS wheel Performance with a 360° stop. Its design is intended to adjust the compression capacity and flow rate d'air whilst retaining the documented dimensions' for this work placement.
The casing d'The inlet has been re-profiled to accommodate the new compressor wheel'. Increasing its dimensions may affect the available flow rate and the behaviour of the turbocharger, depending on the engine configuration.
This version features a larger compressor wheel and a housing d'adapted admission'. Operating it requires an engine set-up that is consistent with the turbo’s specifications and its intended use.
A hybrid turbo is based on a specially adapted turbocharger design for to receive internal components that differ from the configuration d'origin'. Depending on the modification, changes may relate to the compressor wheel, its dimensions, the geometry of the blades, the casings, the thrust bearing or the balancing.
The aim is d'adjust the compression capacity and flow rate' d'air'. However, a hybrid turbo is not defined solely by the appearance of its impeller: the dimensions, the geometry, the fit of the casings and the overall coherence of the assembly are crucial.
MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process does not, on its own, guarantee an increase in throughput d'air'. A standard MFS wheel can retain a geometry equivalent to that d'origin'.
A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air'. An MFS wheel Performance can be fitted with a blade profile, diameter or configuration suited to the preparation objective. A higher flow rate can help to generate more power with the appropriate engine tuning, although this alone does not guarantee results.
The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades all influence its aerodynamic behaviour. The right geometry can move more d'air under certain conditions, but the result also depends on the casings, the turbine wheel, the boost pressure and the engine management system'. A larger wheel therefore does not automatically guarantee a better result and may affect the response time.
The documented 360° stop distributes axial forces over a wide area. Each work placement also benefits from d'high-speed balancing at 150,000 rpm on a Cimat VSR test bench in order to minimise vibrations and stresses on the rotor'. However, this balancing does not compensate for either incorrect installation or a lack of lubrication.
It may be necessary to adjust the engine management system for make the most of the hybrid turbo’s features. Mapping, boost pressure, fuel injection, exhaust, air cooling d'Intake and transmission must be monitored in accordance with the level of preparedness'. The wastegate must be adjusted during the installation and remapping of the ECU. No increase in power is automatic without the appropriate configuration.
⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY
Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the supply and return lines d'oil'. Check that the ducts and the intake are clean and free from foreign objects. Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions. The wastegate must be adjusted during fitting and remapping. If a lubrication fault is not rectified, it may lead to the turbocharger failing again.
Check the part number marked on the turbocharger d'origin', then compare the OEM and manufacturer part numbers. Also check the make, model, generation, body style, engine type, power output, production period and engine code. Having the same engine is not always enough to confirm compatibility.
⚠️ Check your turbo’s part numbers
Before placing your order, Compare the part number on your turbocharger d'origin' using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.
If you are in any doubt, please contact us with the full reference number shown on your turbocharger.
