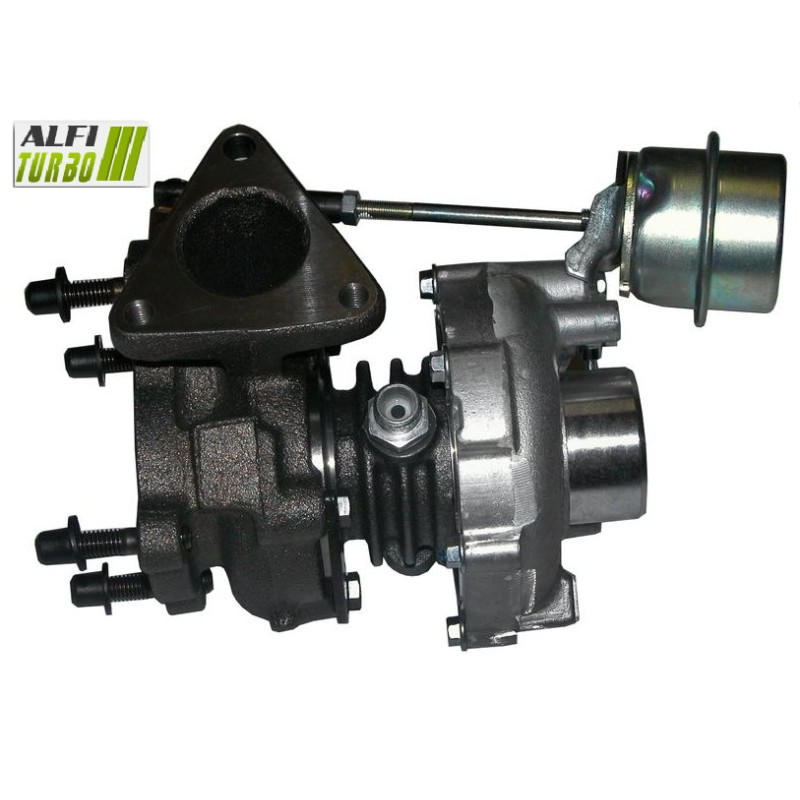

Hybrid Turbo 1.9 TDI 90 hp – 038145701D, 454159

  • Online only
Hybrid
Hybrid Turbo 1.9 TDI 90, 454159, 038145701D | 038145701DV, 038145701DX, 038145701A, 038145701AV, 038145701AX
  • Hybrid Turbo 1.9 TDI 90, 454159, 038145701D | 038145701DV, 038145701DX, 038145701A, 038145701AV, 038145701AX
  • Hybrid Turbo 1.9 TDI 90, 454159, 038145701D | 038145701DV, 038145701DX, 038145701A, 038145701AV, 038145701AX
HYB15-200-664
Year: From 1996 onwards, according to the application
Power: 90 hp
displacement: 1,..9 litres
Engine code: Not specified
Exchange
Gasket kit
Preparation course
€240.00 VAT included

200 tax excl.

Quantity
DProduction time: 15–20 working days

Description

This hybrid turbo for engine 1.9 TDI 90 hp is available in three levels of preparation. Each version combines a high-flow MFS compressor wheel, a 360° bearing stop and high-speed balancing on a Cimat VSR bench.

It is designed for use in applications Audi, , Seat, , Skoda and Volkswagen listed below. Its design allows for a Installation without modification, subject to checking the turbo’s part number d'origin and d'tailor the engine preparation to the chosen course'.

Available products — Stage 1, Stage 2 and Stage 2+

Stage 1
Compressor wheel: High-capacity MFS
Documented diameter: 44 mm
Stop: 360° thrust bearing
Balancing: High speed at 150,000 rpm on a Cimat VSR test bench

This unit is based on a 44 mm high-flow MFS compressor wheel. It aims to adjust the compression capacity and flow rate d'air whilst retaining the documented mechanical configuration' for this work placement.

Stage 2
Compressor wheel: High-capacity MFS oversized
Documented diameter: 46 mm
Carter d'Admission:' Reprofiled for to receive the new wheel oversized
Stop: 360° thrust bearing
Balancing: High speed at 150,000 rpm on a Cimat VSR test bench

The Stage 2 features a 46 mm wheel and a casing d're-profiled intake'. Modifying the casing allows d'to accommodate this wheel' oversized and d'to ensure the integrity of the compressor unit'.

Stage 2+
Compressor wheel: High-capacity MFS oversized
Documented diameter: 49 mm
Carter d'Admission:' Reprofiled for to receive the new wheel oversized
Stop: 360° thrust bearing
Balancing: High speed at 150,000 rpm on a Cimat VSR test bench

The Stage The 2+ uses a 49 mm wheel with a casing d're-profiled intake'. This configuration can move more d'air under the right conditions, but its performance depends on engine management and other aspects of the set-up'.

What is a hybrid turbo ?

A hybrid turbo utilises a suitably adapted turbocharger design for to receive internal changes. Depending on the course, these may relate to the compressor wheel, its diameter, or the casing d'intake, stop or rotor balancing'.

The aim is d'adjust the compression capacity and flow rate' d'air'. However, a hybrid turbo is not defined solely by the appearance of its impeller: the geometry, its integration into the housing and the overall balance are crucial factors.

MFS compressor wheel: standard or Performance ? ?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone is not sufficient to guarantee an increase in throughput d'air'. A standard MFS wheel can retain a geometry close to its original state.

An MFS wheel Performance can be designed with a geometry suited to the intended purpose, in particular through its profile or dimensions. The wheels featured here are made of forged aluminium and are described as being lighter, larger and taller than the wheel d'as originally designed, with a claimed 15 per cent higher compression capacity'.

A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air'. A higher flow rate can help to increase power output when the engine has been properly tuned.

Why does the geometry of the blades affect the flow rate? d'air?' ?

The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades influence its aerodynamic behaviour and volume d'air displaced'.

The result also depends on the compressor housing, the turbine section, the boost pressure and the engine tuning. A larger wheel therefore does not automatically guarantee better performance and may affect response time as well as the range d'optimal use'.

Reliability and balancing of the hybrid turbocharger

The 360° bearing stop fitted to all three stages helps to distribute the axial forces around the axis. It does not exempt d'proper lubrication or compliance with the installation requirements'.

Every preparation benefits from d'high-speed balancing at 150,000 rpm on a Cimat VSR test bench'. This procedure is designed to minimise vibrations and mechanical stresses on the rotor, although it cannot compensate for incorrect installation, contamination or a fault d'oil supply'.

Engine remapping and tuning

Appropriate engine management is required for make the most of the features d'a hybrid turbo'. Mapping, boost pressure, fuel supply, air cooling d'The intake, exhaust, clutch and gearbox must be checked in accordance with the level of preparation'.

The wastegate must be adjusted when the ECU is remapped. The presence d'A hybrid turbo alone does not guarantee a power increase without appropriate adjustments to the engine as a whole'.

Turbo part numbers

OEM part numbers

038145701D
038145701DV
038145701DX
038145701A
038145701AV
038145701AX

Manufacturer’s part numbers

53039700015
53039800015
53039880015
53039900015
K03-015
454159
454159-0001
454159-0002
454159-1
454159-2

Compatible vehicles and assignments

Audi
A3 Series 1 — 1.9 TDI 90 hp
Engine 1.9 TDI — from 1996, end date unspecified
Engine code : not specified
A3 Series 1 Phase 2 — 1.9 TDI 90 hp
Engine 1.9 TDI — from 1996, end date unspecified
Engine code : not specified
Seat
Leon — 1.9 TDI 90 hp
Engine 1.9 TDI — from 1999, end date unspecified
Engine code : not specified
Skoda
Octavia — 1.9 TDI 90 hp
Engine 1.9 TDI — from 1996, end date unspecified
Engine code : not specified
Volkswagen
Bora — 1.9 TDI 90 hp
Engine 1.9 TDI — from 1996, end date unspecified
Engine code : not specified
Golf IV — 1.9 TDI 90 hp
Engine 1.9 TDI — from 1996, end date unspecified
Engine code : not specified
Polo — 1.9 TDI 90 hp
Engine 1.9 TDI — from 1996, end date unspecified
Engine code : not specified

Additional technical specifications

Product type: Hybrid Turbo
Engine: 1.9 TDI
Power : 90 hp
Documented periods: From 1996 or 1999, depending on the application
Engine code : Not specified

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Before installation, identify and rectify the cause of the previous fault. Check the lubrication circuit, the supply and the return d'the oil and the cleanliness of all the pipes'.

Check the intake and ensure there are no foreign objects present. Carry out the priming in accordance with the relevant guidelines and follow the vehicle manufacturer’s instructions.

If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the part number marked on the turbocharger d'original', then compare it with the OEM and manufacturer part numbers listed on this sheet. Also check the make, model, generation and engine type 1.9 TDI, the power of 90 hp, the assembly period and the engine code, where available.

An identical motor does not always guarantee compatibility: there may be several different configurations for the same vehicle.

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number on your turbocharger d'origin' using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.

If you are unsure about which course is right for you, please contact us before placing your order.

Product Details
HYB15-200-664
0
Hybrid
Attachments
Download
