Cartridge Turbo 1 9 101 – 038253016M, 54399700021. TDI hp

  • Online only
New

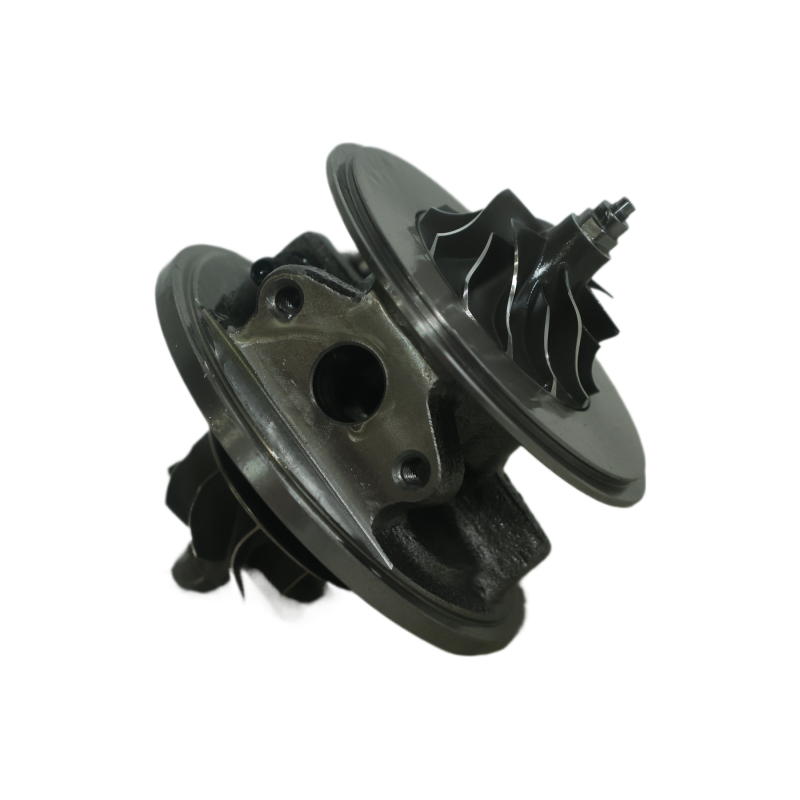

Turbo Cartridge 1.9 TDI 90 100 105, 54399700008, 54399700017, 54399700018, 54399700019, 54399700020, 54399700022, 54399700026
  • Turbo Cartridge 1.9 TDI 90 100 105, 54399700008, 54399700017, 54399700018, 54399700019, 54399700020, 54399700022, 54399700026
  • Turbo Cartridge 1.9 TDI 90 100 105, 54399700008, 54399700017, 54399700018, 54399700019, 54399700020, 54399700022, 54399700026
  • Turbo Cartridge 1.9 TDI 90 100 105, 54399700008, 54399700017, 54399700018, 54399700019, 54399700020, 54399700022, 54399700026
  • Turbo Cartridge 1.9 TDI 90 100 105, 54399700008, 54399700017, 54399700018, 54399700019, 54399700020, 54399700022, 54399700026
ACK-107
Year: From 1998
Power: 100 to 101 hp
displacement: 1,.,9 litres
Engine code: Not specified
Warranty: 2 years
Gasket Kit (Essential for Turbo Installation)
Gasket Kit (Essential for Turbo Installation)
12 €
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€65.04 VAT included

54.2 tax excl.

Quantity
Delivery within 24-72 hours (order before 5 p.m.)

Description

This central cartridge Cartridge is designed for turbochargers fitted to certain 1.9 TDI engines with 100 to 101 hp. It enables the central rotating assembly to be replaced whilst retaining the turbocharger’s compatible housings.

Documented fitments include several Volkswagen Bora and New Beetle models from 1998 onwards. Compatibility must always be confirmed using the part number of the original dturbo.

Turbo part numbers

Manufacturer part numbers

5439-970-0017
5439-970-0018
5439-970-0019
5439-970-0020
5439-970-0021
5439-970-0022
5439-970-0024
5439-988-0017
5439-988-0018
5439-988-0019
5439-988-0020
5439-988-0021
5439-988-0022
5439-988-0024
54397108001
54399700010
54399700017
54399700018
54399700019
54399700020
54399700021
54399700022
54399700024
54399880017
54399880018
54399880019
54399880020
54399880021
54399880022
54399880024

OEM part numbers

038253010A
038253010AV
038253010AX
038253010B
038253010BV
038253010BX
038253010C
038253010CV
038253010CX
038253010D
038253010DV
038253010DX
038253010S
038253010SV
038253010SX
038253014A
038253014AV
038253014AX
038253014B
038253014BV
038253014BX
038253014D
038253014DV
038253014DX
038253014E
038253014EV
038253014EX
038253014F
038253014FV
038253014FX
038253014G
038253014GV
038253014GX
038253014H
038253014HV
038253014HX
038253016M

Compatible vehicles and assignments

Volkswagen
Bora 1.9 TDI 100 hp
Engine variants 1.9 TDI 100 — from 1998, end date unspecified
Engine code: not specified
Bora 4MOTION 1.9 TDI 100 hp
Engine 1.9 TDI — from 1998, end date unspecified
Engine code: not specified
New Beetle 1.9 TDI 100 hp
Engine 1.9 TDI — from 1998, end date unspecified
Engine code: not specified
New Beetle Phase 2 1.9 TDI 100 hp
Engine 1.9 TDI — from 2001, end date unspecified
Engine code: not specified
New Beetle Phase 3 1.9 TDI 100 hp
Engine 1.9 TDI — from 2005, end date unspecified
Engine code: not specified

Technical specifications

Product type: Cartridge Turbo
Engine: 1.9 TDI
displacement: 1.9 l
Fuel: Diesel
Power Documented: 100 to 101 hp
Fitting period: From 1998 onwards, depending on application
Engine code: Not specified

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before d installing the central cartridge, identify and rectify the cause of the previous fault. Check the condition and cleanliness of any reused casings, the lubrication circuit, the oil supply and return lines d, and the oil inlet.. Check that there are no deposits or foreign objects, then prime the system in accordance with the applicable recommendations. Follow the manufacturer’s instructions and have the assembly carried out by a qualified professional. A lubrication fault that is not rectified may lead to the turbocharger failing again.

How do you identify the correct turbo?

Note down the part number shown on the original turbocharger d, then compare it with the manufacturer and OEM part numbers in this data sheet.. Also check the make, model, version, engine type, power output ( hp), the mountingYear and the engine code where available. An identical engine type does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original d turbo with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, contact ALFI TURBO with the full part number taken from your turbo.
Product Details
ACK-107
3701803906496
New
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
