Cartridge Turbo 1 9 90, 110 and 115 – 028145702E, 454232. TDI hp

  • Online only

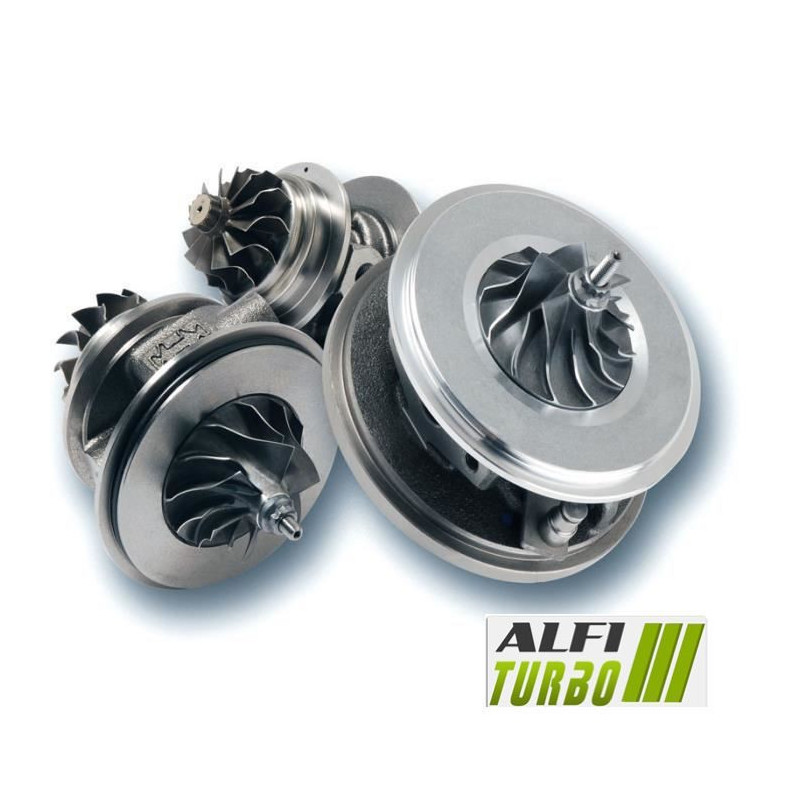

cartridge turbo 1.9 tdi 115, 713672-2, 713672-4, 713672-5, 713672-5005S
  • cartridge turbo 1.9 tdi 115, 713672-2, 713672-4, 713672-5, 713672-5005S
ACG-053
Year: From 1995 onwards, depending on the vehicle;
Power: 90 to 116 hp, depending on the application;
displacement: 1,..9 litres;
Engine code: Not specified.
Warranty: 2 years.
Gasket Kit (Essential for Turbo Installation)
Gasket Kit (Essential for Turbo Installation)
12 €
€67.20 VAT included

56 tax excl.

Quantity
Delivery within 24-72 hours (order before 5 p.m.)

Description

This central cartridge Cartridge is designed for several turbochargers fitted to 1-litre engines.9 TDI from 90 to 116 hp, depending on the vehicle and the part number d’origin’.

The documented allocations relate in particular to models Audi, , Ford, , Seat, , Skoda and Volkswagen. The part number of the removed turbo must be checked before placing any order.

Turbo part numbers

OEM part numbers

028145702E
028145702EV
028145702EX
038253010A
038253019A
038253019C
038253019CV
038253019CX
038253019D
038253019E
03G253014L
03G253014LV
03G253014LX
03G253014R
03G253014RV
03G253014RX
03G253016K
03G253016L
03G253016LX
03G253016N
03G253016NV
03G253016NX
38253019
YM219G438BA

Manufacturer’s part numbers

454183-0001
454183-0002
454183-0003
454183-0004
454183-5001S
454183-5002S
454183-5003S
454183-5004S
454195-0001
454195-5001S
454232-0001
454232-0002
454232-0003
454232-0004
454232-0005
454232-0006
454232-0010
454232-0011
454232-0014
454232-5001S
454232-5002S
454232-5003S
454232-5004S
454232-5005S
454232-5006S
454232-5010S
454232-5011S
454232-5014S
713672-0002
713672-0003
713672-0004
713672-0005
713672-0006
713672-5002S
713672-5003S
713672-5004S
713672-5005S
713672-5006S
768329-0001
768329-0003
768329-0011
768329-5001S
768329-5003S
768329-5011S
768331-0001
768331-0002
768331-5002S

Compatible vehicles and assignments

Audi

A3 Series 1 — 1.9 TDI 90 hp
From 1996 — end date unspecified
A3 Series 1 Phase 2 — 1.9 TDI 100 hp
From 2000 — end date unspecified
A3 Series 1 — 1.9 TDI 110 hp
From 1997 — end date unspecified
A3 Series 1 Phase 2 — 1.9 TDI 110 and 115 hp
From 2000 — end date unspecified
A4 — 1.9 TDI 110 hp
From 2000 — end date unspecified

Ford

Galaxy — 1.9 TDI 110 hp
From 1996 — end date unspecified
Galaxy — 1.9 TDI 110 and 115 hp
From 1998 — end date unspecified

Seat

Alhambra — 1.9 TDI 110 hp
From 1996 — end date unspecified
Leon — 1.9 TDI 90 and 110 hp
From 1999 — end date unspecified
Toledo Series 2 — 1.9 TDI 90 and 110 hp
From 1998 — end date unspecified

Skoda

Fabia — 1.9 TDI 100 hp
From 1999 — end date unspecified
Fabia Phase 2 — 1.9 TDI 100 and 101 hp
From 2004 — end date not specified
Octavia — 1.9 TDI 90 hp
From 1996 — end date unspecified

Volkswagen

Bora — 1.9 TDI 90 hp
From 1998 — end date unspecified
Bora — 1.9 TDI 100 hp
From 1998 — end date unspecified
Bora — 1.9 TDI 110 hp
From 1997 — end date unspecified
Bora — 1.9 TDI 110 hp
From 1998 — end date unspecified
Golf 3 — 1.9 TDI 110 hp
From 1995 — end date unspecified
Golf 4 — 1.9 TDI 90 hp
From 1997 — end date unspecified
Golf 4 — 1.9 TDI 100 and 101 hp
From 1997 — end date unspecified
Golf 4 — 1.9 TDI 110, 115 and 116 hp
From 1997 — end date unspecified
New Beetle — 1.9 TDI 90 hp
From 1997 — end date unspecified
New Beetle — 1.9 TDI 90 hp
From 1998 — end date unspecified
New Beetle Phase 2 — 1.9 TDI 90 hp
From 2001 — end date not specified
Passat — 1.9 TDI 110 hp
From 1997 — end date unspecified
Polo — 1.9 TDI 110 and 115 hp
From 2000 — end date unspecified
Sharan — 1.9 TDI 110 hp
From 1996 — end date unspecified
Sharan 2–1.9 TDI 116 hp
From 2000 — end date unspecified

Technical specifications

Product type: Central cartridge Cartridge Turbo
Engine: 1.9 TDI
displacement : 1.9 litres
Documented power ratings: 90, 100, 101, 110, 115 and 116 hp depending on the vehicle
Period covered: From 1995 onwards, depending on the role
Engine codes: Not specified

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Before fitting the cartridge Cartridge, identify and rectify the cause of the previous fault. Check the supply and return doil, the cleanliness of the ducts and the intake, and the absence of foreign objects. Also check the condition and compatibility of the housings that hold the cartridge.

Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions. If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the turbo part number d’origin, OEM and manufacturer part numbers, as well as the make, model, generation, engine type, power output and theYear of the vehicle. A single engine type may have several different configurations; the engine code must also be checked where available.

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number on your turbocharger d’origin’ using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.

If you are in any doubt, please contact us with the reference number shown on your turbocharger.

Product Details
ACG-053
3701803913067
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
