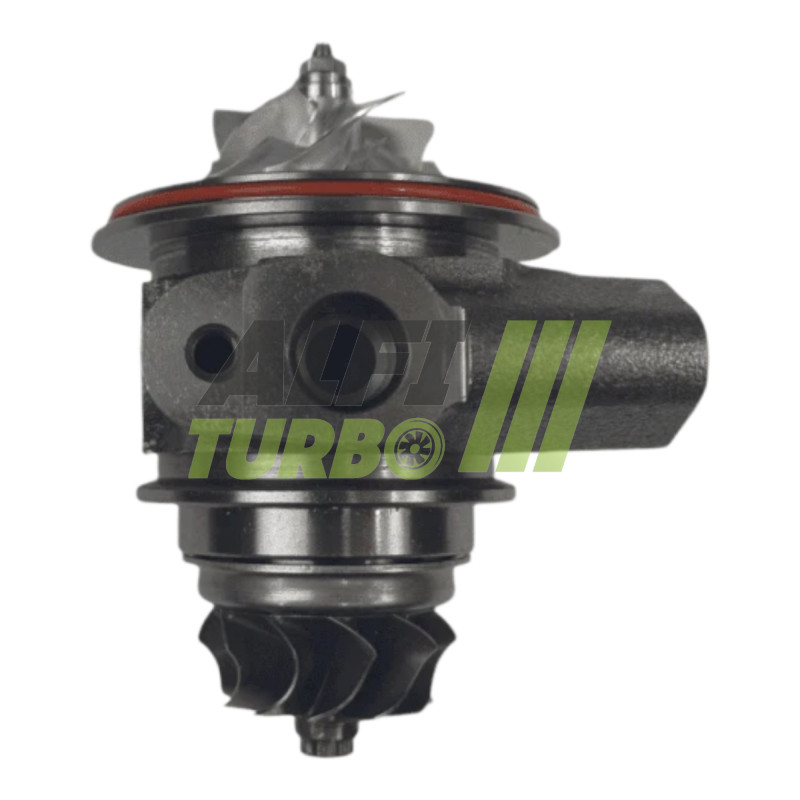

Turbo Cartridge 1.5 TFSI TSI eTSI 150 hp, 05E145701A, 05E145701H, 05E145701J, 05E145701K, 05E145702M, 49180-01615, 49180-01620

  • Online only
  • New product
New
  • Turbo Cartridge 1.5 TFSI TSI eTSI 150 hp, 05E145701A, 05E145701H, 05E145701J, 05E145701K, 05E145702M, 49180-01615, 49180-01620
ACM-231T
Year: March 2015 to an unspecified date
Power: 150 hp
displacement: 1.5 litres
Engine code: DADA, DPCA, DXDB, DFYA
Warranty: 2 years
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€71.52 VAT included

59.6 tax excl.

Quantity
Delivered the next day (if ordered before 5 pm)

Description

This central cartridge Cartridge is designed for certain 1.5-litre petrol engines producing 150 hp, with or without mild hybrid technology. Depending on the make and model, these engines are marketed under the names 1.5 TFSI, 35 TFSI, 35 TFSI Mild Hybrid, 1.5 TSI, 1.5 eTSI or 1.5 TSI e-TEC.

The applications apply to several models Audi, , Cupra, , SEAT, Škoda and Volkswagen, with engine codes DADA, DPCA, DXDB or DFYA, depending on the vehicle and its production period.

Turbo part numbers

OEM part numbers

05E145701A
05E145701AX
05E145701H
05E145701HX
05E145701J
05E145701JX
05E145701K
05E145701KX
05E145702M

Manufacturer’s part numbers

49180-01615
49180-01620
49180-01605
49180-01610
49180-01625
49180-01640
49180-01600

Compatible vehicles and assignments

Brand Model and engine type Year Energy Engine code Power
AUDI A1 Allstreet (GBH) 35 TFSI Since July 2022 Essence DPCA, DXDB 150 hp
AUDI A1 City Carver (GBH) 35 TFSI July 2019 to June 2022 Essence DPCA 150 hp
AUDI A1 Sportback (GBA) 35 TFSI Since September 2018 Essence DADA, DPCA, DXDB 150 hp
AUDI A3 (8V1, 8VK) 1.5 TFSI May 2017 to December 2017 Essence DADA 150 hp
AUDI A3 Cabriolet (8V7, 8VE) 1.5 TFSI May 2017 to October 2018 Essence DADA 150 hp
AUDI A3 Cabriolet (8V7, 8VE) 35 TFSI October 2018 to October 2020 Essence DADA, DPCA 150 hp
AUDI A3 Saloon (8-speed manual, 8-speed automatic) 1.5 TFSI May 2017 to October 2018 Essence DADA 150 hp
AUDI A3 Saloon (8-speed manual, 8-speed automatic) 35 TFSI October 2018 to October 2020 Essence DADA, DPCA 150 hp
AUDI A3 Saloon (8YS, 8YM) 35 TFSI Since April 2020 Essence DPCA, DXDB 150 hp
AUDI A3 Saloon (8YS, 8YM) 35 TFSI Mild Hybrid Since April 2020 Essence with light hybridisation DFYA, DXDB 150 hp
AUDI A3 Sportback (8VA, 8VF) 1.5 TFSI May 2017 to October 2018 Essence DADA 150 hp
AUDI A3 Sportback (8VA, 8VF) 35 TFSI October 2018 to October 2020 Essence DADA, DPCA 150 hp
AUDI A3 Sportback (8YA, 8YF) 35 TFSI Since November 2019 Essence DPCA, DXDB 150 hp
AUDI A3 Sportback (8YA, 8YF) 35 TFSI Mild Hybrid Since April 2020 Essence with light hybridisation DFYA, DXDB 150 hp
AUDI Q2 (GAB, GAG) 35 TFSI Since July 2018 Essence DADA, DPCA, DXDB 150 hp
AUDI Q3 (F3B) 35 TFSI Since August 2018 Essence DADA, DPCA, DXDB 150 hp
AUDI Q3 (F3B) 35 TFSI Mild Hybrid Since November 2019 Essence with light hybridisation DFYA 150 hp
AUDI Q3 Sportback (F3N) 35 TFSI Since September 2019 Essence DPCA, DXDB 150 hp
AUDI Q3 Sportback (F3N) 35 TFSI Mild Hybrid Since November 2019 Essence with light hybridisation DFYA, DXDB 150 hp
Cupra Formentor (KM7, KMP) 1.5 TSI Since November 2020 Essence DPCA 150 hp
Cupra Leon (KL1, KU1, KUG) 1.5 TSI Since September 2022 Essence DPCA, DXDB 150 hp
Cupra Leon Sportstourer (KL8, KU8, KUD) 1.5 TSI Since September 2022 Essence DPCA, DXDB 150 hp
SEAT Arona (KJ7, KJP) 1.5 TSI Since July 2017 Essence DADA, DPCA, DXDB 150 hp
SEAT Ateca (KH7, KHP) 1.5 TSI Since July 2018 Essence DADA, DPCA, DXDB 150 hp
SEAT Ateca (KH7, KHP) 1.5 TSI Since July 2018 Essence DADA, DPCA 150 hp
SEAT Ibiza V (KJ1, KJG) 1.5 TSI Since July 2017 Essence DADA, DPCA, DXDB 150 hp
SEAT Leon (5F1) 1.5 TSI September 2018 to August 2020 Essence DADA, DPCA 150 hp
SEAT Leon (KL1, KLG) 1.5 TSI Since November 2019 Essence DPCA, DXDB 150 hp
SEAT Leon (KL1, KLG) 1.5 eTSI Since November 2019 Essence with light hybridisation DFYA, DXDB 150 hp
SEAT Leon Sportstourer (KL8, KLD) 1.5 TSI Since March 2020 Essence DPCA, DXDB 150 hp
SEAT Leon Sportstourer (KL8, KLD) 1.5 eTSI Since March 2020 Essence with light hybridisation DFYA, DXDB 150 hp
SEAT Leon ST (5F8) 1.5 TSI September 2018 to August 2020 Essence DADA, DPCA 150 hp
SEAT Tarraco (KN2) 1.5 TSI September 2018 to May 2024 Essence DADA, DPCA, DXDB 150 hp
ŠKODA Fabia IV (PJ3) 1.5 TSI Since November 2021 Essence DPCA, DXDB 150 hp
ŠKODA Kamiq (NW4) 1.5 TSI Since July 2019 Essence DADA, DPCA, DXDB 150 hp
ŠKODA Karoq (NU7, ND7) 1.5 TSI Since July 2017 Essence DADA, DPCA, DXDB 150 hp
ŠKODA Karoq (NU7, ND7) 1.5 TSI Since July 2017 Essence DADA, DPCA 150 hp
ŠKODA Kodiaq I (NS6, NS7, NV7) 1.5 TSI Since July 2018 Essence DADA, DPCA 150 hp
ŠKODA Octavia III (5E3, NL3, NR3) 1.5 TSI February 2017 to October 2020 Essence DADA, DPCA 150 hp
ŠKODA Octavia III Estate (5E5, 5E6) 1.5 TSI February 2017 to October 2020 Essence DADA, DPCA 150 hp
ŠKODA Octavia IV (NX3, NN3, PV3) 1.5 TSI Since January 2020 Essence DPCA, DXDB 150 hp
ŠKODA Octavia IV (NX3, NN3, PV3) 1.5 TSI e-TEC Since November 2020 Essence with light hybridisation DFYA, DXDB 150 hp
ŠKODA Octavia IV Estate (NX5, PV5) 1.5 TSI Since November 2019 Essence DPCA, DXDB 150 hp
ŠKODA Octavia IV Estate (NX5, PV5) 1.5 TSI e-TEC Since November 2020 Essence with light hybridisation DFYA, DXDB 150 hp
ŠKODA Scala (NW1) 1.5 TSI Since February 2019 Essence DADA, DPCA, DXDB 150 hp
ŠKODA Superb III (3v3) 1.5 TSI February 2017 to June 2024 Essence DADA, DPCA 150 hp
ŠKODA Superb III Estate (3V5) 1.5 TSI March 2015 to June 2024 Essence DADA, DPCA 150 hp
VW Arteon (3H7, 3H8) 1.5 TSI Since November 2017 Essence DADA, DPCA 150 hp
VW Arteon Shooting Brake (3H9) 1.5 TSI Since August 2020 Essence DPCA 150 hp
VW Golf VII (5G1, BQ1, BE1, BE2) 1.5 TSI April 2017 to August 2020 Essence DADA, DPCA 150 hp
VW Golf VII Variant (BA5, BV5) 1.5 TSI April 2017 to August 2020 Essence DADA, DPCA 150 hp
VW Golf VIII (CD1, DA1) 1.5 TSI Since July 2019 Essence DPCA, DXDB 150 hp
VW Golf VIII (CD1, DA1) 1.5 eTSI Since December 2019 Essence with light hybridisation DFYA, DXDB 150 hp
VW Golf VIII Variant (CG5, DB5) 1.5 TSI Since August 2020 Essence DPCA, DXDB 150 hp
VW Golf VIII Variant (CG5, DB5) 1.5 eTSI Since December 2020 Essence with light hybridisation DFYA, DXDB 150 hp
VW Golf Sportsvan VII (AM1, AN1) 1.5 TSI May 2017 to August 2020 Essence DADA, DPCA 150 hp
VW Passat B8 (3G2, CB2) 1.5 TSI August 2018 to March 2024 Essence DADA, DPCA 150 hp
VW Passat B8 Variant (3G5, CB5) 1.5 TSI August 2018 to March 2024 Essence DADA, DPCA 150 hp
VW Polo VI (AW1, BZ1, AE1) 1.5 TSI October 2018 to August 2021 Essence DADA, DPCA 150 hp
VW Taigo (CS1) 1.5 TSI Since September 2021 Essence DPCA, DXDB 150 hp
VW T-Cross (C11, D31) 1.5 TSI Since January 2020 Essence DADA, DPCA, DXDB 150 hp
VW Tiguan (AD1, AX1) 1.5 TSI November 2018 to April 2024 Essence DADA, DPCA, DXDB 150 hp
VW Tiguan Allspace (BW2, BJ2) 1.5 TSI Since September 2018 Essence DADA, DPCA, DXDB 150 hp
VW Touran (5T1) 1.5 TSI Since November 2018 Essence DADA, DPCA, DXDB 150 hp
VW T-Roc (A11, D11) 1.5 TSI Since November 2017 Essence DADA, DPCA, DXDB 150 hp
VW T-Roc (A11, D11) 1.5 TSI May 2018 to November 2019 Essence DADA, DPCA 150 hp
VW T-Roc Cabriolet (AC7, AC8) 1.5 TSI Since December 2019 Essence DPCA, DXDB 150 hp

Please check compatibility using the original turbo part number, the engine code and the production period.

Technical specifications

Product type: central cartridge Cartridge
Engine options: 1.5 TFSI, 35 TFSI, 35 TFSI Mild Hybrid, 1.5 TSI, 1.5 eTSI and 1.5 TSI e-TEC
displacement : 1.5 litres
Power : 150 hp
Energy: petrol, with or without mild hybridisation, depending on the intended use
Engine codes: DADA, DPCA, DXDB, DFYA

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Before installing the cartridge Cartridge, , identify and rectify the cause of the previous fault. Check the oil supply and return, ensure the pipes are clean, check the inlet and ensure there are no foreign objects present. Prime the system in accordance with the relevant guidelines and follow the manufacturer’s instructions. If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number marked on your original turbocharger using the OEM and manufacturer part numbers listed on this data sheet. Then check the model, generation, engine type, production period and engine code. If in doubt, please contact us with the part number shown on your component.
