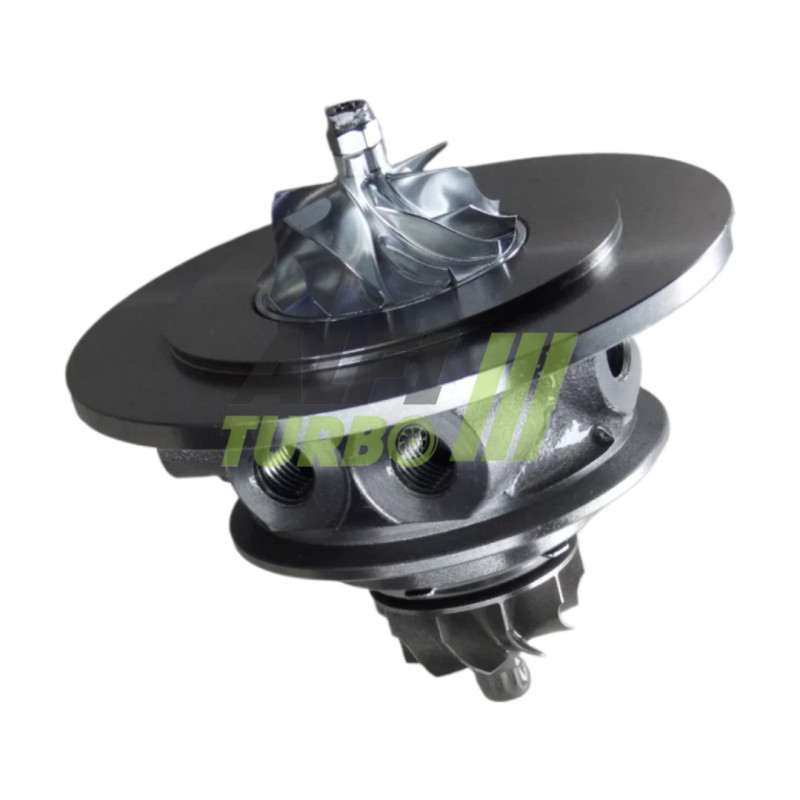

This hybrid central cartridge Cartridge is designed for the 1,.,6 T-GDI Hybrid engines with 230, hp, as listed in the specifications below. Its design allows the central rotating assembly of the turbocharger to be replaced whilst retaining the compatible casings.
The documented applications cover several models Hyundai and hybrid Kia s, notably the Grandeur, Santa Fe, Tucson, Sorento and Sportage.
No Stage 1, Stage 2 or Stage 2+ specifications, nor any wheel sizes, are documented for this reference. The data sheet therefore does not attribute any unverified mechanical characteristics or performance figures to them.
A hybrid Cartridge is based on a turbocharger architecture designed for to accommodate internal modifications. Depending on the modification, these may involve the compressor wheel, the blade geometry, the housings, the turbine wheel, the thrust bearing or the balancing.
The aim is d to adapt the compression capacity and the air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its compressor wheel.
MFS stands for ‘Milled From Solid’ and refers to a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in d'air flow. A standard MFS wheel may retain a geometry equivalent to that d'of the original.
A standard MFS impeller can be just as shiny as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air. The presence and specifications d'of an MFS impeller Performance are not specified for for this product.
The impeller diameter, the profile, height, width and arrangement of the blades all influence the compressor’s aerodynamic behaviour. The result also depends on the casings, the turbine impeller, the boost pressure and the engine management system. A larger impeller therefore does not automatically guarantee better performance and may alter the response time.
Rotor balancing helps to limit vibrations and mechanical stresses at high revs. A 360° thrust bearing can distribute axial forces more effectively when incorporated into a tuning package, but its presence and the balancing parameters d are not documented here.
Operating d a Cartridge hybrid system may require adjustments to the mapping, boost pressure, fuel delivery, intake air cooling d, the exhaust or the transmission. A hybrid setup does not automatically deliver a performance gain without consistent tuning and professional monitoring.
⚠️ WARNING — IMPORTANT BEFORE INSTALLATION
Before d installing the central cartridge, identify and rectify the cause of the previous fault. Check the oil supply and return d, the cleanliness of the pipes, the inlet and the absence of foreign objects. Check the condition and compatibility of the housings, ensure they are correctly oriented and prime the system in accordance with the applicable recommendations. Failure to rectify a lubrication fault may result in further turbocharger failure.
Check the turbo’s part number d, the original OEM and manufacturer part numbers, as well as the make, model, generation, engine type, power output, mountingYear and engine code.. An identical engine type may have several different mounting configurations.
⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine specification does not always guarantee compatibility. If in doubt, please contact us with the part number taken from your component.
ALFI TURBO specialises in the sale of turbochargers for for cars, commercial vehicles, heavy goods vehicles, construction machinery, agricultural machinery and boats: new turbochargers, remanufactured units, hybrid turbochargers, Cartridge and turbocharger spare parts. Over 20,000 items are available.
The turbocharger plays a vital role in the operation and performance d of a turbocharged engine. When a turbocharger needs replacing, it is important d to identify the exact part number before ordering.
ALFI TURBO supplies turbochargers for for a wide range of makes and engine types: cars, commercial vehicles, heavy goods vehicles, construction machinery, tractors and agricultural machinery, as well as various marine applications.
You can search for your turbo based on the vehicle or application, engine type, engine code, or directly using d an OEM or manufacturer part number found on your old turbocharger.
Browse our range of new turbochargers for for diesel and petrol engines. ALFI TURBO has over 5,500 new turbochargers in stock for covering a wide range of makes, engine types and turbocharger part numbers.
View new turbochargers →A standard exchange turbo allows you to replace a turbocharger whilst returning the old part where a deposit is required. Our catalogue includes numerous part numbers for from various makes and engine types.
View standard exchange turbochargers →Hybrid turbos are designed for set-ups requiring greater air flow d and higher performance potential than a standard set-up. Specifications depend on the turbo, its tuning and the engine configuration.
View hybrid turbos →The turbo Cartridge, also known as the central turbo cartridge, comprises the main rotating components of the turbocharger. ALFI TURBO has over 6,000 Cartridge for turbo part numbers.
View turbo Cartridge →Our catalogue covers a wide range of d applications fitted with d a turbocharged engine.
A single engine type may have been fitted with several different turbochargers depending on theYear, power output, engine version or technical evolution.. The application alone is therefore not always sufficient for to accurately identify the correct turbo.
Before ordering, note down the part numbers shown on the identification plate d of your old turbocharger. This may be d an OEM part number or d a part number from the turbo manufacturer.
Compare these part numbers with those listed on our product pages.. If in doubt, our team can help you verify the part number you are looking for before you place your order.
A loss of power, an unusual whistling noise, oil consumption d, abnormal smoke or poor engine performance may be linked to a turbocharger fault.
However, a fault that appears to be turbo-related may also stem d from a lubrication issue, d from contaminated oil, d from a foreign object, from the intake or exhaust systems, or d from another engine peripheral component.
It is therefore important to investigate the cause of the fault before fitting a new turbo or a new Cartridge.
