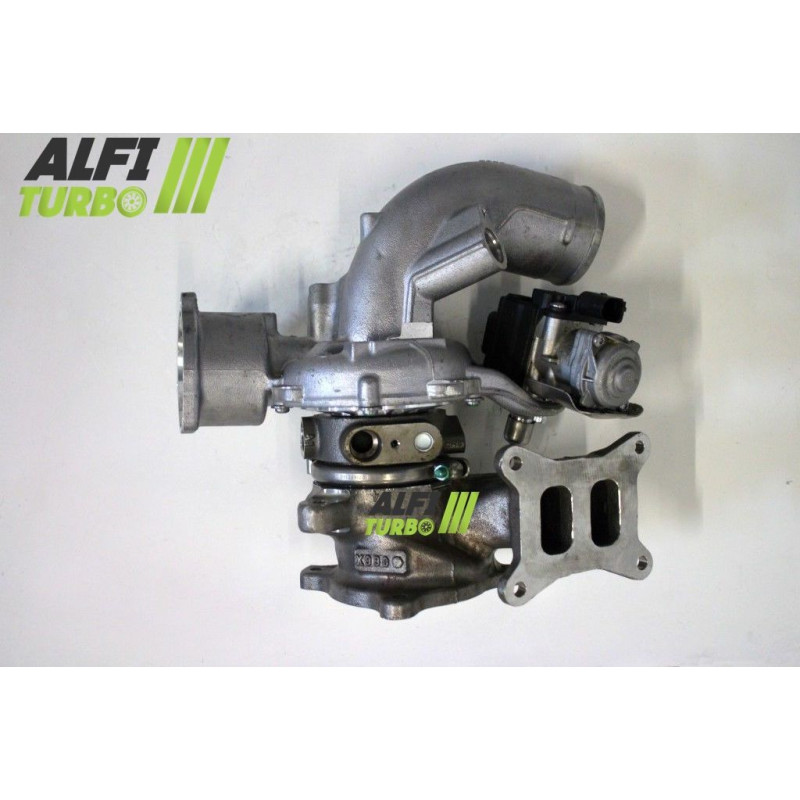

Turbo 2.0 TFSI 224, 230, 249 and 252 – 06L145722C, 06L145702B hp

  • Online only
Turbo 2.0 TFSI 224 230 249 252 hp, 06L145722C, 06L145702B, 06L145702Q, 06L145702M, 06L145702P, 06L145702F, 06L145702D
  • Turbo 2.0 TFSI 224 230 249 252 hp, 06L145722C, 06L145702B, 06L145702Q, 06L145702M, 06L145702P, 06L145702F, 06L145702D
06L145722C
Year: 2012 to 2017, by allocation
Power: 224, 230, 249 and 252 hp
displacement: 2.0 L
Engine code: CNCD, CNCE, CYPB, CYNB, CYPA
Warranty: 2 years
Exchange
Gasket kit
€441.00 VAT included

367.5 tax excl.

Quantity

Description

Turbocharger designed for several engine variants Audi 2.0 TFSI producing 224, 230, 249 or 252 hp. The documented applications include, in particular, the Audi A4, A5, A6, A7 Sportback and Q5, with or without quattro transmission depending on the version.

Compatibility must be confirmed based on the original turbo part number d, the engine code, the power output and the vehicle’s production period.

Turbo part numbers

OEM part numbers

06L145722C
06L145702B
06L145702Q
06L145702M
06L145702P
06L145702F
06L145702D
06L145702FV
06L145702DV
06L145702MV
06L145702FX
06L145702DX
06L145702MX
06L145702PV
06L145702QV
06L145722CV
06L145702PX
06L145702QX
06L145722CX

Compatible vehicles and assignments

Audi
A4 (8K2, B8) 2.0 TFSI — 224 hp
2.0 TFSI — 2013 to 2015
Engine code : CNCD
A4 (8K2, B8) 2.0 TFSI quattro — 224 hp
2.0 TFSI quattro — 2013 to 2015
Engine code : CNCD
A4 Allroad (8KH, B8) 2.0 TFSI quattro — 224 hp
2.0 TFSI quattro — 2013 to 2016
Engine code : CNCD
A4 Avant (8K5, B8) 2.0 TFSI — 224 hp
2.0 TFSI — 2013 to 2015
Engine code : CNCD
A4 Avant (8K5, B8) 2.0 TFSI quattro — 224 hp
2.0 TFSI quattro — 2013 to 2015
Engine code : CNCD
A5 (8T3) 2.0 TFSI — 224 hp
2.0 TFSI — 2013 to 2016
Engine code : CNCD
A5 (8T3) 2.0 TFSI quattro — 224 hp
2.0 TFSI quattro — 2013 to 2016
Engine code : CNCD
A5 (8T3) 2.0 TFSI — 230 hp
2.0 TFSI — 2015 to 2017
Engine code : CNCE
A5 (8T3) 2.0 TFSI quattro — 230 hp
2.0 TFSI quattro — 2015 to 2017
Engine code : CNCE
A5 Cabriolet (8F7) 2.0 TFSI — 224 hp
2.0 TFSI — 2013 to 2016
Engine code : CNCD
A5 Cabriolet (8F7) 2.0 TFSI quattro — 224 hp
2.0 TFSI quattro — 2013 to 2016
Engine code : CNCD
A5 Cabriolet (8F7) 2.0 TFSI — 230 hp
2.0 TFSI — 2015 to 2017
Engine code : CNCE
A5 Cabriolet (8F7) 2.0 TFSI quattro — 230 hp
2.0 TFSI quattro — 2015 to 2017
Engine code : CNCE
A5 Sportback (8TA) 2.0 TFSI — 224 hp
2.0 TFSI — 2013 to 2016
Engine code : CNCD
A5 Sportback (8TA) 2.0 TFSI quattro — 224 hp
2.0 TFSI quattro — 2013 to 2016
Engine code : CNCD
A5 Sportback (8TA) 2.0 TFSI — 230 hp
2.0 TFSI — 2015 to 2017
Engine code : CNCE
A5 Sportback (8TA) 2.0 TFSI quattro — 230 hp
2.0 TFSI quattro — 2015 to 2017
Engine code : CNCE
A6 (4G2, 4GC, C7) 2.0 TFSI quattro — 249 hp
2.0 TFSI quattro — 2015, end date unspecified
Engine code : CYPB
A6 (4G2, 4GC, C7) 2.0 TFSI — 252 hp
2.0 TFSI — from 09/2014, end date unspecified
Engine codes: CYNB, CYPA
A6 (4G2, 4GC, C7) 2.0 TFSI quattro — 252 hp
2.0 TFSI quattro — 2014, end date unspecified
Engine codes: CYNB, CYPA
A6 Avant (4G5, 4GD, C7) 2.0 TFSI quattro — 249 hp
2.0 TFSI quattro — 2015, end date unspecified
Engine code : CYPB
A6 Avant (4G5, 4GD, C7) 2.0 TFSI — 252 hp
2.0 TFSI — 2014, end date unspecified
Engine codes: CYNB, CYPA
A6 Avant (4G5, 4GD, C7) 2.0 TFSI quattro — 252 hp
2.0 TFSI quattro — 2015, end date unspecified
Engine code : CYPA
A7 Sportback (4GA, 4GF) 2.0 TFSI quattro — 249 hp
2.0 TFSI quattro — 2015, end date unspecified
Engine code : CYPB
A7 Sportback (4GA, 4GF) 2.0 TFSI — 252 hp
2.0 TFSI — 2014, end date unspecified
Engine code : CYPA
A7 Sportback (4GA, 4GF) 2.0 TFSI quattro — 252 hp
2.0 TFSI quattro — 2015, end date unspecified
Engine codes: CYNB, CYPA
Q5 (8RB) 2.0 TFSI quattro — 224 hp
2.0 TFSI quattro — 2012, end date unspecified
Engine code : CNCD
Q5 (8RB) 2.0 TFSI quattro — 230 hp
2.0 TFSI quattro — 2015, end date unspecified
Engine code : CNCE

Technical specifications

Product type: Turbo
Engine: 2.0 TFSI
displacement: 2.0 L
Power outputs: 224, 230, 249 and 252 hp
Engine codes: CNCD, CNCE, CYPB, CYNB, CYPA
Documented production periods: 2012 to 2017 depending on application

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d. Check that the pipes are clean, the inlet and that there are no foreign objects. Carry out priming in accordance with the applicable recommendations and follow the manufacturer’s instructions.

Failure to rectify a lubrication fault may result in the turbocharger failing again.

How do you identify the correct turbo?

Check the turbo part number d, the original OEM part numbers, the model, generation, body style, engine type, power output,Year and engine code.. A single engine type may be fitted with several different turbo configurations.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine does not always guarantee compatibility.

If in doubt, please contact us with the part number from your turbo.

Product Details
06L145722C
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
