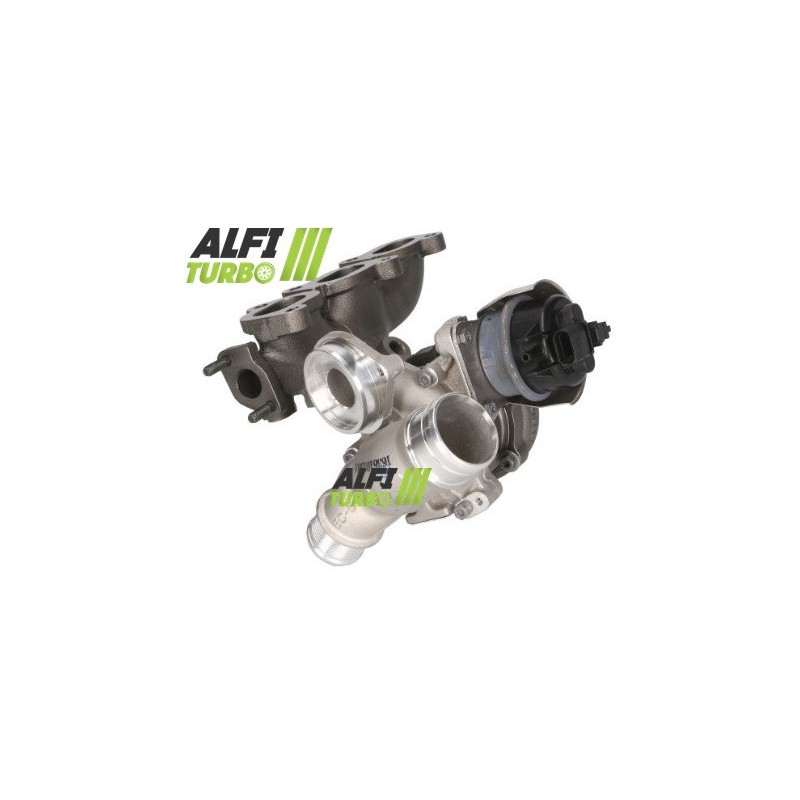

HYB30-30M-003
Year: from 2014, depending on the vehicle
Power: 75, 90 and 105 hp
displacement: 1,422 ccm
Engine code: CUSA, CUSB
Exchange
Gasket kit
Preparation course
€537.00 VAT included

447.5 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This Stage 2 hybrid turbocharger has been developed for for the VAG 1.4 TDI engines, documented in 75, 90 and 105 hp. Its design combines a 42 mm MFS Performance oversized compressor wheel, a dre-profiled intake housing and a 360° bearing retainer.

It is specifically designed for certain Audi A1, Seat Ibiza, Skoda Fabia and Volkswagen Polo V models fitted with engine codes CUSA or CUSB. It is designed to be fitted without any mechanical modifications d’adaptation, provided the original turbo part numbers are checked carefully d.

Tuning kit available — Stage 2

Stage 2
Compressor wheel: MFS Performance high-flow oversized 42 mm
dintake housing: re-profiled for accommodate the impeller oversized
Bearing thrust ring: 360°
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

The forged aluminium impeller is claimed to be lighter, larger and taller than the original one d. The documented modification aims for a 15 per cent increase in compression capacity. However, the final performance depends on the mapping and the overall engine configuration.

What is a hybrid turbo?

A hybrid turbo retains an architecture suited to the vehicle whilst incorporating internal modifications designed to enhance its performance. Depending on the modification, these may involve the compressor wheel, the housings, the turbine wheel, the thrust bearing system or the balancing.

On this Stage 2, the documented modification focuses on the 42 mm MFS Performance compressor wheel, the reprofiling of the dintake housing and the use dof a 360° thrust bearing. The aim is d’to adapt the compression capacity and air flow rate d’without specifying a predefined final engine power output.

A hybrid turbocharger is not defined solely by the appearance of its compressor wheel: the geometry, the machining of the components and the overall consistency of the assembly are crucial.

MFS compressor wheel: standard or ‘ Performance ’?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow d. A standard MFS wheel may retain a geometry equivalent to that dof the original.

An MFS wheel Performance has a geometry tailored to the tuning objective. In this case, the wheel shown is oversized 42 mm and paired with a reprofiled d’intake housing.

A standard MFS impeller can be just as effective as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d’air. A higher airflow can contribute to power output with a suitably tuned engine.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and the arrangement of its blades influence its aerodynamic behaviour and the volume dof air displaced under certain operating conditions.

The result also depends on the compressor housing, the turbine section, the boost pressure and the engine management system. A larger impeller therefore does not automatically guarantee better performance and may alter the response time as well as the range dof optimal operation.

Reliability and balancing of the hybrid turbo

The documented 360° thrust bearing distributes axial forces over a wide surface area. It helps the bearing system adapt to the stresses of the modification, without making the turbocharger insensitive to assembly or lubrication faults.

The rotor is balanced at high speed, up to 150,000 rpm, on a Cimat VSR test bench. This balancing is designed to minimise vibrations and mechanical stresses during operation.

Engine remapping and tuning

The engine management system must be adapted for to make full use of the characteristics of this hybrid turbo. The wastegate must be adjusted during the ECU remapping.

Depending on the desired outcome, the fuel injection, boost pressure, exhaust system, cooling, intake and transmission must be checked or adjusted. The turbo alone does not guarantee a power gain without a coherent engine setup.

Turbo specifications

OEM part numbers

04B253019G
04B253019F
04B253019A
04B253019 V250
04B253020
04B253019
04B253019 V200
04B253020X

Manufacturer’s part numbers

BV30-66A-0002
BV30-66A-0003
16309880003
16309880001
16309700002
16309700001
16309700000
16309700003
16309880002
16309880000
54309400148

Compatible vehicles and assignments

Audi
A1 1.4 TDI — 90 hp
1422 ccm — 11/2014 to unspecified end
Engine codes: CUSA, CUSB
Seat
Ibiza 1,.,4 TDI — power unspecified
Year 2015 documented, end date unspecified
Engine codes: CUSA, CUSB
Skoda
Fabia 1.4 TDI — power output unspecified
Year 2014 documented, end date unspecified
Engine codes: CUSA, CUSB
Volkswagen
Polo V 1.4 TDI — 75 hp
1,422 ccm — 04/2014 to unspecified end date
Engine codes: CUSA, CUSB
Polo V 1,.,4 TDI — 90 hp
1,422 ccm — 04/2014 to an unspecified date
Engine codes: CUSA, CUSB
Polo V 1,.,4 TDI — 105 hp
1,422 ccm — 04/2014 to an unspecified date
Engine codes: CUSA, CUSB

Additional technical specifications

Product type: hybrid turbo
Engine: 1,.,4 TDI
displacement Documented: 1,422 ccm
Documented power outputs: 75, 90 and 105 hp
Engine codes: CUSA, CUSB
Fitting: designed for installation without mechanical modifications or d’adaptation

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous turbocharger’s failure. Check the lubrication circuit, the oil supply and return das well as the cleanliness of the pipes.

Check the intake and ensure there are no foreign objects present. Carry out the priming procedure in accordance with the applicable recommendations and follow the manufacturer’s instructions.

Engine management and wastegate adjustment must be carried out by a qualified professional for and must be adapted to the Stage 2 set-up.

Unresolved lubrication issues may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the part number marked on the original turbo d, then compare the OEM and manufacturer part numbers.. Also check the make, model, generation, engine type, power output at hp, installation period and engine code.. An identical engine type does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, request a compatibility check before placing your order.
