Hybrid Turbo 2.4 D 163 hp – 723167, 716214

  • Online only
Hybrid

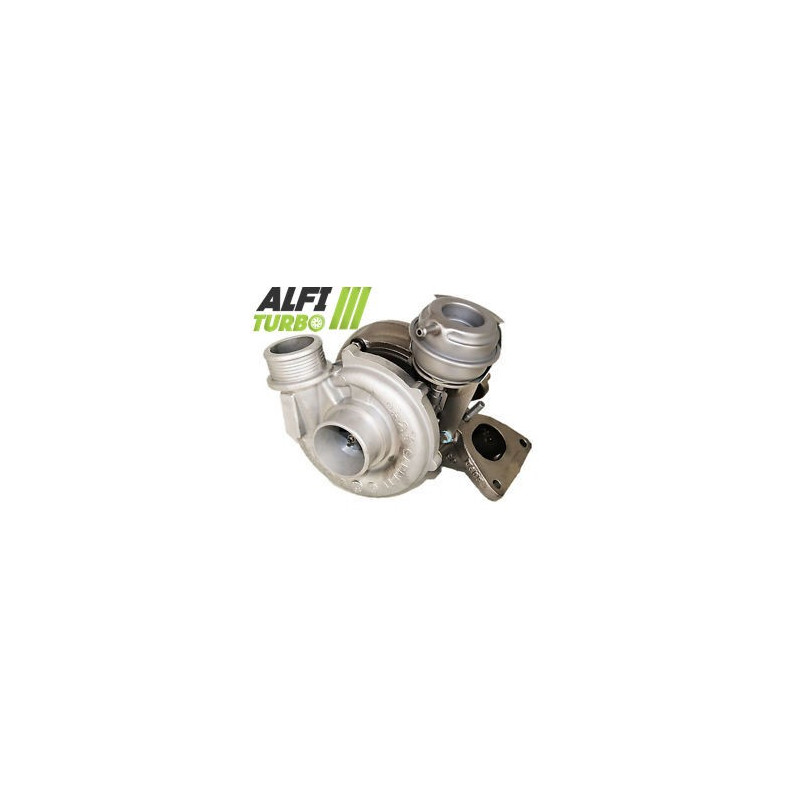

Hybrid Turbo 2.4 D 163 723167
  • Hybrid Turbo 2.4 D 163 723167
  • Hybrid Turbo 2.4 D 163 723167
  • Hybrid Turbo 2.4 D 163 723167
723167
Year: From 1997 onwards, depending on the vehicle
Power: 116, 122, 130, 163 and 200 hp depending on the application
displacement: 2.4 L
Engine code: Not specified
Gasket kit
Preparation course
€403.20 VAT included

336 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo is designed for an installation plug & play and offers three levels of preparation. Depending on the course chosen, the modifications relate to the MFS compressor wheel and the casing dthe inlet, the bearing stop and, at the outermost stage, the turbine section.

The documented assignments relate to several Volvo C70, S60, S80, V70, XC70 and XC90 models fitted with d’a 2-cylinder engine.4. The benchmark for turbochargers dThe origin must be verified before any order is placed.

Available products — Stage 1, Stage 2 and Stage 3

Stage 1
Compressor wheel: High-capacity MFS
Bearing stop: 360°
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

This modification enhances the compressor wheel whilst retaining a design geared towards direct integration. Its design is intended to adjust the compression capacity and flow rate dturbocharger air.

Stage 2
Compressor wheel: High-capacity MFS oversized
Carter d’Admission:’ re-profiled for to receive the new wheel oversized
Bearing stop: 360°
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

The Stage 2 incorporates a compressor wheel oversized to a casing d’re-profiled intake’. This adaptation makes it possible to d…to accommodate the new geometry and may alter the flow rate d’air and the behaviour of the compressor.

Stage 3
Compressor wheel: High-capacity MFS oversized
Carter d’Admission:’ re-profiled for to receive the new wheel oversized
Bearing stop: 360°
Turbine wheel: high-speed oversized
Turbine casing: re-profiled for to receive the new wheel oversized
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

This procedure is carried out on the compressor and turbine sides. The wheel arches are reshaped to accommodate the oversized wheels. Whilst this configuration may offer higher flow capacity, it may also affect response time and requires consistent engine preparation.

What is a hybrid turbo ?

A hybrid turbo is based on a specially adapted turbocharger design for to receive internal components that differ from the configuration d’origin’. Depending on the course, the preparation may involve the compressor wheel, the casings, the turbine wheel, the thrust bearing system and balancing.

The aim is d’adjust the compression capacity and flow rate’ d’air to meet needs dengine tuning. However, a hybrid turbocharger is not defined solely by the appearance of its compressor wheel: the geometry of the wheels, the machining of the housings and the overall balance of the unit are all crucial factors.

MFS compressor wheel: standard or Performance ? ?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process does not, on its own, guarantee an increase in throughput dair. A standard MFS wheel can retain a geometry close to its original shape.

An MFS wheel Performance can be designed with a geometry suited to the intended purpose, in particular through its profile or dimensions. In the description of this product, the wheel is described as being lighter, larger and taller than the one d’original; the technical data sheet states an additional compression capacity of 15 per cent.

A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more dair. A higher flow rate may go hand in hand with an increase in power when the engine has been properly tuned, although this alone does not guarantee the final result.

Why does the geometry of the blades affect the flow rate? d’air ?

The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades all influence its aerodynamic behaviour. The right geometry can move more dair within certain operating ranges.

The result also depends on the casings, the turbine wheel, the boost pressure and the engine management system. A larger wheel is therefore not automatically more effective in all conditions and may affect the turbocharger’s response time.

Reliability and balancing of the hybrid turbocharger

The 360° stop, as documented in the three training courses, distributes axial forces over a wide area. It helps to adapt the bearing system to operational stresses, without making the turbocharger immune to poor lubrication or incorrect fitting.

Each configuration benefits from d’high-speed balancing at 150,000 rpm on a Cimat VSR test bench’. The aim of this operation is to minimise vibrations and mechanical stresses on the rotor.

Engine remapping and tuning

It may be necessary to adjust the engine mapping and boost pressure control for make the most of the hybrid turbo’s features. The wastegate must be adjusted when remapping the ECU.

Depending on the level of preparation, the fuel injection, exhaust, cooling, intake, clutch or transmission must also be checked and, if necessary, adjusted. The editing dA hybrid turbo does not automatically guarantee a power boost without proper preparation.

Turbo part numbers

OEM part numbers

8603296
8627752
8653122
8653146
8689592

Manufacturer’s part numbers

723167-0001
723167-0002
723167-0003
723167-0004
723167-1
723167-2
723167-3
723167-4
723167-5004S
716214

Compatible vehicles and assignments

Volvo
C70 2.4 i — 200 hp
2.4 i — from 1997, end date unspecified
Engine code : not specified
S60 2.4 TDI — 116 hp
2.4 TDI — from 2000, end date unspecified
Engine code : not specified
S60 2.4 TDI — 122 hp
2.4 TDI — from 2000, end date unspecified
Engine code : not specified
S60 2.4 TDI — 130 hp
2.4 TDI — from 2000, end date unspecified
Engine code : not specified
S60 2.4 TDI — 163 hp
2.4 TDI — from 2000, end date unspecified
Engine code : not specified
S80 2.4 TDI — 130 hp
2.4 TDI — from 1998, end date unspecified
Engine code : not specified
S80 2.4 TDI — 163 hp
2.4 TDI — from 1998, end date unspecified
Engine code : not specified
V70 2.4 TDI — 130 hp
2.4 TDI — from 2000, end date unspecified
Engine code : not specified
V70 2.4 TDI — 163 hp
2.4 TDI — from 2000, end date unspecified
Engine code : not specified
XC70 2.4 TDI — 163 hp
2.4 TDI — from 2000, end date unspecified
Engine code : not specified
XC90 2.4 TDI — 163 hp
2.4 TDI — from 2002, end date unspecified
Engine code : not specified
XC90 2.4 TDI — 163 hp
2.4 TDI — from 2007, end date unspecified
Engine code : not specified

Additional technical specifications

Product type: hybrid turbo
Editing: plug & play, with no documented external changes
displacement documented: 2.4 L
Documented power ratings: 116, 122, 130, 163 and 200 hp depending on the purpose
Documented periods: from 1997 onwards, depending on the vehicle
Engine codes: not specified

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Before installation, identify and rectify the cause of the previous fault. Check the lubrication circuit, the supply and the return d’the oil and the cleanliness of all the pipes’.

Check the intake and ensure there are no foreign objects present. Carry out the priming in accordance with the relevant guidelines and follow the vehicle manufacturer’s instructions.

If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the part number marked on the turbocharger dthe original, then compare it with the OEM and manufacturer’s part numbers listed on this sheet. Also check the make, model, engine type and power output in hp, theYear installation details and, where available, the engine code.

The fact that two motors are identical does not always guarantee compatibility, as there may be several different configurations for the same vehicle.

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number on your turbocharger d’origin’ using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.

If in doubt, please contact our team, quoting the reference number clearly visible on the plate dIdentifying your turbocharger.
