Hybrid Turbo 1.3 CDTI 90 hp – 55197838, 54359700015

  • Online only
Hybrid

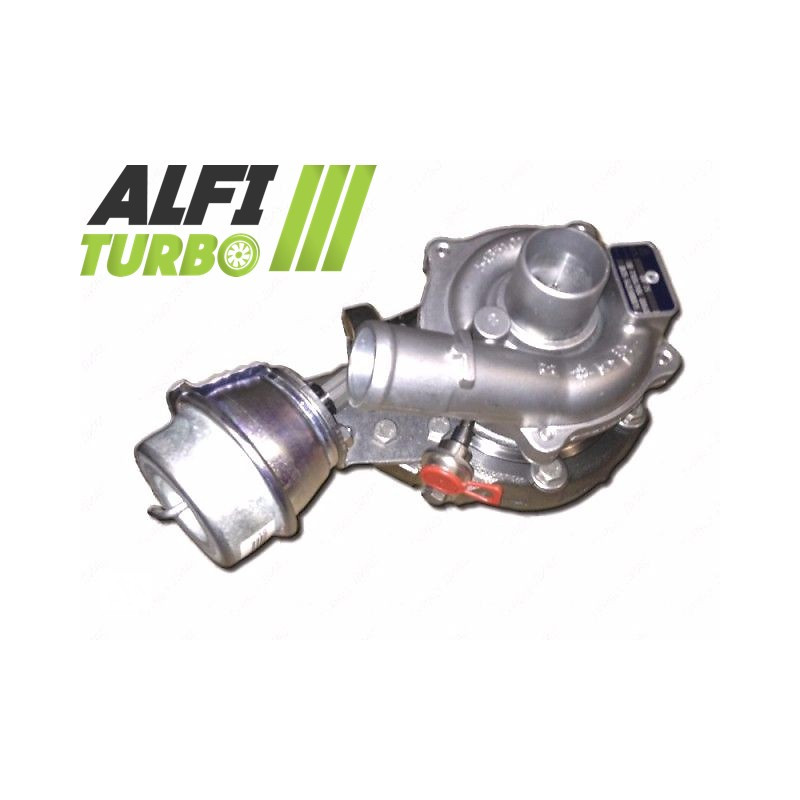

Hybrid Turbo 1.3 cdti 90 55197838, 93184183 54359700015, 54359800015, 54359880015, 54359900015
  • Hybrid Turbo 1.3 cdti 90 55197838, 93184183 54359700015, 54359800015, 54359880015, 54359900015
  • Hybrid Turbo 1.3 cdti 90 55197838, 93184183 54359700015, 54359800015, 54359880015, 54359900015
  • Hybrid Turbo 1.3 cdti 90 55197838, 93184183 54359700015, 54359800015, 54359880015, 54359900015
54359700015
Year: From 2004 onwards, depending on the vehicle
Power: 90 hp
displacement: 1,.,3
Engine code: Not specified
Gasket kit
Preparation course
€403.20 VAT included

336 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbocharger for, designed for the 1.3 CDTI 90 hp engine, is available in three performance levels.. Its design allows for Installation without modification, whilst its internal components are adapted to the chosen performance level in order to adjust the compression ratio and dair flow rate.

It is designed for the applications Opel Astra H, Astra MKV and Corsa D documented below. Consistent tuning of the engine management system and peripherals is required for to make the most of the turbo’s characteristics.

Available tuning options — Stage 1, Stage 2 and Stage 3

Stage 1
Compressor wheel: MFS high-flow
Thrust bearing system: 360° thrust bearing
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

This modification primarily affects the compressor impeller. The documented MFS impeller is lighter, larger and taller than the original one d, with a claimed 15 per cent increase in compression capacity.

Stage 2
Compressor wheel: MFS high-flow oversized
dintake housing: Reprofiled for accommodate the new impeller oversized
Thrust bearing system: 360° thrust bearing
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

The Stage 2 combines a oversized compressor impeller with a reprofiled dintake housing. This modification is designed to correctly accommodate the new impeller and increase the compressor’s air flow d.

Stage 3
Compressor impeller: MFS high-flow oversized
d’ intake housing: Reprofiled for to accommodate the new impeller oversized
Turbine impeller: High flow oversized
Turbine housing: Reprofiled for accommodate the new impeller oversized
Bearing system: 360° thrust bearing
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

Stage 3 modifies the compressor and turbine sides. The resulting performance depends on the overall engine configuration, and increasing the size of the impellers may also alter the response time and the range d’optimal operation.

What is a hybrid turbo?

A hybrid turbo utilises a turbocharger architecture adapted for to accommodate modified internal components. Depending on the upgrade stage, modifications may involve the compressor wheel, the housings, the turbine wheel, the thrust bearing system or balancing.

The aim is dto adapt the compression capacity and air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its compressor wheel: the geometry of the parts and how they are combined determine its performance.

MFS compressor wheel: standard or Performance?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow rate d. A standard MFS wheel may retain a geometry equivalent to that dof the original.

A standard MFS impeller can be just as shiny as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d’air. An Performance impeller may have a profile or dimensions adapted to the tuning objective when such modifications are planned.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air. Its diameter, profile, height, width and arrangement of its blades all influence its aerodynamic behaviour. The result also depends on the casings, the turbine, the boost pressure and the engine tuning. A larger impeller therefore does not automatically guarantee a better result in all conditions.

Reliability and balancing of the hybrid turbo

The 360° thrust bearing distributes axial forces over a wide surface area. Each stage presented is fitted with one. The rotor is balanced at high speed, up to 150,000 rpm, on a Cimat VSR test bench to minimise vibrations and mechanical stresses. This balancing does not compensate for incorrect fitting or inadequate lubrication.

Engine remapping and preparation

Operating da hybrid turbo requires appropriate engine management. The mapping, boost pressure, fuel injection, cooling, exhaust and, depending on the configuration, the transmission must be checked or adjusted. The wastegate must be adjusted when remapping the ECU. Fitting the turbo alone does not guarantee a power gain.

Turbo part numbers

OEM part numbers

55197838
93184183

Manufacturer part numbers

54359700015
54359800015
54359880015
54359900015

Compatible vehicles and applications

Opel
Astra H 1.3 CDTI — 90 hp
1-.-3 CDTI — from 2004, end date unspecified
Engine code: not specified
Astra MKV 1.3 CDTI — 90 hp
1.3 CDTI — from 2004, end date unspecified
Engine code: not specified
Corsa D 1.3 CDTI — 90 hp
1.3 CDTI — from 2005, end date unspecified
Engine code: not specified

Additional technical specifications

Product type: Hybrid Turbo
Engine: 1,., 3 CDTI
Power: 90 hp
Installation: No modifications required
Engine codes: Not specified

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before installation, identify and rectify the cause of the previous fault. Check the lubrication circuit, the oil supply and return lines d, the cleanliness of the pipes, the inlet and the absence of foreign objects.. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions.. An uncorrected lubrication fault may result in further turbocharger failure.

How do you identify the correct turbo?

Check the turbo’s part number d, the original OEM and manufacturer part numbers, as well as the make, model, generation, engine type, power output,Year and engine code.. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the part number from your turbocharger.

Product Details
54359700015
Hybrid
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
