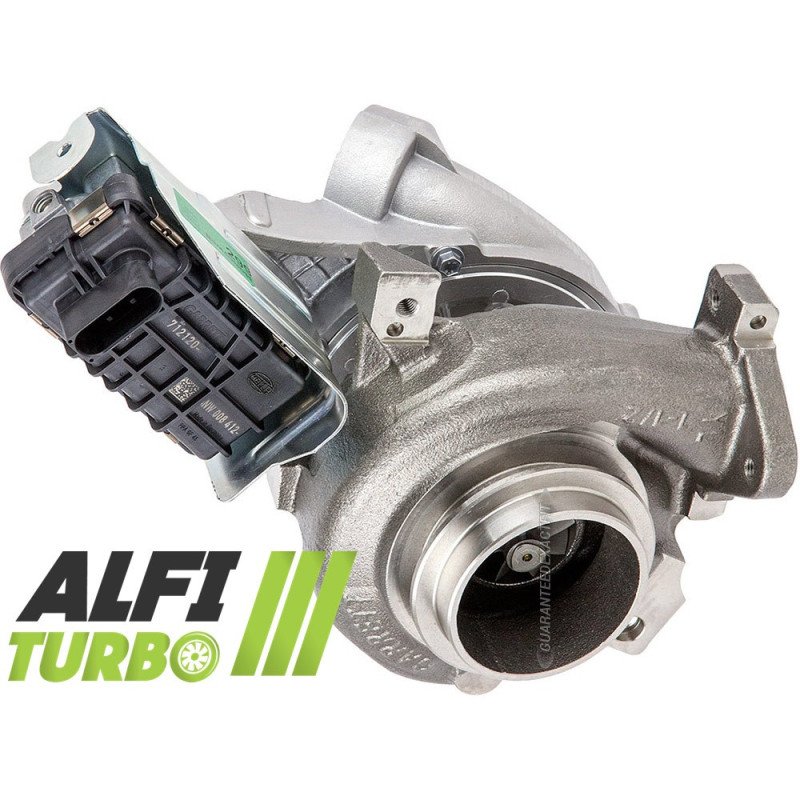

Hybrid Turbo 2.7 CDI 154 736088

  • Online only
Hybrid
Turbo New 2.7 CDI 154 736088
  • Turbo New 2.7 CDI 154 736088
  • Hybrid Turbo 2.7 CDI 154 736088
  • Hybrid Turbo 2.7 CDI 154 736088
736088
Year: From 2004
Power: 156 hp
displacement: 2.7 L
Engine code: Not specified
Gasket kit
Preparation course
Exchange
€524.99 VAT included

437.49125 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbocharger for, designed for the Mercedes 2.7 CDI, features internal modifications to optimise air flow dand compression capacity.. Depending on the selected upgrade package, the configuration includes a high-flow MFS compressor wheel, re-profiled housings and, at the most advanced level, a turbine wheel oversized.

It is designed for the Sprinter 216, 316, 416 and 616 Mercedes s from the 901–904 series in the 156 version hp, from 2004 onwards.. Installation is designed to require no modification d’adaptation provided the part numbers match the original fitment d.

Available kits — Stage 1, Stage 2 and Stage 3

Stage 1
Compressor wheel: MFS high-flow
Thrust bearing system: 360° thrust bearing
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

This modification affects the compressor section to dadapt the air flow rate dwhilst retaining a configuration designed for for installation without requiring any modifications dadaptation.

Stage 2
Compressor impeller: MFS high-flow oversized
d’ intake housing: Reprofiled for accommodate the new impeller oversized
Thrust bearing system: 360° thrust bearing
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

The Stage 2 combines a oversized compressor impeller with a reprofiled dintake casing. This adaptation is designed to ensure the new impeller geometry and its aerodynamic environment work together.

Stage 3
Compressor blade: MFS high-flow oversized
dintake casing: Reprofiled for accommodate the new impeller oversized
Bearing system: 360° thrust bearing
Turbine impeller: High-flow oversized
Turbine casing: Reprofiled for ly to accommodate the new impeller oversized
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

This configuration alters the compressor and turbine sides. The resulting performance depends on the overall engine set-up and cannot be assessed based solely on the size of the impellers.

What is a hybrid turbo?

A hybrid turbo utilises a turbocharger architecture adapted for to accommodate internal components that differ from the original configuration d. Depending on the tuning stage, modifications may involve the compressor wheel, the housings, the turbine wheel, the thrust bearing and the balancing.

The aim is dto adapt the compression capacity and the air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its impeller: the geometry of the components and how they are combined determine its behaviour.

MFS compressor wheel: standard or Performance?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow rate d. A standard MFS wheel may retain a geometry equivalent to that dof the original.

An MFS wheel Performance can be given a geometry tailored to the tuning objective. In this specification sheet, the MFS wheel is described as a forged aluminium wheel, lighter, larger and taller than the d’original, with a claimed 15 per cent higher compression capacity.

A standard MFS impeller can be just as shiny as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d’air. A higher airflow can contribute to power output only when combined with appropriate engine tuning.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and arrangement of its blades all influence its aerodynamic behaviour. The result also depends on the housings, the turbine wheel, the boost pressure and the engine management system. A larger wheel does not automatically guarantee better performance and may alter the response time.

Reliability and balancing of the hybrid turbocharger

The 360° bearing stop present on each stage helps to distribute the axial forces exerted on the rotating assembly. It does not, however, replace dthe need for proper lubrication or dcorrect installation.

The rotor is balanced at high speed, up to 150,000 rpm, on a Cimat VSR test bench. This process aims to minimise vibrations and mechanical stresses, without compensating for any faults d’installation or d’oil supply.

Engine remapping and preparation

The operation dof a hybrid turbo requires appropriate engine management. The mapping, boost pressure, injection, exhaust and cooling must be checked in accordance with the level of tuning. The wastegate must be adjusted when the ECU is remapped. The transmission and other vehicle components may also require inspection.

Turbo part numbers

OEM part numbers

A6470900280
6470900280

Manufacturer part numbers

736088-3
736088-1

Compatible vehicles and applications

Mercedes
Sprinter 216 (901–904) — 156 hp
2.7 CDI — from 2004, end date unspecified
Engine code : unspecified
Sprinter 316 (901–904) — 156 hp
2.7 CDI — from 2004, end date unspecified
Engine code : unspecified
Sprinter 416 (901–904) — 156 hp
2.7 CDI — from 2004, end date unspecified
Engine code : unspecified
Sprinter 616 (901–904) — 156 hp
2.7 CDI — from 2004, end date unspecified
Engine code : unspecified

Additional technical specifications

Product type: Hybrid Turbo
Engine: 2.7 CDI
displacement: 2.7 L
Power Documented: 156 hp
Production period: From 2004, end unspecified
Engine code: Not specified

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before fitting, identify and rectify the cause of the previous fault. Check the lubrication circuit, the oil supply and return lines d, the cleanliness of the pipes, and check the inlet for any foreign objects.. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions.. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the part number marked on the turbo d– the original part number, the OEM and manufacturer part numbers, as well as the make, model, 901–904 series, engine type 2.7 CDI, power output 156 hp and theYear for fitting.. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the part number clearly visible on your turbocharger.

Product Details
736088
Hybrid
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
