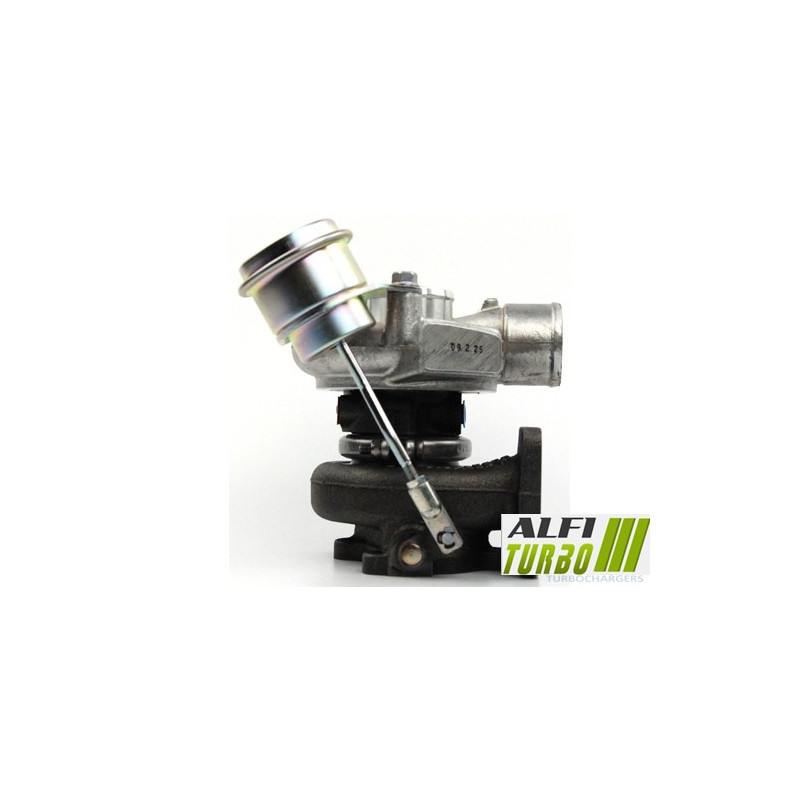

Hybrid Turbo 3.1 TD 140 hp – 35242077F, 49135-05500

Hybrid
Hybrid Turbo 3.1 TD 140, 35242077F, 49135-05500
  • Hybrid Turbo 3.1 TD 140, 35242077F, 49135-05500
  • Hybrid Turbo 3.1 TD 140, 35242077F, 49135-05500
  • Hybrid Turbo 3.1 TD 140, 35242077F, 49135-05500
49135-05500
Year: Not specified
Power: 140 hp
displacement: 3.1 L
Engine code: Not specified
Gasket kit
Preparation course
Exchange
€472.50 VAT included

393.75 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo for, with a 3., 1 TD engine producing 140 hp, features dan internal modification designed to adapt the dair flow. Depending on the selected specification, it combines a high-flow MFS compressor wheel, a 360° bearing stop and additional modifications to the wheels and housings.

Its design plug & play allows for Installation without modification of the original layout d. The adaptation of the engine management system remains to be assessed depending on the level of tuning chosen.

Available tuning packages — Stage 1, Stage 2 and Stage 3

Stage 1
Compressor wheel: MFS high-flow
Bearing thrust: 360°
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

This modification is applied to the compressor impeller to d’adjust the air displacement capacity d’whilst maintaining a configuration designed for for direct mounting.

Stage 2
Compressor impeller: MFS high-flow oversized
dIntake casing: re-profiled for accommodate the new impeller oversized
Bearing thrust ring: 360°
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

dThe oversizing of the compressor impeller is accompanied by a re-profiling of the intake casing d. This combination aims to optimise air flow and compression, without assuming da specific increase in power.

Stage 3
Compressor wheel: MFS high-flow oversized
d’ intake housing: re-profiled for to accommodate the new impeller oversized
Bearing thrust ring: 360°
Turbine impeller: high-flow oversized
Turbine casing: re-profiled for ly to accommodate the new impeller oversized
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

This configuration modifies the compressor and turbine sides. The resulting performance depends on the overall set-up, in particular the engine management system, boost pressure and associated components.

What is a hybrid turbo?

A hybrid turbo is based on an architecture adapted for accommodate internal components that differ from the standard configuration. Depending on the upgrade stage, modifications may involve the compressor and turbine wheels, the housings, the thrust bearing system and the balancing.

The aim is dto adapt the compression capacity and air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its compressor wheel: the geometry of the components and their mechanical compatibility are essential.

MFS compressor wheel: standard or Performance?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow rate d. A standard MFS wheel may retain a geometry equivalent to that dof the original.

A standard MFS impeller can be just as shiny as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d’air. With appropriate engine tuning, a higher airflow rate may enable the engine to develop more power, although no specific gain can be guaranteed.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air. Its diameter, profile, height, width and blade arrangement all influence its aerodynamic behaviour. The result also depends on the casings, the turbine wheel, the boost pressure and the engine tuning. A larger wheel therefore does not automatically guarantee better performance and may alter the response time.

Reliability and balancing of the hybrid turbocharger

The 360° bearing stop helps to distribute axial forces. The rotor is balanced at high speeds, up to 150,000 rpm on a Cimat VSR test bench, in order to minimise vibrations and mechanical stresses. This balancing does not protect against incorrect installation, contamination or inadequate lubrication.

Engine remapping and preparation

To make the most of the characteristics dof a hybrid turbocharger, it may be necessary to adjust the engine mapping and pressure management. The fuel supply, intake air cooling d, the exhaust, the clutch and the transmission must also be checked depending on the vehicle and the level of tuning. Fitting da hybrid turbo does not automatically guarantee a power increase.

Turbo specifications

OEM part number

35242077F

Manufacturer reference

49135-05500

Compatible vehicles and applications

Vehicle applications
No specific applications are documented in the available information. Compatibility must be confirmed using the original turbo part numbers d.

Additional technical specifications

Product type: Hybrid Turbo
Engine: 3.1 TD
displacement: 3.1 L
Power: 140 hp
Installation: plug & play, without any changes to the layout

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d. Check that the pipes are clean, the inlet and that there are no foreign objects. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the turbo’s part number d, the original, OEM and manufacturer part numbers, as well as the model, generation, body style, engine type, power output,Year and engine code.. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the part number clearly visible on your turbo’s identification plate d.
