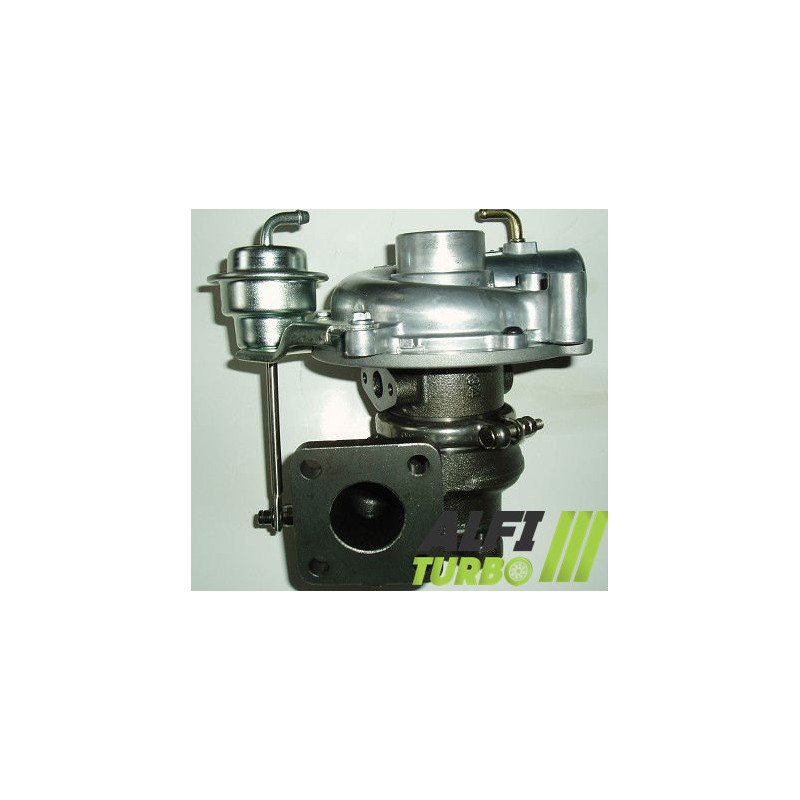

This hybrid turbo for, designed for the 2., 5 TD and 136 hp, features d a tuning programme focused on adapting the d air flow. Depending on the package selected, it is fitted with a high-flow MFS compressor impeller, a 360° bearing stop and additional modifications to the casings or the turbine impeller.
Its design plug & play allows for Installation without modification of the original layout d. However, to make the most of its characteristics, consistent engine tuning and appropriate set-up are required.
This modification affects the compressor impeller in order d to adjust the compression capacity and air flow rate d, whilst retaining the mechanical configuration documented for in this course.
The Stage 2 combines a oversized compressor wheel with a reprofiled d intake housing. This combination can move more d air under the right conditions, with correctly calibrated engine management.
Stage 3 adds a turbine wheel oversized and a re-profiled turbine housing. These modifications alter the aerodynamic behaviour of the turbocharger and must be combined with a suitable engine configuration.
A hybrid turbo is based on an architecture designed for to accommodate internal components that differ from the d original configuration. Depending on the upgrade stage, the modifications may involve the compressor wheel, the housings, the turbine wheel, the thrust bearing system and the balancing.
The aim is d to adapt the compression capacity and the air flow rate d. A hybrid turbo is not defined solely by the appearance of its compressor wheel: its geometry and the overall coherence of the unit are crucial.
MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in airflow d. A standard MFS wheel may retain a geometry equivalent to that d of the original.
A standard MFS impeller can be just as shiny as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air. A higher airflow can contribute to an increase in power when the engine is suitably tuned, though this alone does not guarantee results.
The impeller diameter, the profile, height, width and arrangement of the blades all influence the intake and compression of air. The result also depends on the housings, the turbine wheel, the boost pressure and the mapping. A larger wheel therefore does not automatically guarantee better performance and may alter the response time.
The 360° thrust bearing, fitted to all three stages, helps to distribute axial forces. The rotor is balanced at high speeds, up to 150,000 rpm, on a Cimat VSR test bench to minimise vibrations and mechanical stresses. This balancing does not compensate for incorrect installation or inadequate lubrication.
The mapping and boost pressure management must be adjusted for to make the most of the turbo’s characteristics. The fuel injection, exhaust, cooling, intake and transmission must be checked in accordance with the level of tuning. The wastegate must be adjusted when the ECU is remapped.
Part numbers listed for for this product, without a specified manufacturer or make:
⚠️ WARNING — IMPORTANT BEFORE INSTALLATION
Identify and rectify the cause of the previous fault before installing the. Check the lubrication circuit, the oil supply and return lines d, and ensure all lines are clean.
Check the inlet for any foreign objects. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions.
A lubrication fault that is not rectified may lead to the turbocharger failing again.
Check the part number engraved or marked on the original turbo d, then compare it with the part numbers in this data sheet.. Also check the make, model, generation, body style, engine type, power output, production period and engine code. An identical engine type is not always sufficient to confirm compatibility.
⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.
If in doubt, contact our team with the full part number from your turbo.
Reference: AI04-980
Brand: ALFI TURBO ///
Year: Not specifiedPower: 136 hpdisplacement: 2.5 lEngine code: Not specifiedWarranty: 2 years
Reference: wast
Brand: ALFI TURBO ///
Pneumatic control (wastegate) for turbo GARRETT HIH MHI KKK Toyota Brand new with a 2-year warranty. After placing your order, please let us know the exact part number of your turbo!
Reference: joints
Brand: ALFI TURBO ///
for Complete Gasket Set – for fitting your turbo.
Reference: ACI-169
Brand: ALFI TURBO ///
Year: Not specifiedPower: 136 hpdisplacement: 2.5 lEngine code: Not specifiedWarranty: 2 years
