Hybrid Turbo 2.5 TD 115 to 118 hp – 35242037F, 53049700002

  • Online only
Hybrid

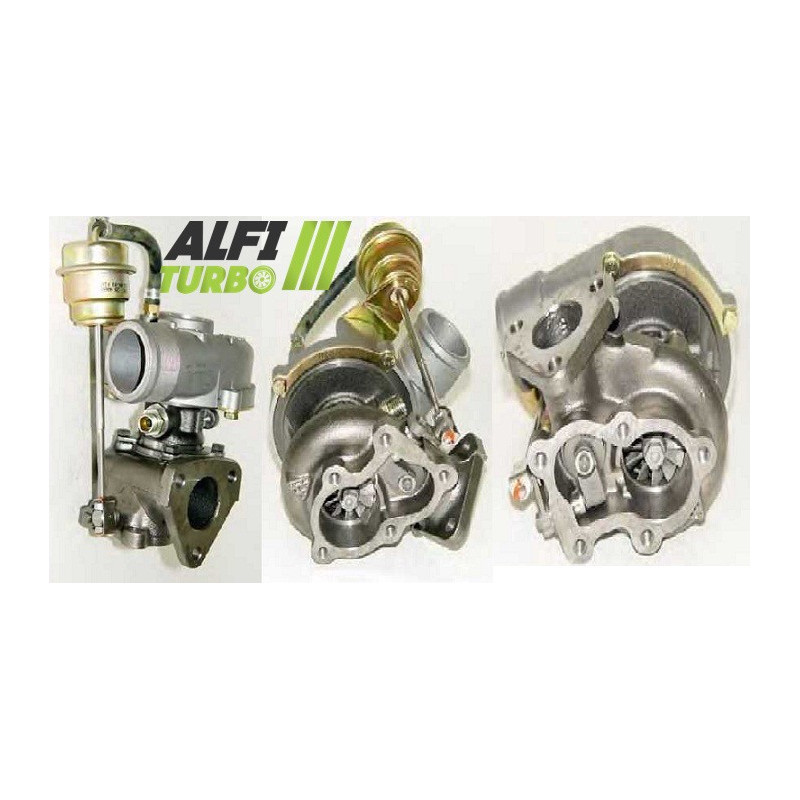

Hybrid Turbo 2.5 td 35242037F 53049700002, 53049800002, 53049880002, 53049900002
  • Hybrid Turbo 2.5 td 35242037F 53049700002, 53049800002, 53049880002, 53049900002
53049700002
Year: From 1991 onwards, depending on the vehicle
Power: 115 to 118 hp
displacement: 2.5 L
Engine code: Not specified
Gasket kit
Preparation course
€315.00 VAT included

262.5 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo for, with a 2.5 TD engine, is available in several performance levels.. Depending on the package chosen, the modifications include the high-flow MFS compressor wheel, the housings, the turbine wheel, the bearing thrust ring and rotor balancing.

The documented specifications apply to certain Jeep Cherokee, Chrysler Grand Voyager and Chrysler Voyager 2 models producing between 115 and 118 hp.

Available configurations — Stage 1, Stage 2 and Stage 3

Stage 1
Compressor wheel: MFS high-flow
Thrustbearing: 360° thrust bearing
Balancing: High-speed at 150,000 rpm on a Cimat VSR test bench

This configuration utilises a high-flow MFS compressor wheel to d adapt the compression capacity and d air flow of the turbo, whilst retaining a configuration designed for a Installation without modification.

Stage 2
Compressor wheel: High-flow MFS oversized
d' intake housing: Reprofiled for accommodate the new impeller oversized
Thrustbearing: 360° thrust bearing
Balancing: High-speed at 150,000 rpm on a Cimat VSR test bench

The Stage 2 combines a oversized compressor wheel with a d intake housing, re-profiled. This configuration can move more d air under the right conditions, with the engine management system correctly calibrated.

Stage 3
Supercharger impeller: MFS high-flow oversized
d's intake housing: Reprofiled for to accommodate the new impeller oversized
Thrustbearing: 360° thrust bearing
Turbine impeller: High-flow oversized
Turbine housing: Reprofiled for ly to accommodate the new impeller oversized
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

Stage 3 modifies the compressor and turbine sides of the. Larger sizing can affect both flow rate and response time; its performance therefore depends on the engine’s overall configuration.

What is a hybrid turbocharger?

A hybrid turbo utilises a turbocharger architecture designed for accommodate internal modifications. Depending on the stage, these may involve the compressor wheel, the housings, the turbine wheel, the thrust bearing or the balancing.

The aim is d to adapt the compression capacity and air flow rate d. A hybrid turbo is not defined solely by the appearance of its impeller: the overall geometry and the consistency of the components determine its performance.

MFS compressor wheel: standard or Performance?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow rate d. A standard MFS wheel may retain a geometry equivalent to that d of the original.

An MFS wheel Performance can be designed with a geometry tailored to the tuning objective. On this product, the wheel shown is made of forged aluminium; it is lighter, larger and taller than the d original; it is advertised as offering 15 per cent additional compression.

A standard MFS impeller can be just as efficient as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d air. A higher airflow can only be fully utilised with a suitably tuned engine.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air. Its diameter, profile, height, width and blade arrangement all influence its aerodynamic behaviour. The result also depends on the casings, the turbine, the boost pressure and the engine tuning. A larger impeller therefore does not automatically guarantee better performance and may alter the response time.

Reliability and balancing of the hybrid turbocharger

The 360° thrust bearing, documented at each production stage, distributes axial forces over a wide surface area. The rotor is balanced at high speeds, up to 150,000 rpm, on a Cimat VSR test bench to minimise vibrations and mechanical stresses. However, this balancing does not compensate for incorrect installation or inadequate lubrication.

Engine remapping and preparation

Operating d a hybrid turbo may require adjustments to the engine mapping, fuel injection, exhaust system and cooling. Pressure management and wastegate adjustment must be carried out during reprogramming. Depending on the vehicle, the fuel supply, clutch or transmission may also need to be checked. The turbo alone does not guarantee a power gain.

Turbo part numbers

OEM Reference

35242037F

Manufacturer’s part numbers

53049700002
53049800002
53049880002
53049900002

Compatible vehicles and roles

Chrysler
Grand Voyager 2.5 TD — 115 hp
Engine variants 2.5 TD — from 1996, end date unspecified
Engine code : unspecified
Voyager 2 — 2.5 TD — 118 hp
Engine 2.5 TD — from 1991, end date unspecified
Engine code : unspecified
Jeep
Cherokee 2.5 TD — 115 hp
Engine 2.5 TD — from 1993, end date unspecified
Engine code : unspecified

Additional technical specifications

Product type: Hybrid Turbo
Engine: 2-.-5 TD
Power: 115 to 118 hp depending on the vehicle
Installation: Designed for installation without modification

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d. Check that the pipes are clean, the inlet and that there are no foreign objects. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the part number marked on the original turbo d, then compare the OEM and manufacturer part numbers.. Also check the make, model, generation, engine type, power output,Year and engine code where available.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the full part number taken from your turbocharger.

Product Details
53049700002
Hybrid
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
