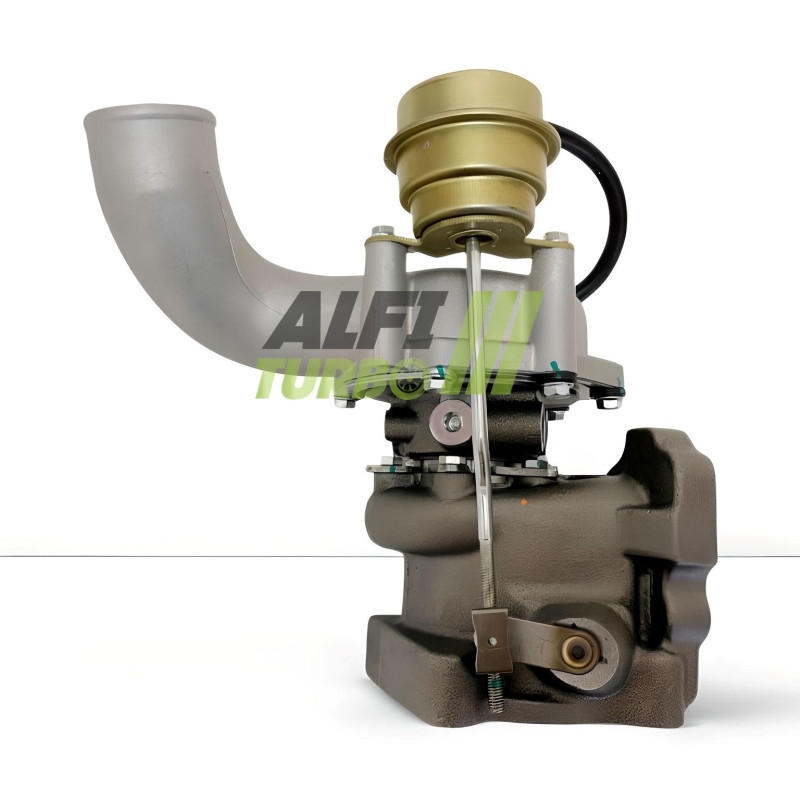

Hybrid Turbo Audi 2 7 T 230, 250 and 265 – 078145704B, 53039700017. hp

  • Online only
Hybrid
HYB03-200-017
Year: September 1997 to August 2005
Power: 230, 250 and 265 hp
displacement: 2.7 L
Engine code: AGB, AZB, AJK, AZA, ARE, BES
Gasket kit
Preparation course
€352.80 VAT included

294 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo for engine options Audi 2.7 T is fitted with an internal assembly designed to adjust its compression capacity and flow rate dair. Depending on the course chosen, it includes a high-flow MFS compressor wheel, a 360° bearing stop and high-speed balancing on a Cimat VSR bench.

The documented assignments relate to Audi A4 B5, A6 C5 and Allroad C5 petrol models with 230, 250 or 265 hp. Compatibility must be confirmed using the turbo’s part number d’origin and engine code’.

Available products — Stage 1, Stage 2 and Stage 2+

Stage 1
Compressor wheel: High-capacity MFS
Bearing stop: 360°
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

This preparation acts primarily on the compressor wheel in order to d’adjust the flow rate’ d’air, whilst retaining the documented fitting specifications of the turbo. The result depends on the engine management system and all the associated components.

Stage 2
Compressor wheel: High-capacity MFS oversized
Carter d’Admission:’ reprofiled for to receive the new wheel
Bearing stop: 360°
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

The wheel oversized requires the casing to be re-profiled d’admission’. This organisation aims to improve mobility d’the air from the compressor, although this alone is not sufficient to guarantee the final power output’.

Stage 2+
Compressor wheel: High-capacity MFS oversized
Carter d’Admission:’ reprofiled for to receive the new wheel
Bearing stop: 360°
Balancing: high speed at 150,000 rpm on a Cimat VSR test bench

The documented characteristics for This range includes the MFS wheel oversized and the re-profiled casing. When choosing an internship, you must take into account the engine’s complete configuration and its intended use.

What is a hybrid turbo ?

A hybrid turbo utilises a suitably adapted turbocharger design for to receive internal changes. Depending on the specific application, these may relate to the compressor impeller, its dimensions, the geometry of the blades, the casings, the turbine impeller, the thrust bearing system or the balancing process.

The aim is d’adjust the compression capacity and flow rate’ dair. A hybrid turbocharger is therefore not defined solely by the appearance of its impeller: the compatibility between the components and the quality of the balancing are also crucial factors.

MFS compressor wheel: standard or Performance ? ?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This technology describes a manufacturing process and does not, in itself, guarantee an increase in throughput dair. A standard MFS wheel can retain a geometry close to its original shape.

An MFS wheel Performance may be designed with a geometry suited to the application, for example a different blade profile, height, width or diameter, where such characteristics are specified. On this product, the wheel is described as a forged aluminium wheel, which is lighter, larger and taller than the one d’origin’.

A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more dair. Higher power output can only be utilised with appropriate engine tuning.

Why does the geometry of the blades affect the flow rate? d’air ?

The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades influence the aerodynamic behaviour of the compressor and the quantity d’air displaced under certain operating conditions’.

The result also depends on the compressor housing, the impeller and the turbine housing, the boost pressure and the engine calibration. A larger wheel does not automatically guarantee better performance and may affect response time or range doptimal use.

Reliability and balancing of the hybrid turbocharger

The documented 360° stop helps to distribute the axial forces acting on the rotating assembly. It helps to adapt the turbocharger to the demands of tuning, without compromising on the requirements relating to lubrication and assembly.

The rotor is balanced at high speed, up to 150,000 rpm, on a Cimat VSR test bench. This procedure is designed to minimise vibrations and mechanical stresses, but does not protect against incorrect installation or a fault doil or the presence of da foreign body.

Engine remapping and tuning

The farm dA hybrid turbo may require adjustments to the mapping, boost pressure and wastegate settings. Depending on the level of preparation: fuel injection, exhaust, air cooling dThe intake, clutch or gearbox must also be checked or adjusted. A turbocharger on its own does not guarantee any increase in power.

Turbo part numbers

OEM part numbers
078145702R
078145702RX
078145702S
078145702SX
078145704B
078145704BX
078145704C
078145704CX
078145704D
078145704DX
078145704H
078145704HX
078145704L
078145704LX
078145704R
078145704RX
078145704S
078145704SX
078145704BC
078145702RV
078145702LX
078145702LV
078145702L
078145702HX
078145702HV
078145702H
078145702F
078145704SV
078145704RV
Manufacturer’s part numbers
53039700017
53039880017

Compatible vehicles and assignments

Audi
A4 B5 (8D2) — 265 hp
2.7 T petrol — September 1997 to September 2001
Engine codes: AGB, AZB
A4 B5 Front (8D5) — 265 hp
2.7 T petrol — September 1997 to September 2001
Engine codes: AGB, AZB
A6 C5 (4B2, 4B4) — 230 hp
2.7 T petrol — December 1997 to January 2005
Engine codes: AJK, AZA
A6 C5 (4B2, 4B4) — 230 hp
2.7 T petrol — February 1999 to January 2005
Engine code : AJK
A6 C5 (4B2, 4B4) — 250 hp
2.7 T petrol — August 2001 to January 2005
Engine codes: ARE, BES
A6 C5 Front (4B5, 4B6) — 230 hp
2.7 T petrol — December 1997 to January 2005
Engine codes: AJK, AZA
A6 C5 Front (4B5, 4B6) — 230 hp
2.7 T petrol — February 1999 to January 2005
Engine code : AJK
A6 C5 Front (4B5, 4B6) — 250 hp
2.7 T petrol — August 2001 to January 2005
Engine codes: ARE, BES
Allroad C5 (4BH) — 250 hp
2.7 T petrol — May 2000 to August 2005
Engine codes: ARE, BES

Additional technical specifications

Product type: hybrid turbo
Engine: Audi 2.7 T
displacement : 2.7 L
Fuel: petrol
Documented power ratings: 230, 250 and 265 hp
Engine codes: AGB, AZB, AJK, AZA, ARE, BES
Documented periods: September 1997 to August 2005, depending on the assignment

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Before installation, identify and rectify the cause of the previous fault. Check the lubrication circuit, the supply and the return d’the oil and the cleanliness of all the pipes’.

Check the intake and ensure there are no foreign objects. Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions. The wastegate adjustment and boost management must be carried out by a qualified professional.

If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the turbo part number dStart by checking the OEM and manufacturer part numbers, then verify the make, model, generation, body style, engine type, power output, production period and engine code. Having the same motor does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number on your turbocharger d’origin’ using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.

If you are in any doubt, please contact us, quoting the full part number shown on your turbo.
