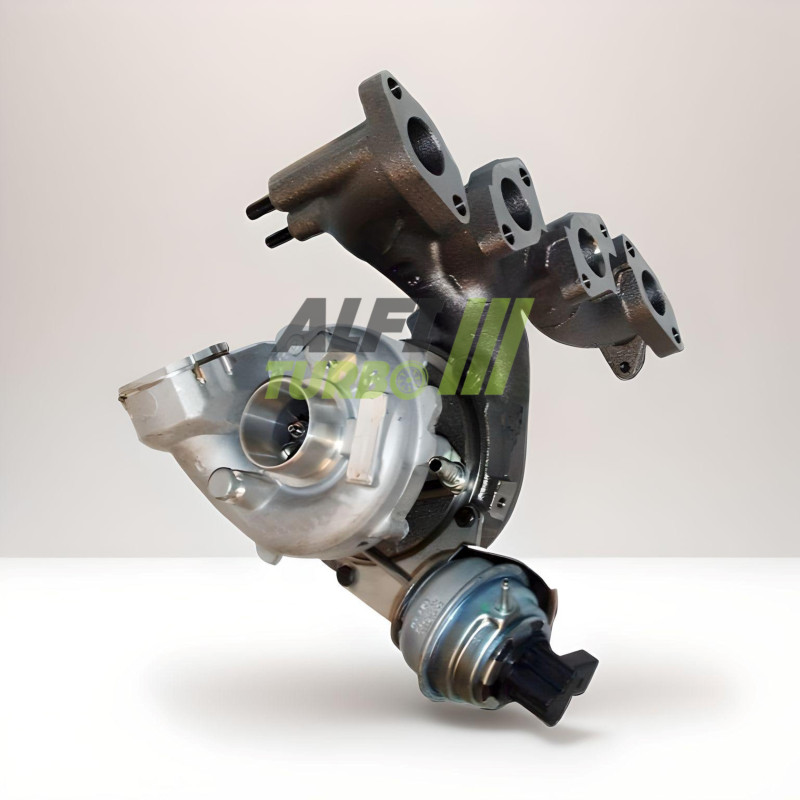

Hybrid Turbo Audi Seat 163/170 – 03G253019N – 757042-5015S Skoda Volkswagen 2.0 TDI hp

  • Online only
Hybrid
HYB-40M-002
Year: August 2005 to March 2013, depending on assignment
Power: 163 / 170 hp
displacement: Not specified
Engine code: BMN, BMR, BUY, CBBB, CEGA, CFGB, CFJA
Exchange
Gasket kit
Preparation course
€330.00 VAT included

275 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo for engine options 2.0 TDI between 163 and 170 hp is available in three different formulations. Each version uses an MFS compressor wheel Performance and a 360° stop, with dimensions and geometry tailored to the stage of preparation.

The documented applications relate to several Audi A3, Seat Altea, León and Toledo, Skoda Octavia and Volkswagen Golf, Jetta, Passat and Touran. The benchmark for turbochargers dThe origin must always be checked before placing an order.

Available products — Stage 1, Stage 2 and Stage 2+

Stage 1 — High-performance MFS wheel
Compressor wheel: High-capacity MFS
Dimensions: 36.30 mm at the inlet / 49.00 mm at the outlet
Geometry: 11+0 blades Performance
Stop: 360°
Balancing: up to 150,000 rpm on a Cimat VSR test bench

This model features an MFS compressor wheel Performance designed for increase the flow capacity dairflow compared with a standard configuration. Its final performance depends on the mapping and the overall engine configuration.

Stage 2 — MFS wheel oversized
Compressor wheel: High-capacity MFS
Dimensions: 40.58 mm at the inlet / 52.00 mm at the outlet
Geometry: 11+0 blades Performance
Carter d’Admission:’ reprofiled for the wheel oversized
Stop: 360°
Balancing: up to 150,000 rpm on a Cimat VSR test bench

The compressor wheel is larger than that of the Stage 1. Reprofiling the housing allows it to accommodate this new design, which may alter the available flow rate and the turbocharger’s response depending on the settings selected.

Stage 2+ — MFS high-flow impeller
Compressor wheel: High-capacity MFS
Dimensions: 41.58 mm at the inlet / 56.03 mm at the outlet
Geometry: 7+7 blades Performance
Carter d’Admission:’ reprofiled for the wheel oversized
Stop: 360°
Balancing: up to 150,000 rpm on a Cimat VSR test bench

The Stage The 2+ stands out with an even larger compressor wheel and a 7+7 blade configuration. No modifications to the turbine have been documented for this preparation.

What is a hybrid turbo ?

A hybrid turbocharger is based on a turbocharger design that has been adapted to accommodate internal components that differ from those in the standard configuration. Depending on the modification, changes may relate to the compressor wheel, its geometry, its dimensions, the machining of the casings, the thrust bearing or the impeller.

The aim is d’adjust the compression capacity and flow rate’ d’air to meet needs dengine tuning. A hybrid turbocharger is therefore not defined solely by the appearance of its impeller, but by the consistency of its mechanical characteristics and its balance.

MFS compressor wheel: standard or Performance ? ?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This designation describes the manufacturing process, but does not in itself guarantee an increase in flow rate dair.

A standard MFS wheel can retain a geometry equivalent to that d’origin’. An MFS wheel Performance may use a blade diameter, profile or configuration suited to the preparation objective. A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more dair.

A higher flow rate can contribute to growth d’greater power with appropriate engine tuning, without in itself guaranteeing a performance gain’.

Why does the geometry of the blades affect the flow rate? d’air ?

The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades all influence its aerodynamic behaviour. The right geometry can move more dair within certain operating ranges.

The result also depends on the compressor housing, the turbine, its housing, the boost pressure and the engine tuning. A larger wheel does not automatically guarantee better performance and may affect response time or range doptimal use.

Reliability and balancing of the hybrid turbocharger

The 360° stop fitted to all three stages helps to distribute the axial forces to which the rotating assembly is subjected. It does not exempt dif it is assembled correctly, d’proper lubrication and d’a suitable adjustment’.

Each batch is balanced at high speed, up to 150,000 rpm, on a Cimat VSR test bench. This procedure is designed to minimise vibrations and mechanical stresses on the rotor, but does not protect the turbocharger against a lack of lubrication, contamination or incorrect installation.

Engine remapping and tuning

The engine mapping needs to be adjusted for make the most of the features of this hybrid turbo. The management of boost pressure and the wastegate setting must be checked and adjusted during installation and tuning.

Depending on the required level of preparation, the fuel supply and air cooling d’the intake, the exhaust, the clutch, the transmission and dOther components may need to be checked or adjusted. The final power output depends on the overall configuration.

Turbo part numbers

OEM part numbers

03G253019NV395
03G253019N
03G253014KV100
03G253010A
03G253014KV
03G253014K
03G253010AV
03G253010AV100
03G253010AX
03G253019NX
03G253014KX

Manufacturer’s part numbers Garrett

757042-0008
757042-0010
757042-0014
757042-0015
757042-0016
757042-10
757042-14
757042-15
757042-16
757042-2015
757042-5015S
757042-5016S
757042-5018S
757042-8

Compatible vehicles and assignments

Audi
A3 (8P1) — 163 hp
2.0 TDI — June 2006 to June 2008
Engine code : BUY
A3 (8P1) — 170 hp
2.0 TDI — March 2006 to August 2012
Engine codes: BMN, CBBB, CFGB
A3 Sportback (8PA) — 163 hp
2.0 TDI — June 2006 to June 2008
Engine code : BUY
A3 Sportback (8PA) — 170 hp
2.0 TDI — March 2006 to March 2013
Engine codes: BMN, CBBB, CFGB
Seat
Altea (5P1) — 170 hp
2.0 TDI — March 2006 to May 2010
Engine codes: BMN, CEGA
Altea XL (5P5, 5P8) — 170 hp
2.0 TDI — June 2007 to June 2013
Engine codes: BMN, CEGA, CFJA
Altea XL (5P5, 5P8) — 170 hp
2.0 TDI — June 2007 to December 2013
Engine codes: BMN, CEGA
Leon (1P1) — 170 hp
2.0 TDI — May 2006 to December 2012
Engine codes: BMN, CEGA, CFJA
Toledo III (5P2) — 170 hp
2.0 TDI — January 2006 to May 2009
Engine codes: BMN, CEGA
Skoda
Octavia II (1Z3) — 170 hp
2.0 TDI — April 2006 to February 2013
Engine codes: BMN, CEGA
Octavia II Estate (1Z5) — 170 hp
2.0 TDI — April 2006 to February 2013
Engine codes: BMN, CEGA
Volkswagen
Golf V (1K1) — 170 hp
2.0 TDI — November 2005 to November 2008
Engine code : BMN
Jetta III (1K2) — 170 hp
2.0 TDI — October 2006 to October 2010
Engine codes: BMN, CEGA
Passat B6 (3C2) — 170 hp
2.0 TDI — August 2005 to July 2010
Engine codes: BMR, CBBB
Passat B6 Variant (3C5) — 170 hp
2.0 TDI — August 2005 to November 2010
Engine codes: BMR, CBBB
Touran (1T1, 1T2) — 170 hp
2.0 TDI — December 2005 to May 2010
Engine codes: BMN, CFJA

Additional technical specifications

Product type: Hybrid Turbo
Engine: 2.0 TDI
Fuel: Diesel
Power : 163 / 170 hp
Engine codes: BMN, BMR, BUY, CBBB, CEGA, CFGB, CFJA
Documented periods: August 2005 to March 2013, depending on assignment
Editing: fastenings d'As originally published, with no announced changes'

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Before installation, identify and rectify the cause of the previous fault. Check the lubrication circuit, the supply and the return d’the oil and the cleanliness of the pipes’.

Check the intake and ensure there are no foreign objects. Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions.

The mapping, boost pressure and wastegate settings must be adjusted by a professional. If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the part number marked on the turbocharger d’original and compare it with the OEM part numbers and Garrett from this fact sheet. Also check the make, model, generation, body style, engine type, power output, production period and engine code. Having the same motor does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before placing your order, Compare the part number on your turbocharger d’origin’ using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.

If you are in any doubt, please contact us with the full part number from your turbocharger.
