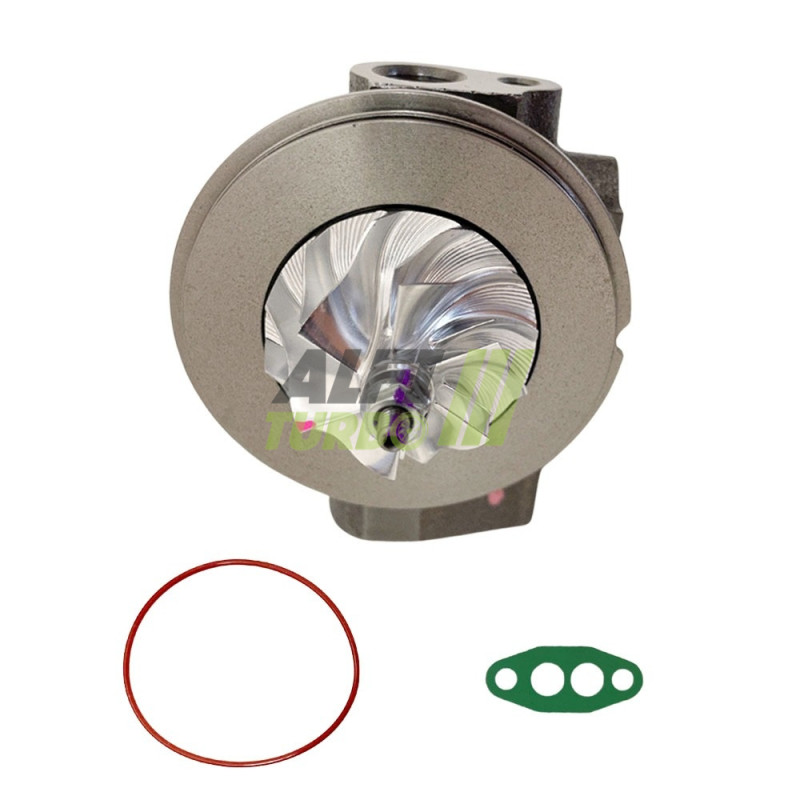

Turbo Cartridge 1.4 TSI 122 140 150, 49180-01270, 04E145704F, 04E145704R, 04E145713N, 04E145721R, 49180-01230, 49180-01240

  • Online only
New
Turbo Cartridge 1.4 TSI 122 140 150, 49180-01270, 04E145704F, 04E145704R, 04E145713N, 04E145721R, 49180-01230, 49180-01240
  • Turbo Cartridge 1.4 TSI 122 140 150, 49180-01270, 04E145704F, 04E145704R, 04E145713N, 04E145721R, 49180-01230, 49180-01240
ACM-207T
Year: Not specified
Power: 122, 140 and 150 hp
displacement: 1.4 l
Engine code: CMBA
Warranty: 2 years
Gasket Kit (Essential for Turbo Installation)
Gasket Kit (Essential for Turbo Installation)
12 €
€67.20 VAT included

56 tax excl.

Quantity
Delivery within 24-72 hours (order before 5 p.m.)

Description

This central cartridge Cartridge is designed for use with several turbochargers fitted to 1.4 TSI engines with 122, 140 and 150 hp. It enables the replacement of the turbo’s core unit provided that the outer casings and other reused components have been inspected and found to be compliant.

The documented applications cover various models: Audi, Seat, Skoda and Volkswagen. Compatibility must always be confirmed using the part number of the original dturbocharger.

Turbo part numbers

OEM part numbers

04E145704F
04E145704FV
04E145704FX
04E145704R
04E145704RV
04E145704RX
04E145713N
04E145713NV
04E145713NX
04E145721E
04E145721EV
04E145721EX
04E145721R
04E145721RV
04E145721RX

Manufacturer’s part numbers

49180-01230
49180-01240
49180-01270
49180-01275
49180-11300

Compatible vehicles and assignments

Audi

A1 — 122 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified
A3 — 122 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified
Q3 — 122 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified

Seat

Alhambra — 122, 140 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified
Ibiza — 122 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified
Leon — 122 and 150 hp
1.4 TSI — period unspecified
Engine code : CMBA

Skoda

Octavia — 122, 140 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified

Volkswagen

Beetle — 122, 140 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified
Golf VII — 122, 140 and 150 hp
1.4 — period unspecified
Engine code : unspecified
Jetta — 122 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified
Passat — 122 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified
Polo — 122 and 140 hp
1.4 TSI — period unspecified
Engine code : unspecified
Sharan — 122, 140 and 150 hp
1.4 TSI — period unspecified
Engine code : unspecified

Technical specifications

Product type: central cartridge Cartridge turbo
Engine: 1.4 TSI
displacement: 1.4 l
Documented power outputs: 122, 140 and 150 hp
Engine code Documented: CMBA for Seat Leon
Production period: not specified

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before dinstalling the cartridge Cartridge, identify and rectify the cause of the previous failure. Check the lubrication circuit, the oil supply and return d, as well as the cleanliness of the lines. Check the retained casings, the inlet and that there are no foreign objects present. Carry out priming in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the turbo’s part number d– the original part number, OEM and manufacturer part numbers, as well as the make, model, generation, engine type, power output,Year and engine code. An identical engine may be fitted with several different turbocharger configurations.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine does not always guarantee compatibility.

If in doubt, please contact us with the full part number taken from your turbocharger.

Product Details
ACM-207T
3701803906106
New
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
