Cartridge Turbo 1 6 75, 90 and 105 – 03L253016A, 54399700098. TDI hp

  • Online only
New

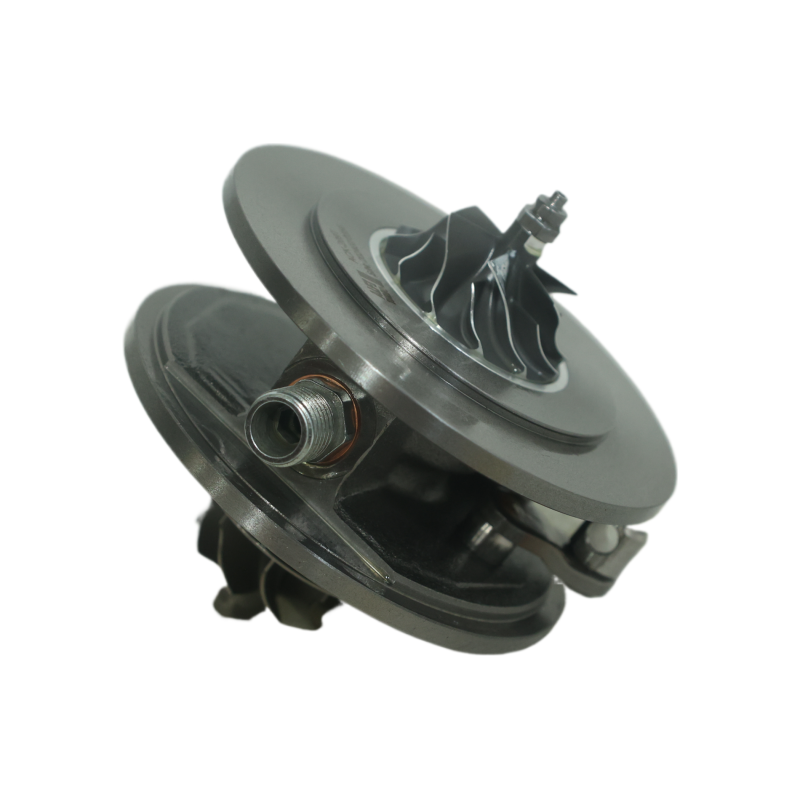

Turbo Cartridge 1.6 TDI 75 90 105, 54399700098, 54399700086, 54399700094, 54399700114, 03L253016A, 03L253016H, 03L253056D
  • Turbo Cartridge 1.6 TDI 75 90 105, 54399700098, 54399700086, 54399700094, 54399700114, 03L253016A, 03L253016H, 03L253056D
  • Turbo Cartridge 1.6 TDI 75 90 105, 54399700098, 54399700086, 54399700094, 54399700114, 03L253016A, 03L253016H, 03L253056D
  • Turbo Cartridge 1.6 TDI 75 90 105, 54399700098, 54399700086, 54399700094, 54399700114, 03L253016A, 03L253016H, 03L253056D
  • Turbo Cartridge 1.6 TDI 75 90 105, 54399700098, 54399700086, 54399700094, 54399700114, 03L253016A, 03L253016H, 03L253056D
ACK-209T
Year: Feb 2009–Dec 2019
Power: 75, 90 and 105 hp
displacement: 1598 ccm
Engine code: Not specified
Warranty: 2 years
GASKET KIT
GASKET KIT
21.6 €
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€73.68 VAT included

61.4 tax excl.

Quantity
Delivery within 24-72 hours (order before 5 p.m.)

Description

This central cartridge Cartridge is designed for turbochargers fitted to several 1598 ccm engines producing 75, 90 or 105 hp. It enables the central assembly of the turbo to be replaced when the part numbers dof the original component match.

Documented applications include, in particular, the following vehicles Audi, Seat, Skoda and Volkswagen. Compatibility must always be confirmed using the original turbocharger part number d.

Turbo part numbers

OEM part numbers

03L253016A
03L253016H
03L253016HV
03L253016HX
03L253056D
03L253056DX
03L253016AX

Manufacturer’s part numbers

54399700086
54399700094
54399700098
54399700114
54399800086
54399800094
54399800098
54399800114
54399880086
54399880094
54399880098
54399880114
54399900086
54399900094
54399900098
54399900114
5439-970-0114
5439-970-0098
5439-970-0086
5439-988-0114
5439-988-0098
5439-988-0086
03L253056DV
5439-970-0094
5439-988-0094
5439-970-0136
54399700136
54399880136

Compatible vehicles and assignments

AUDI
A1 1.6 TDI — 90 hp
1598 ccm — 03/2011 to 04/2015
Engine code : not specified
A1 1.6 TDI — 105 hp
1598 ccm — 05/2010 to 04/2015
Engine code : not specified
A1 Sportback 1,.,6 TDI — 90 hp
1,598 ccm — 11/2011 to 04/2015
Engine code : not specified
A1 Sportback 1,.,6 TDI — 105, hp
1,598 cc — Nov 2011 to Apr 2015
Engine code : not specified
SEAT
Ibiza III 1.6 16V — 105 hp
1598 ccm — 11/2006 to 11/2009
Engine code : not specified
Ibiza IV 1.6 TDI — 90 hp
1598 ccm — 05/2009 to 12/2019
Engine code : not specified
Ibiza IV 1,.,6 TDI — 105 hp
1,598 ccm — 05/2009 to 12/2019
Engine code : not specified
Ibiza IV Sportcoupé 1,.,6 TDI — 90 hp
1,598 ccm — 05/2009 to 12/2015
Engine code : not specified
Ibiza IV Sportcoupé 1,.,6 TDI — 105 hp
1,598 ccm — 05/2009 to 12/2015
Engine code : not specified
Ibiza Sportcoupé estate 3/5-door 1,.,6 TDI — 90 hp
1,598 ccm — 05/2009 to 12/2019
Engine code : not specified
Skoda
Fabia II 1.6 TDI — 75 hp
1598 ccm — 04/2010 to 12/2014
Engine code : not specified
Fabia II 1.6 TDI — 90 hp
1598 ccm — 03/2010 to 12/2014
Engine code : not specified
Fabia II 1.6 TDI — 105 hp
1598 ccm — 03/2010 to 12/2014
Engine code : not specified
Fabia II Estate 1,.,6 TDI —75 hp
1,598 ccm — 04/2010 to 12/2014
Engine code : not specified
Fabia II Estate 1.6 TDI — 90 hp
1598 ccm — 03/2010 to 12/2014
Engine code : not specified
Fabia II Combi 1.6 TDI — 105 hp
1598 ccm — 03/2010 to 12/2014
Engine code : not specified
Rapid 1.6 TDI — 105 hp
1598 ccm — 07/2012 to 12/2019
Engine code : not specified
Roomster 1.6 TDI — 90 hp
1598 ccm — 03/2010 to 05/2015
Engine code : not specified
Roomster 1.6 TDI — 105 hp
1598 ccm — 03/2010 to 05/2015
Engine code : not specified
Volkswagen
Golf VI 1.6 TDI — 105 hp
1598 ccm — 02/2009 to 11/2012
Engine code : not specified
Passat 1.6 TDI — 105 hp
1598 ccm — 08/2009 to 07/2010
Engine code : not specified
Polo 1.6 TDI — 75 hp
1598 ccm — 06/2009 to 12/2019
Engine code : not specified
Polo 1.6 TDI — 90 hp
1598 ccm — 06/2009 to 12/2019
Engine code : not specified
Polo 1.6 TDI — 105 hp
1598 ccm — 06/2009 to 12/2019
Engine code : not specified
Touran 1.6 TDI — 105 hp
1598 ccm — 05/2010 to 05/2015
Engine code : not specified

Technical specifications

Product type: central cartridge Cartridge Turbo
Documented engine variants: 1 x.6 TDI and 1 x.6 16V depending on specification
displacement: 1598 ccm
Power outputs: 75, 90 and 105 hp
Documented production periods: November 2006 to December 2019, depending on the vehicle
Engine codes: not specified

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before dinstalling the cartridge Cartridge, identify and rectify the cause of the previous fault. Check the lubrication circuit, the oil supply and return d, as well as the cleanliness of the pipes.

Check the inlet and ensure there are no foreign objects. The cartridge must be fitted correctly into the existing housings, then primed in accordance with the applicable recommendations. Follow the manufacturer’s instructions and, if in doubt, have the work carried out by a qualified professional.

Unresolved lubrication issues may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the part number of the original turbo das well as the OEM and manufacturer part numbers. Also check the make, model, generation, body style, engine type, power output at hp, years of manufacture and the engine code where available.

An identical engine specification does not always guarantee compatibility: there may be several different set-ups depending on the vehicle version and its production period.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the full part number taken from your turbocharger.

Product Details
ACK-209T
3701803911803
New
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
