Cartridge Turbo Mitsubishi Fuso Canter 3 0D 146 and 175 – 504376936, 789773-0006. hp

  • Online only
New
Turbo Cartridge Mitsubishi Fuso Canter 3 0D 146 175 , 504376936, 504371348, 504359632, 5801951700, 5801768036, 789773-0006. hp
  • Turbo Cartridge Mitsubishi Fuso Canter 3 0D 146 175 , 504376936, 504371348, 504359632, 5801951700, 5801768036, 789773-0006. hp
ACG-507 / ACG-507B
Year: August 2009 to May 2013
Power: 146, hp and 175 hp
displacement: 3,., 0D
Engine code: 4P10-0AT3, 4P10-6AT3, 4P10-0AT6, 4P10-6AT6
Warranty: 2 years
Turbo Complete Gasket Set (required for fitting the new turbo)
Turbo Complete Gasket Set (required for fitting the new turbo)
18 €
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€95.88 VAT included

79.9 tax excl.

Quantity
Delivered the next day (if ordered before 5.00 pm)

Description

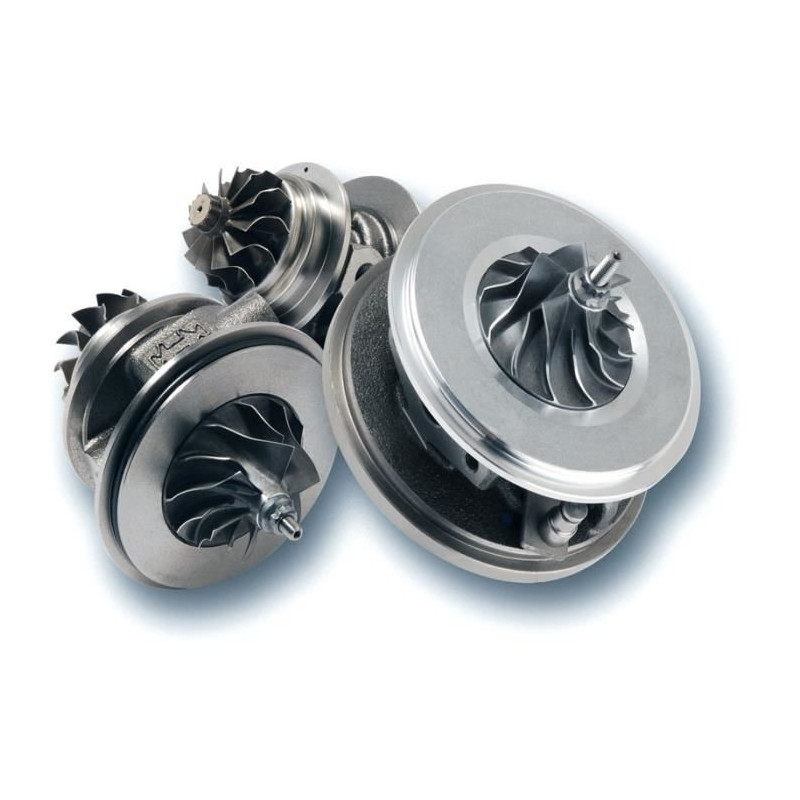

This central cartridge Cartridge is designed for the following Fuso Canter VII models: Mitsubishi Fuso Canter VII 3.0 Diesel with 146 hp and 175 hp engines, equipped with the 4P10 engines documented at.. It allows the core of the turbocharger to be replaced whilst retaining the compatible housings.

Compatibility must be confirmed using the exact part number of the original turbo d, even when the vehicle, engine capacity and power output match.

Turbo part numbers

OEM part numbers

QQC000387
QQC000038
QMK667939
QMK667315
MK667939
504376936
504371348
504359632
5801951700
5801768036

Manufacturer’s part numbers

789773-0006
789773-0009
789773-0013
789773-0018
789773-13
789773-18
789773-2013
789773-5006S
789773-5009S
789773-5013S
789773-5018S
789773-5026S
789773-5028S
789773-5030S
789773-6
789773-9

Compatible vehicles and applications

FUSO (Mitsubishi)
Canter VII (FB7_, FE7_, FB8_, FE8_) — 3C15 — 146 hp
3.0 Diesel — 08/2009 to 05/2013
Engine codes: 4P10-0AT3, 4P10-6AT3
Canter VII (FB7_, FE7_, FB8_, FE8_) — 6C15 — 146 hp
3.0 Diesel — 08/2009 to 05/2013
Engine codes: 4P10-0AT3, 4P10-6AT3
Canter VII (FB7_, FE7_, FB8_, FE8_) — 7C15 — 146 hp
3.0 Diesel — 08/2009 to 05/2013
Engine codes: 4P10-0AT3, 4P10-6AT3
Canter VII (FB7_, FE7_, FB8_, FE8_) — 6C18 — 175 hp
3.0 Diesel — 10/2009 to 05/2013
Engine codes: 4P10-0AT6, 4P10-6AT6
Canter VII (FB7_, FE7_, FB8_, FE8_) — 7C18 — 175 hp
3.0 Diesel — 10/2009 to 05/2013
Engine codes: 4P10-0AT6, 4P10-6AT6

Technical specifications

Product type: Cartridge Turbo
Engine: 3.0D
Fuel: Diesel
Power: 146 hp and 175 hp
Engine codes: 4P10-0AT3, 4P10-6AT3, 4P10-0AT6, 4P10-6AT6
Documented periods: 08/2009 to 05/2013

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

d'install the central cartridge, identify and rectify the cause of the previous fault. Check the lubrication circuit, the oil supply and return d as well as the cleanliness of the lines.

Check the retained casings, the inlet and ensure there are no foreign objects. The Cartridge must be fitted with care, and priming must then be carried out in accordance with the applicable recommendations and the manufacturer’s instructions.

A lubrication fault that is not rectified may lead to the turbocharger failing again.

How do you identify the correct turbo?

Check the part number marked on the original turbocharger d, then compare the OEM and manufacturer part numbers.. Also check the make, model, generation, version, engine type, power output hp, installation period and engine code.. An identical engine may be fitted with several different turbocharger set-ups.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine does not always guarantee compatibility.

If in doubt, please contact us, stating the exact part number found on your turbo.

Product Details
ACG-507 / ACG-507B
New

Turbo: specialists in turbochargers since 2012

ALFI TURBO specialises in the sale of turbochargers for for cars, commercial vehicles, heavy goods vehicles, construction machinery, agricultural machinery and boats: new turbochargers, remanufactured units, hybrid turbochargers, Cartridge and turbocharger spare parts. Over 20,000 items are available.

Find the right turbocharger for your engine

The turbocharger plays a vital role in the operation and performance d of a turbocharged engine. When a turbocharger needs replacing, it is important d to identify the exact part number before ordering.

ALFI TURBO supplies turbochargers for for a wide range of makes and engine types: cars, commercial vehicles, heavy goods vehicles, construction machinery, tractors and agricultural machinery, as well as various marine applications.

You can search for your turbo based on the vehicle or application, engine type, engine code, or directly using d an OEM or manufacturer part number found on your old turbocharger.

Turbo new, remanufactured, hybrid and Cartridge

Turbo new

Browse our range of new turbochargers for for diesel and petrol engines. ALFI TURBO has over 5,500 new turbochargers in stock for covering a wide range of makes, engine types and turbocharger part numbers.

View new turbochargers →

Turbo as remanufactured units

A standard exchange turbo allows you to replace a turbocharger whilst returning the old part where a deposit is required. Our catalogue includes numerous part numbers for from various makes and engine types.

View standard exchange turbochargers →

Hybrid Turbo

Hybrid turbos are designed for set-ups requiring greater air flow d and higher performance potential than a standard set-up. Specifications depend on the turbo, its tuning and the engine configuration.

View hybrid turbos →

Cartridge turbo

The turbo Cartridge, also known as the central turbo cartridge, comprises the main rotating components of the turbocharger. ALFI TURBO has over 6,000 Cartridge for turbo part numbers.

View turbo Cartridge →

for turbochargers for a wide range of applications

Our catalogue covers a wide range of d applications fitted with d a turbocharged engine.

  • diesel and petrolcars;
  • commercial vehicles;
  • heavy goods vehicles and lorries;
  • construction and civil engineeringmachinery;
  • tractors and agricultural machinery;
  • boats and marine applications.

How do you identify the correct turbo part number?

A single engine type may have been fitted with several different turbochargers depending on theYear, power output, engine version or technical evolution.. The application alone is therefore not always sufficient for to accurately identify the correct turbo.

Before ordering, note down the part numbers shown on the identification plate d of your old turbocharger. This may be d an OEM part number or d a part number from the turbo manufacturer.

Compare these part numbers with those listed on our product pages.. If in doubt, our team can help you verify the part number you are looking for before you place your order.

Turbo failure: identify the cause before replacement

A loss of power, an unusual whistling noise, oil consumption d, abnormal smoke or poor engine performance may be linked to a turbocharger fault.

However, a fault that appears to be turbo-related may also stem d from a lubrication issue, d from contaminated oil, d from a foreign object, from the intake or exhaust systems, or d from another engine peripheral component.

It is therefore important to investigate the cause of the fault before fitting a new turbo or a new Cartridge.

→ Identifying the symptoms d of a turbo failure

→ Understand the main causes of turbo failure d

ALFI TURBO, specialists in turbochargers since 2012

Since 2012, ALFI TURBO has been assisting private individuals and professionals in identifying and replacing turbochargers.

  • over 20,000 items in the catalogue;
  • over 5,500 new turbochargers in stock;
  • over 6,000 ‘ Cartridge ’ available;
  • new turbochargers, remanufactured units, hybrid units and Cartridge;
  • diesel and petrol engines;
  • a wide range of applications for road, agricultural, industrial and marine use;
  • fast delivery in France and across Europe;
  • warranty of up to 2 years depending on the product and applicable conditions.

BEFORE REPLACING A TURBO

A turbocharger failure may be the result d of another engine problem. Before fitting d a new turbo or Cartridge, identify and rectify the cause of the original fault to d avoid d damaging the new part.

Need d'help for finding your turbo?

Do you have a turbocharger part number but can’t find the matching part? Are you unsure which part number to choose? Send us the details from your old turbo so that our team can help you identify the part you’re looking for.

CONTACT ALFI TURBO
