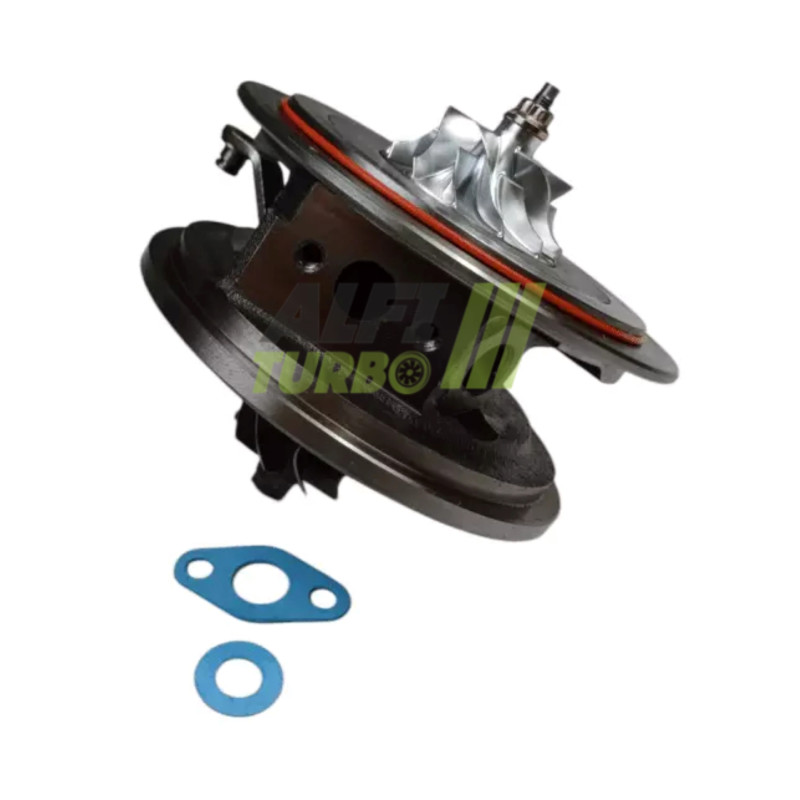

Cartridge Bi-Turbo Audi 3.0 TDI 313 hp, 059145654Q, 059145654L, 059145654K, 059145654H, 059145653Q, 059145653L, 059145653K, 8057

  • Online only
New
Cartridge Bi-Turbo Audi 3.0 TDI 313 hp, 059145654Q, 059145654L, 059145654K, 059145654H, 059145653Q, 059145653L, 059145653K, 8057
  • Cartridge Bi-Turbo Audi 3.0 TDI 313 hp, 059145654Q, 059145654L, 059145654K, 059145654H, 059145653Q, 059145653L, 059145653K, 8057
  • Cartridge Bi-Turbo Audi 3.0 TDI 313 hp, 059145654Q, 059145654L, 059145654K, 059145654H, 059145653Q, 059145653L, 059145653K, 8057
  • Cartridge Bi-Turbo Audi 3.0 TDI 313 hp, 059145654Q, 059145654L, 059145654K, 059145654H, 059145653Q, 059145653L, 059145653K, 8057
  • Cartridge Bi-Turbo Audi 3.0 TDI 313 hp, 059145654Q, 059145654L, 059145654K, 059145654H, 059145653Q, 059145653L, 059145653K, 8057
  • Cartridge Bi-Turbo Audi 3.0 TDI 313 hp, 059145654Q, 059145654L, 059145654K, 059145654H, 059145653Q, 059145653L, 059145653K, 8057
  • Cartridge Bi-Turbo Audi 3.0 TDI 313 hp, 059145654Q, 059145654L, 059145654K, 059145654H, 059145653Q, 059145653L, 059145653K, 8057
ACG-689T
Year: November 2011 to September 2018
Power: 313 hp
displacement: 3,.,0 TDI
Engine code: Not specified
Warranty: 2 years
€99.60 VAT included

83 tax excl.

Quantity
Delivered the next day (order before 17h)

Description

This central cartridge ( Cartridge ) is designed for twin-turbo systems fitted to certain Audi models with 3-.0- TDI quattro engines, with power outputs of 313 hp. It is intended to replace the central unit corresponding to the part numbers listed on this data sheet.

TDIThe main documented applications are for the A6 C7, A6 Allroad C7, A7 Sportback and SQ5 Audi. The part number of the original turbo dmust be checked before placing an order.

Turbo part numbers

OEM part numbers

059145654Q
059145654L
059145654K
059145654H
059145653Q
059145653L
059145653K
059145653H
059145061T
059145061Q
059145061L
059145061AD
059145061AL
059145653HX
059145653KX
059145653LX
059145653QX
059145654HX
059145654KX
059145654LX
059145654QX
059145061QX
059145061TX
059145061LX

Manufacturer’s part numbers

825965-8
825965-7
825965-6
825965-5008S
825965-5008
825965-5007S
825965-5006S
825965-5006
825965-5002S
825965-5002
825965-2006
825965-2
825965-0008
825965-0007
825965-0006
825965-0002
805713-9
805713-8
805713-7
805713-5009S
805713-5008S
805713-5007S
805713-5004S
805713-4
805716-7
805716-5007S
805716-0007
805714-5004S
805714-4
805714-0004

Compatible vehicles and specifications

AUDI
A6 Allroad C7 (4GH, 4GJ) — 3.0 TDI quattro —313 hp
Engine variants 3.0 TDI — 01/2012 to 12/2014
Engine code : not specified
A6 C7 (4G2, 4GC) — 3.0 TDI quattro — 313 hp
Engine 3.0 TDI — 11/2011 to 09/2018
Engine code : not specified
A6 C7 Avant (4G5, 4GD) — 3.0 TDI quattro — 313 hp
Engine 3.0 TDI — 11/2011 to 09/2018
Engine code : not specified
A7 Sportback (4GA, 4GF) — 3.0 TDI quattro — 313 hp
Engine 3.0 TDI — 11/2011 to 03/2015
Engine code : not specified
Q5 (8RB) — SQ5 TDI quattro — 313 hp
Engine specifications for the SQ5 TDI — Dec 2012 to Nov 2015
Engine code : not specified
Q5 Van (8RB) — 3.0 SQ5 TDI quattro — 313 hp
Engine 3.0 SQ5 TDI — Dec 2012 to May 2015
Engine code : not specified

Technical specifications

Product type: Cartridge Turbo
Configuration: Twin-turbo
Engine: 3.0 TDI
Power: 313 hp
Documented period: 11/2011 to 09/2018 depending on deployment
Engine code: Not specified

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION
Before fitting the central cartridge, identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d. Check that the lines, the sump and the intake circuit d, and ensure there are no foreign objects. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the turbo part number d'original, the OEM and manufacturer part numbers, as well as the model, generation, body style, engine type, power output of 313 hp and the production period. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.
If in doubt, contact ALFI TURBO with the part number from your turbo.
Product Details
ACG-689T
3701803907004
New
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
