Hybrid Turbo 1., 8 TDCi 100, 110 and 115 hp – 713517

Hybrid

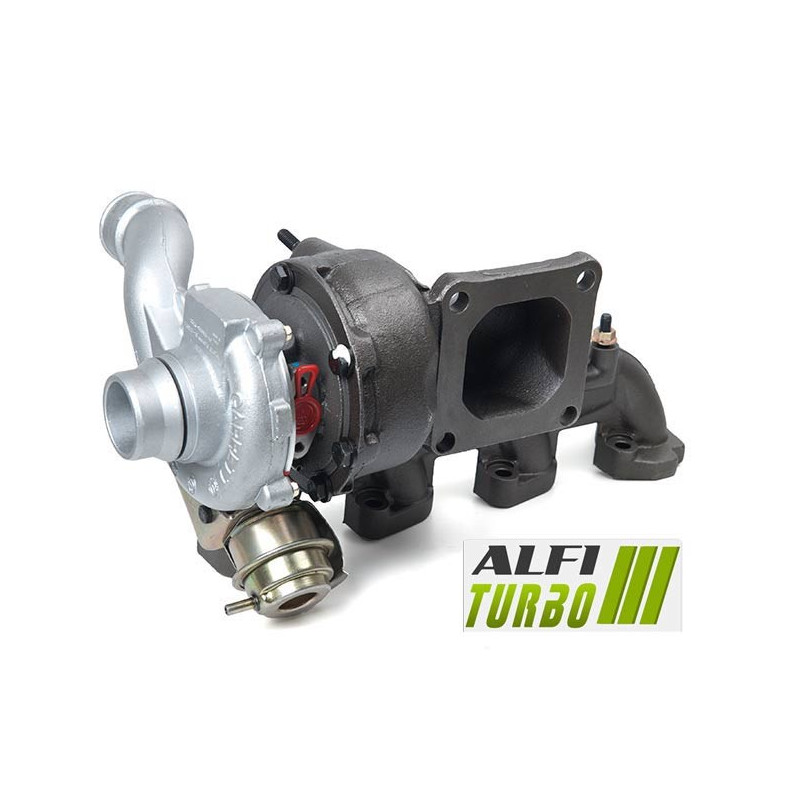

Turbo hybrid 1.8 TDCi 100 115 hp 713517-0005, 713517-0006, 713517-0007, 713517-0008, 713517-0009, 713517-0010,  713517-0011, 713
  • Turbo hybrid 1.8 TDCi 100 115 hp 713517-0005, 713517-0006, 713517-0007, 713517-0008, 713517-0009, 713517-0010,  713517-0011, 713
  • Turbo hybrid 1.8 TDCi 100 115 hp 713517-0005, 713517-0006, 713517-0007, 713517-0008, 713517-0009, 713517-0010,  713517-0011, 713
  • Turbo hybrid 1.8 TDCi 100 115 hp 713517-0005, 713517-0006, 713517-0007, 713517-0008, 713517-0009, 713517-0010,  713517-0011, 713
  • Turbo hybrid 1.8 TDCi 100 115 hp 713517-0005, 713517-0006, 713517-0007, 713517-0008, 713517-0009, 713517-0010,  713517-0011, 713
713517
Year: Not specified
Power: 100, 110 and 115 hp
displacement: 1.8 TDCi
Engine code: Not specified
Gasket kit
Preparation course
Exchange
€390.60 VAT included

325.5 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbocharger is designed for the 1.nd 8 TDCi engines with power outputs of 100, 110 and 115 hp, associated with the 713517 product range.. Its tuning is based in particular on a high-flow MFS compressor wheel, a 360° bearing stop and high-speed balancing.

Three tuning levels are documented. The choice of tuning package must take into account the engine configuration, the vehicle’s intended use and any planned peripheral modifications.

Available tuning packages — Stage 1, Stage 2 and Stage 3

Stage 1
Compressor wheel: MFS high-flow
Thrust bearing: 360° thrust bearing
Balancing: high-speed balancing at 150,000 rpm on a Cimat VSR test bench

This kit acts on the compressor side to d adjust the compression capacity and the d air flow. The installation is advertised as plug-and-play, requiring no external modifications to the vehicle.

Stage 2
Compressor impeller: MFS high-flow oversized
d intake housing: re-profiled for accommodate the new impeller oversized
Thrust bearing: 360° thrust bearing
Balancing: high-speed balancing at 150,000 rpm on a Cimat VSR test bench

Stage 2 combines a oversized compressor impeller with a d intake housing, re-profiled. This configuration is designed to adapt the air flow and compression to the dimensions of the new impeller.

Stage 3
Compressor impeller: MFS high-flow oversized
for Housing d: re-profiled to accommodate the new impeller oversized
Thrust bearing: 360° thrust bearing
Turbine impeller: high-flow oversized
Turbine casing: re-profiled for ly to accommodate the new impeller oversized
Balancing: high-speed balancing at 150,000 rpm on a Cimat VSR test bench

This modification is carried out on both the compressor and turbine sides. Oversized impellers require the corresponding housings to be re-profiled and may alter the air flow rate d as well as the behaviour of the turbocharger. The Stage 3 is not automatically the most suitable choice for all configurations.

What is a hybrid turbo?

A hybrid turbo retains a turbocharger architecture designed for to accommodate internal modifications. Depending on the upgrade stage, these may involve the compressor wheel, the housings, the turbine wheel, the thrust bearing and the rotor balancing.

The aim is d adapt the compression capacity and air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its compressor wheel: the geometry of the wheels, the machining of the housings and the overall coherence of the unit are crucial.

MFS compressor wheel: standard or ‘ Performance ’?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow rate d. A standard MFS wheel may retain a geometry equivalent to that d of the original.

An MFS wheel Performance is characterised by a geometry tailored to the tuning objective. On this product, the wheel shown is made of forged aluminium; it is lighter, larger and taller than the d original; it is advertised as providing 15 per cent additional compression.

A standard MFS impeller can be just as efficient as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air. A higher airflow can contribute to power output with a suitably tuned engine, though it does not, on its own, guarantee the final result.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and arrangement of its blades all influence its aerodynamic behaviour. The result also depends on the casings, the turbine wheel, the boost pressure and the engine tuning. A larger wheel therefore does not automatically guarantee better performance and may alter the response time as well as the range d of optimal use.

Reliability and balancing of the hybrid turbo

The documented 360° thrust bearing distributes axial forces over a wide surface area. It helps the assembly adapt to operating stresses, without making the turbocharger insensitive to poor lubrication or incorrect fitting.

The rotor is balanced at high speed, up to 150,000 rpm, on a Cimat VSR test bench. This process aims to minimise vibrations and mechanical stresses during rotation.

Engine remapping and tuning

Appropriate engine management is required for to make the most of the hybrid turbo’s characteristics. Depending on the tuning package and the vehicle, it is advisable to check or d adjust the mapping, fuel injection, exhaust system, cooling system, boost pressure and, if necessary, the transmission. The wastegate must be adjusted when remapping the ECU.

Turbo part numbers

OEM part numbers

1S4Q6K682AD
1S4Q6K682AE
1S4Q6K682AF
1S4Q6K682AG
1S4Q6K682AH
1S4Q6K682AJ
1S4Q6K682AK
1S4Q6K682AL
1S4Q6K682AM
1S4Q6K682AP
1S4Q6K682AS

Manufacturer’s part numbers

713517-0005
713517-0006
713517-0007
713517-0008
713517-0009
713517-0010
713517-0011
713517-0012
713517-0015
713517-0016
713517-5016S
802418-0001
802418-5001S

Compatible vehicles and applications

No detailed compatibility information by make, model, year or engine code is documented. Compatibility must be confirmed using the original turbo part number d.

Additional technical specifications

Product type: hybrid turbo
Reference family: 713517
Engine range: 1.8 TDCi
Power outputs: 100, 110 and 115 hp
Installation: plug-and-play, with no external modifications required

Installation advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d. Check that the pipes are clean, the inlet and that there are no foreign objects present. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the part number of the original turbo d and compare it with the OEM and manufacturer part numbers in this data sheet. Also check the make, model, generation, body style, engine type, power output at hp, theYear and the engine code. An identical engine type does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the part number clearly visible on your turbocharger.
