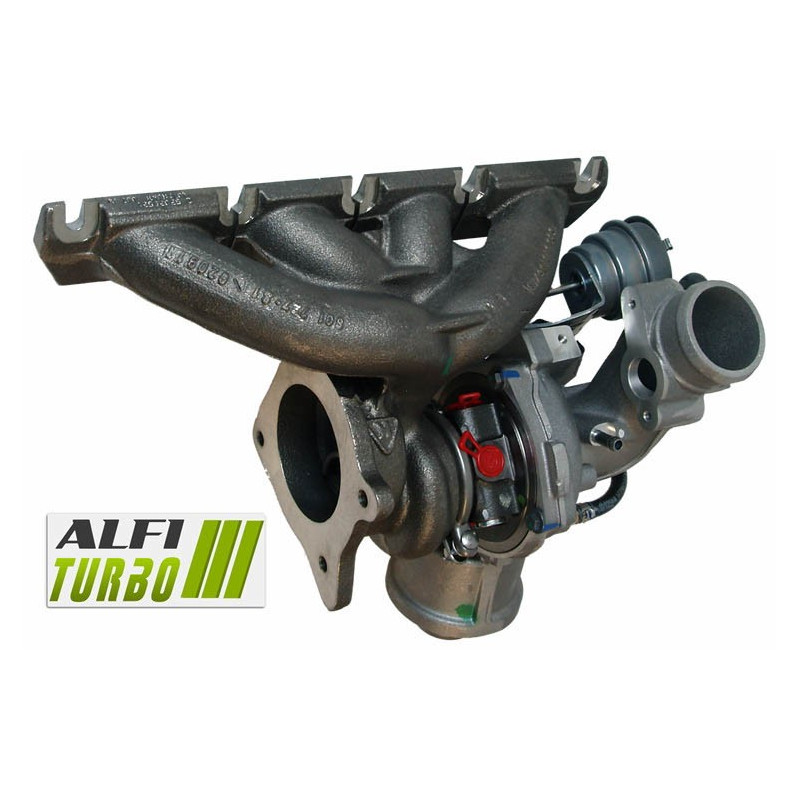

This hybrid turbo for engine options 2.0 TFSI benefits from d'a formulation designed to increase compression capacity and flow rate' d'air'. Depending on the course chosen, he receives a high-flow MFS compressor wheel, a 360° bearing stop and, for certain assemblies, a casing d're-profiled intake'.
The documented allocations relate to several models Audi, , Seat, , Skoda and Volkswagen. Installation is intended to be carried out without any modifications d'Vehicle tuning, but making the most of the turbo’s characteristics requires appropriate engine preparation'.
This assembly combines a high-flow MFS impeller with a 360° stop. It aims to adjust the compressor’s operation whilst retaining the documented casing configuration for this work placement.
The Stage 2 uses a compressor wheel oversized and a casing d'an inlet adapted to its geometry'. This combination may affect the flow rate d'airflow and turbocharger behaviour; it must be incorporated into a suitable engine tuning programme'.
The documented characteristics of the Stage 2+ models also include an MFS wheel oversized and a re-profiling of the casing d'admission'. The difference in final performance depends on the engine’s overall configuration and tuning.
A hybrid turbo is based on a specially adapted turbocharger design for to receive modified internal components. Depending on the modification, changes may relate to the compressor impeller, the blade geometry, the casings, the turbine impeller, the thrust bearing system or the balancing.
The aim is d'adjust the compression capacity and flow rate' d'air'. However, a hybrid turbo is not defined solely by the appearance of its impeller: its operation depends on its overall geometry and the mechanical modifications made to it.
MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process does not, on its own, guarantee an increase in throughput d'air'. A standard MFS wheel can retain a geometry equivalent to that d'origin'.
A standard MFS wheel can be just as shiny as an MFS wheel Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air'. An MFS wheel Performance may be fitted with a blade profile, dimensions or configuration suited to the intended application, where such modifications are specified.
The compressor wheel draws in and then compresses the air fed to the engine. Its diameter, profile, height, width and the arrangement of its blades all influence its aerodynamic behaviour. The right geometry can move more d'air under certain conditions, but a larger wheel does not automatically guarantee better performance and may affect response time'. The result also depends on the casings, the turbine, the boost pressure and the engine tuning.
The documented 360° stop distributes axial forces across the entire surface. The rotor is balanced at high speed – up to 150,000 rpm – on a Cimat VSR test bench, in order to minimise vibrations and mechanical stresses. However, these procedures do not compensate for incorrect assembly or a lack of lubrication.
The mapping and management of boost pressure need to be adjusted for make the most of the turbo’s features. The wastegate must be adjusted during remapping. Depending on the configuration: fuel injection, exhaust, air cooling d'The intake, clutch or gearbox must also be checked or adjusted'. The hybrid turbo alone does not guarantee a power boost.
⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY
Search for and correct the cause of the previous failure. Check the lubrication circuit, the supply and the return d'oil, as well as the cleanliness of the ducts'. Check the intake and ensure there are no foreign objects present. Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions. If a lubrication fault is not rectified, it may lead to the turbocharger failing again.
Check the part number marked on the turbocharger d'origin', then compare the OEM and manufacturer part numbers. Also check the make, model, generation, engine type and power output in hp, theYear the mounting code and the engine code, where available. Having the same motor does not always guarantee compatibility.
⚠️ Check your turbo’s part numbers
Before placing your order, Compare the part number on your turbocharger d'origin' using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.
If you are unsure about a product code or application, please contact us before placing your order.
Reference: AK03-MG24
Brand: ALFI TURBO ///
Year: From November 2004, depending on allocation; end date not specifiedPower: 170, 200 and 220 hpdisplacement: 2.0 lEngine code: BGB, BWE, BWT, BPG, BUL, BPJ, BYKWarranty: 2 years
Reference: joints
Brand: ALFI TURBO ///
for Complete Gasket Set – for fitting your turbo.
