Hybrid Turbo Audi Seat 1 9 75/90 – 028145702 / 454097-5002S Volkswagen. TDI hp

  • Online only
  • On sale!
Hybrid

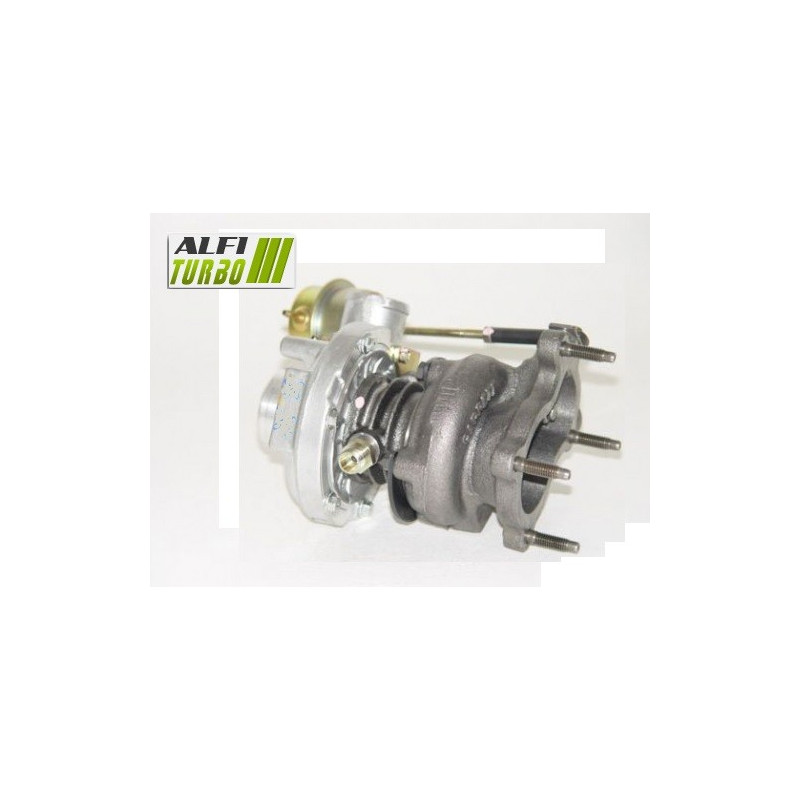

  • turbo 1.9 TDI 75 90 hp 454097
HYBG15-200-003
Year: From 1994, end date unspecified
Power: 75 / 90 hp
displacement: 1,.,9 TDI
Engine code: Not specified
Exchange
Gasket kit
Preparation course
€312.00 VAT included

260 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbocharger for, available in 1.9 TDI, is offered in three documented specification levels.. Each configuration is fitted with a high-flow MFS compressor wheel, a 360° bearing stop and high-speed balancing on a Cimat VSR test bench.

The applications listed include several Audi 80 and A4 models, as well as the Seat Alhambra and Volkswagen Passat B4 in the 1.9 TDI 90 variants hp.

Available specifications — Stage 1, Stage 2 and Stage 2+

Stage 1
Compressor wheel: MFS high-flow
Thrust bearing: 360° bearing
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

This configuration combines a high-flow MFS impeller with a 360° bearing to support the rotor. It is designed to adjust the compression capacity and air flow rate dwithout modifying dthe specified installation.

Stage 2
Compressor impeller: High-flow MFS oversized
dintake housing: Reprofiled for accommodate the new impeller oversized
Thrust bearing: 360° bearing
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

The Stage 2 features a oversized impeller and a dintake housing adapted to its geometry. This combination can increase air flow capacity d, with performance depending on engine tuning and operating conditions d.

Stage 2+
Compressor wheel: MFS high-flow oversized
dintake housing: Reprofiled for to accommodate the new impeller oversized
Thrust bearing: 360° bearing
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

The documented configuration for the Stage 2+ comprises the above components. No power gain or additional mechanical differences are specified in the available data.

What is a hybrid turbocharger?

A hybrid turbo utilises a turbocharger architecture adapted for to accommodate modified internal components. Depending on the modification, changes may relate to the compressor wheel, its dimensions, the casings, the turbine wheel, the thrust bearing or the balancing.

The aim is dto adapt the compression capacity and air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its impeller: consistency between the components, their geometry and the engine management system remains essential.

MFS compressor wheel: standard or Performance?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This technology describes the manufacturing process, but does not in itself guarantee an increase in air flow rate d. A standard MFS wheel may retain a geometry close to the original.

An MFS wheel Performance can be given a geometry tailored to the car’s specification. For this product, the wheel is described as being made from forged aluminium, lighter, larger and taller than the doriginal, with a claimed 15 per cent higher compression capacity. A standard MFS impeller can be just as shiny as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d’air.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air. Its diameter, profile, height, width and the arrangement of its blades influence its aerodynamic behaviour. A suitable geometry can move more dair under certain conditions, but the result also depends on the casings, the turbine, the boost pressure and the mapping. A larger impeller therefore does not automatically guarantee better performance and may alter the response time.

Reliability and balancing of the hybrid turbo

The 360° thrust bearing distributes axial forces over a wide surface area. The rotor is balanced at high speed, up to 150,000 rpm on a Cimat VSR test bench, in order to minimise vibrations and mechanical stresses. However, this balancing does not compensate for a lack of lubrication or incorrect installation.

Engine remapping and preparation

The engine management system must be adapted for to make the most of the hybrid turbo’s characteristics. The mapping, boost pressure and wastegate settings must be checked during remapping. Depending on the level of tuning, the fuel injection, exhaust system, air dintake cooling, clutch and transmission may also require checking or adjustment.

Turbo specifications

OEM part numbers

028145702
028145702X
028145702V

Manufacturer part numbers

454097-0001
454097-0002
454097-1
454097-2
454097-5002S

Compatible vehicles and assignments

Audi
80–90 hp
1.9 TDI —from 1994, end dateunspecified
Engine code : unspecified
A4 Pre-Series 1 Phase 2 — 90 hp
1.9 TDI — from 1994, end date unspecified
Engine code : unspecified
A4 Series 1 — 90 hp
1.9 TDI — from 1994, end date unspecified
Engine code : unspecified
A4 Series 1 Front — 90 hp
1.9 TDI — from 1994, end date unspecified
Engine code : unspecified
A4 Series 1 Phase 2 — 90 hp
1.9 TDI — from 1994, end date unspecified
Engine code : unspecified
Seat
Alhambra — 90 hp
1.9 TDI — from 1994, end date unspecified
Engine code : unspecified
Volkswagen
Passat B4 — 90 hp
1.9 TDI — from 1994, end dateunspecified
Engine code : unspecified

Additional technical specifications

Product type: Hybrid Turbo
Engine: 1.9 TDI
Power Specified: 75 / 90 hp
Period: From 1994, end date unspecified
Engine code: Not specified

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d. Check that the pipes are clean, the inlet and that there are no foreign objects. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the part number marked on the turbo dthe original part number, the OEM and manufacturer part numbers, as well as the make, model, generation, body style, engine type, power output,Year and engine code. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us, providing the full part number from your turbocharger.
