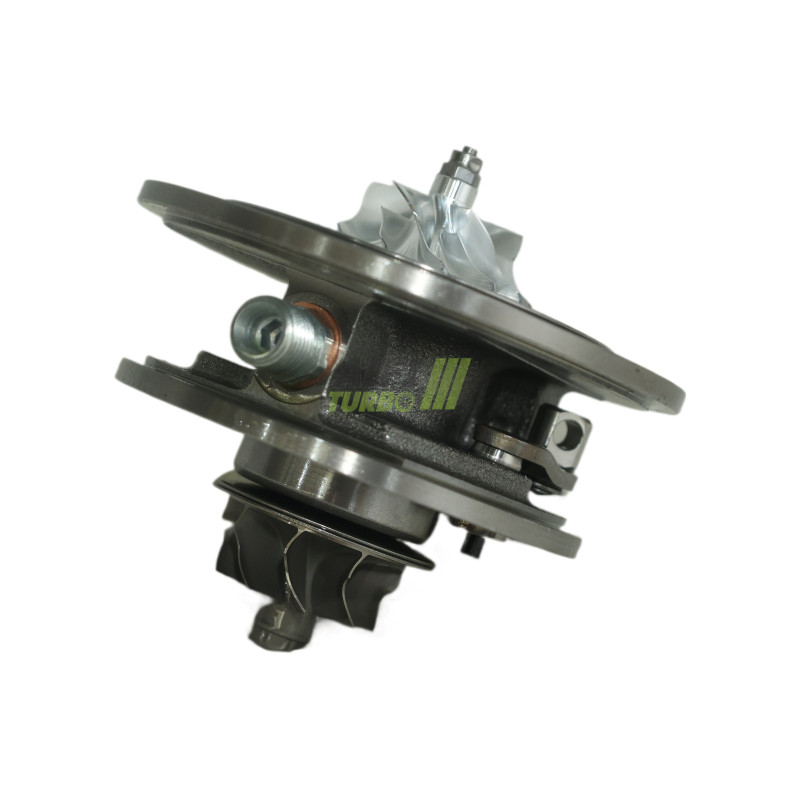

Turbo Cartridge 2.0 TDI 136 143 cv, 03L253019R, 03L253056F, 03L253010H, 54409700003, 54409700008, 54409700022, 54409700037

  • Online only
New
ACK-241T
Year: January 2010 to May 2015
Power: 136 and 143 hp
displacement: 2.0 TDI
Engine code: CFHB, CFHD
Warranty: 2 years
GASKET KIT
GASKET KIT
21.6 €
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€80.16 VAT included

66.8 tax excl.

Quantity
Delivery within 24-72 hours (order before 5 p.m.)

Description

This central cartridge Cartridge is designed for several engine variants 2.0 TDI with 136 and 143 hp associated with engine codes CFHB and CFHD. It is used to replace the central section of the turbocharger when the part numbers match the original dfitment.

The documented applications include, in particular, the A1 and A1 Sportback Audi, as well as the Ibiza IV and Ibiza IV SC SEAT.

Turbo part numbers

OEM part numbers

03L253019RX
03L253019RV
03L253019R
03L253056F
03L253056FX
03L253056S
03L253010H

Manufacturer’s part numbers

54409880003
54409700003
54409700008
54409880008
54409700022
54409880022
54409700037
54409880037

Compatible vehicles and assignments

AUDI

A1 (8X1, 8XK) PC — 136 hp
2.0 TDI diesel — May 2012 to April 2015
Engine code: CFHB
A1 (8X1, 8XK) PC — 143 hp
2.0 TDI diesel — 09/2011 to 04/2015
Engine code: CFHD
A1 Sportback (8XA, 8XF) PC — 136 hp
2.0 TDI diesel — May 2012 to April 2015
Engine code: CFHB
A1 Sportback (8XA, 8XF) PC — 143 hp
2.0 TDI diesel — 09/2011 to 04/2015
Engine code: CFHD

SEAT

Ibiza IV (6J5, 6P1) PC — 143 hp
2.0 TDI diesel — Jan 2010 to May 2015
Engine code: CFHD
Ibiza IV SC (6J1, 6P5) PC — 143 hp
2.0 TDI diesel — Jan 2010 to May 2015
Engine code: CFHD

Technical specifications

Product type: Cartridge Turbo
Engine: 2.0 TDI
Fuel: Diesel
Power: 136 and 143 hp
Engine codes: CFHB, CFHD
Documented production periods: 01/2010 to 05/2015 depending on the vehicle
Warranty: 2 years

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before dinstalling the cartridge Cartridge, identify and rectify the cause of the previous fault. Check the lubrication circuit, the oil supply and return d, as well as the cleanliness of the pipes.

Check the inlet and ensure there are no foreign objects. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions when fitting the central cartridge.

A lubrication fault that is not rectified may result in the turbocharger failing again.

How to identify the correct turbocharger?

Check the part number marked on the original turbo dand compare it with the OEM and manufacturer part numbers in this sheet. Also check the make, model, generation, body style, engine type, power output at hp, years of manufacture and the engine code. An identical engine type does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine specification does not always guarantee compatibility.

If you are unsure about identification or compatibility, please contact us with the full part number of your original turbo d.

Product Details
ACK-241T
3701803910097
New
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
