Turbo Cartridge Renault 2.2 DCi 133 150, 7701475285, 7701476620, 7711134877, 8200060089, 8200106870, 8200139476, 718089-1

  • Online only
New
Turbo Cartridge Renault 2.2 DCi 133 150, 7701475285, 7701476620, 7711134877, 8200060089, 8200106870, 8200139476, 718089-1
  • Turbo Cartridge Renault 2.2 DCi 133 150, 7701475285, 7701476620, 7711134877, 8200060089, 8200106870, 8200139476, 718089-1
  • Turbo Cartridge Renault 2.2 DCi 133 150, 7701475285, 7701476620, 7711134877, 8200060089, 8200106870, 8200139476, 718089-1
  • Turbo Cartridge Renault 2.2 DCi 133 150, 7701475285, 7701476620, 7711134877, 8200060089, 8200106870, 8200139476, 718089-1
  • Turbo Cartridge Renault 2.2 DCi 133 150, 7701475285, 7701476620, 7711134877, 8200060089, 8200106870, 8200139476, 718089-1
  • Turbo Cartridge Renault 2.2 DCi 133 150, 7701475285, 7701476620, 7711134877, 8200060089, 8200106870, 8200139476, 718089-1
ACG-144
Year: From 2001
Power: 133 hp / 150 hp
displacement: 2,., 2 litres
Engine code: Not specified
Warranty: 2 years
GASKET KIT
GASKET KIT
15 €
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€62.88 VAT included

52.4 tax excl.

Quantity
Delivery within 24-72 hours (order before 5 p.m.)

Description

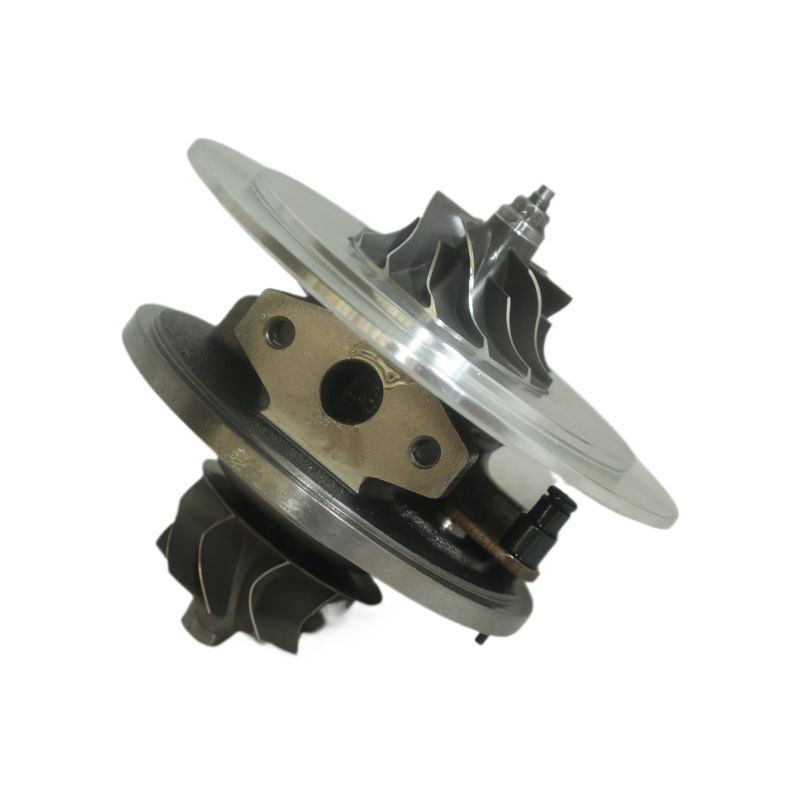

This central cartridge Cartridge is designed for the turbochargers fitted to certain engine models Renault 2.2 dCi with 133 and 150 hp. It enables the central rotating assembly to be replaced whilst retaining the turbocharger’s compatible housings.

Documented applications include the Renault, Avantime, Espace 4, Laguna 2 and Vel Satis 2.2 dCi 150 from 2001 onwards.

Turbo part numbers

OEM part numbers

7701473437
7701474327
7701475282
7701475285
7701476620
7711134877
8200060089
8200106870
8200139476
8200176856
8200221363
8200221364
8200267138
8200267138A
8200447624
8200447624A
8201124245

Manufacturer’s part numbers

718089-0001
718089-0002
718089-0003
718089-0004
718089-0005
718089-0006
718089-0008
718089-1
718089-2
718089-3
718089-4
718089-5
718089-5008S
718089-6
718089-8

Compatible vehicles and assignments

Renault
Avantime 2.2 dCi 150 hp
2.2 dCi — from 2001, end date unspecified
Engine code : unspecified
Espace 4 2.2 dCi 150 hp
2.2 dCi — from 2001, end date unspecified
Engine code : unspecified
Laguna 2 2.2 dCi 150 hp
2.2 dCi — from 2001, end date unspecified
Engine code : unspecified
Vel Satis 2.2 dCi 150 hp
2.2 dCi — from 2001, end date unspecified
Engine code : unspecified

Technical specifications

Product type: Central cartridge Cartridge Turbo
Motorisation: Renault 2.2 dCi
displacement .: 2- -2 litres
Fuel: Diesel
Power stated: 133 hp / 150 hp
Documented period: From 2001
Engine code: Not specified

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before dinstalling the cartridge Cartridge, identify and rectify the cause of the previous failure. Check the oil supply and return d, the cleanliness of the pipes, the intake, and ensure there are no foreign objects. Also check the condition and compatibility of any retained casings. Carry out assembly and priming in accordance with the applicable recommendations, then follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to the turbocharger failing again.

How do you identify the correct turbo?

Check the part number of the original turbo d, the OEM and manufacturer part numbers, as well as the model, generation, engine type, power output,Year and the vehicle’s engine code. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the part number from your turbocharger.

Product Details
ACG-144
3701803912855
New
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
COMPATIBLE PRODUCTS

Turbo: specialists in turbochargers since 2012

ALFI TURBO specialises in the sale of turbochargers for for cars, commercial vehicles, heavy goods vehicles, construction machinery, agricultural machinery and boats: new turbochargers, remanufactured units, hybrid turbochargers, Cartridge and turbocharger spare parts. Over 20,000 items are available.

Find the right turbocharger for your engine

The turbocharger plays a vital role in the operation and performance d of a turbocharged engine. When a turbocharger needs replacing, it is important d to identify the exact part number before ordering.

ALFI TURBO supplies turbochargers for for a wide range of makes and engine types: cars, commercial vehicles, heavy goods vehicles, construction machinery, tractors and agricultural machinery, as well as various marine applications.

You can search for your turbo based on the vehicle or application, engine type, engine code, or directly using d an OEM or manufacturer part number found on your old turbocharger.

Turbo new, remanufactured, hybrid and Cartridge

Turbo new

Browse our range of new turbochargers for for diesel and petrol engines. ALFI TURBO has over 5,500 new turbochargers in stock for covering a wide range of makes, engine types and turbocharger part numbers.

View new turbochargers →

Turbo as remanufactured units

A standard exchange turbo allows you to replace a turbocharger whilst returning the old part where a deposit is required. Our catalogue includes numerous part numbers for from various makes and engine types.

View standard exchange turbochargers →

Hybrid Turbo

Hybrid turbos are designed for set-ups requiring greater air flow d and higher performance potential than a standard set-up. Specifications depend on the turbo, its tuning and the engine configuration.

View hybrid turbos →

Cartridge turbo

The turbo Cartridge, also known as the central turbo cartridge, comprises the main rotating components of the turbocharger. ALFI TURBO has over 6,000 Cartridge for turbo part numbers.

View turbo Cartridge →

for turbochargers for a wide range of applications

Our catalogue covers a wide range of d applications fitted with d a turbocharged engine.

  • diesel and petrolcars;
  • commercial vehicles;
  • heavy goods vehicles and lorries;
  • construction and civil engineeringmachinery;
  • tractors and agricultural machinery;
  • boats and marine applications.

How do you identify the correct turbo part number?

A single engine type may have been fitted with several different turbochargers depending on theYear, power output, engine version or technical evolution.. The application alone is therefore not always sufficient for to accurately identify the correct turbo.

Before ordering, note down the part numbers shown on the identification plate d of your old turbocharger. This may be d an OEM part number or d a part number from the turbo manufacturer.

Compare these part numbers with those listed on our product pages.. If in doubt, our team can help you verify the part number you are looking for before you place your order.

Turbo failure: identify the cause before replacement

A loss of power, an unusual whistling noise, oil consumption d, abnormal smoke or poor engine performance may be linked to a turbocharger fault.

However, a fault that appears to be turbo-related may also stem d from a lubrication issue, d from contaminated oil, d from a foreign object, from the intake or exhaust systems, or d from another engine peripheral component.

It is therefore important to investigate the cause of the fault before fitting a new turbo or a new Cartridge.

→ Identifying the symptoms d of a turbo failure

→ Understand the main causes of turbo failure d

ALFI TURBO, specialists in turbochargers since 2012

Since 2012, ALFI TURBO has been assisting private individuals and professionals in identifying and replacing turbochargers.

  • over 20,000 items in the catalogue;
  • over 5,500 new turbochargers in stock;
  • over 6,000 ‘ Cartridge ’ available;
  • new turbochargers, remanufactured units, hybrid units and Cartridge;
  • diesel and petrol engines;
  • a wide range of applications for road, agricultural, industrial and marine use;
  • fast delivery in France and across Europe;
  • warranty of up to 2 years depending on the product and applicable conditions.

BEFORE REPLACING A TURBO

A turbocharger failure may be the result d of another engine problem. Before fitting d a new turbo or Cartridge, identify and rectify the cause of the original fault to d avoid d damaging the new part.

Need d'help for finding your turbo?

Do you have a turbocharger part number but can’t find the matching part? Are you unsure which part number to choose? Send us the details from your old turbo so that our team can help you identify the part you’re looking for.

CONTACT ALFI TURBO
