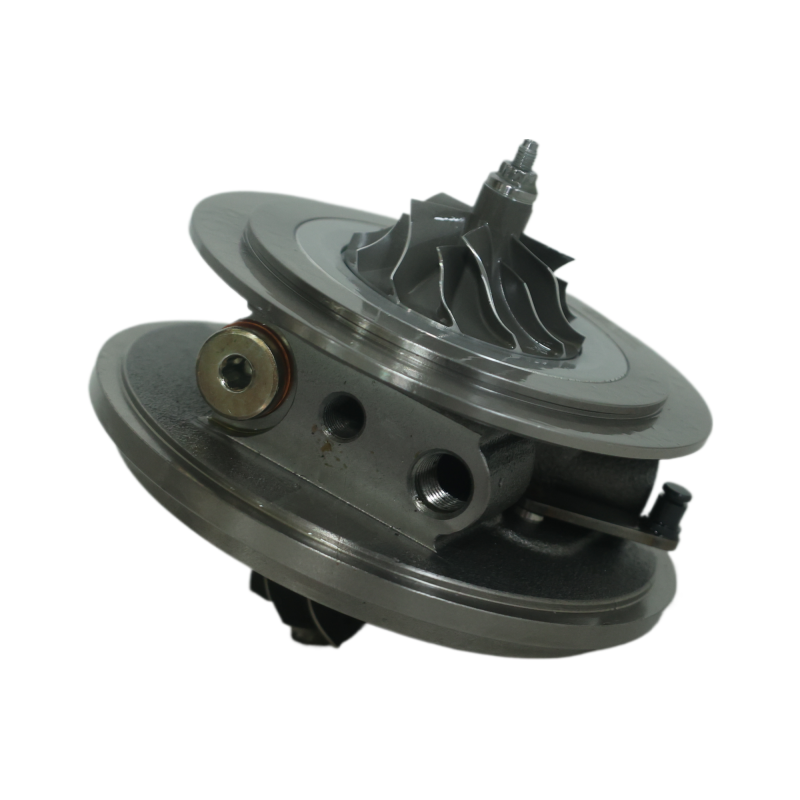

Turbo Cartridge Volvo 2.4 D5 180 185, 762060-0006, 762060-0008, 762060-0009, 31219697, 31293029, 50442292, 5048265, 50493434

  • Online only
New
Turbo Cartridge Volvo 2.4 D5 180 185, 762060-0006, 762060-0008, 762060-0009, 31219697, 31293029, 50442292, 5048265, 50493434
  • Turbo Cartridge Volvo 2.4 D5 180 185, 762060-0006, 762060-0008, 762060-0009, 31219697, 31293029, 50442292, 5048265, 50493434
  • Turbo Cartridge Volvo 2.4 D5 180 185, 762060-0006, 762060-0008, 762060-0009, 31219697, 31293029, 50442292, 5048265, 50493434
  • Turbo Cartridge Volvo 2.4 D5 180 185, 762060-0006, 762060-0008, 762060-0009, 31219697, 31293029, 50442292, 5048265, 50493434
  • Turbo Cartridge Volvo 2.4 D5 180 185, 762060-0006, 762060-0008, 762060-0009, 31219697, 31293029, 50442292, 5048265, 50493434
ACG-554B
Year: From 2004
Power: 180 and 185 hp
displacement: 2,.,4
Engine code: Not specified
Warranty: 2 years
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€90.96 VAT included

75.8 tax excl.

Quantity
Delivery within 24-72 hours (order before 5 p.m.)

Description

This Cartridge centre cartridge is designed for the turbochargers fitted to several Volvo models equipped with the 2.4 D5 engine, with 180 or 185 hp.

Documented applications include the Volvo C70, S40, S60, S80, V50, V70, XC60 and XC90 from 2004 onwards.

Turbo part numbers

OEM part numbers

31219697
31293029
50442292
5048265
50493434

Manufacturer’s part numbers

762060-0006
762060-0008
762060-0009
762060-0013
762060-0016
762060-5003S
762060-5006S
762060-5008S
762060-5009S
762060-5013S
762060-5016S
GTB2056VLM

Compatible vehicles and applications

Volvo

C70 — 2.4 D5 — 185 hp
Engine 2.4 D5 — from 2004, end date unspecified
Engine code: not specified
S40 — 2.4 D5 — 180 hp
Engine variants: 2.4 D5 — from 2004, end date unspecified
Engine code: not specified
S60 — 2.4 D5 — 185 hp
Engine variants: 2.4 D5 — from 2004, end date unspecified
Engine code: not specified
S80 — 2.4 D5 — 185 hp
Engine variants: 2.4 D5 — from 2004, end date unspecified
Engine code: not specified
V50 — 2.4 D5 — 180 hp
Engine variants: 2.4 D5 — from 2004, end date unspecified
Engine code: not specified
V70 — 2.4 D5 — 185 hp
Engine variants: 2.4 D5 — from 2004, end date unspecified
Engine code: not specified
XC60 — 2.4 D5 — 185 hp
Engine variants., 4 D5 — from 2004, end date unspecified
Engine code: not specified
XC90 — 2.4 D5 — 185 hp
Engine variants., 4 D5 — from 2004, end date unspecified
Engine code: not specified

Technical specifications

Product type: Cartridge Turbo
Engine: 2.4 D5
displacement: 2.4
Power: 180 and 185 hp
Documented period: from 2004
Engine code: not specified

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before fitting the central cartridge, identify and rectify the cause of the previous fault. Check the lubrication circuit, the oil supply and return d as well as the cleanliness of the pipes. Also check the inlet for any foreign objects.

The installation of the Cartridge, its positioning within the casings and its priming must be carried out in accordance with the applicable recommendations. A lubrication fault that is not rectified may lead to further failure of the turbocharger.

How do you identify the correct turbo?

Check the part number of the original turbo d, the OEM and manufacturer part numbers, as well as the model Volvo, the engine type (2.4 D5), the power output in hp, the mountingYear and the engine code where available. An identical engine type does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original d turbo with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If you are unsure about the identification or fitment, please contact us before ordering.

Product Details
ACG-554B
3701803910349
New
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
