Cartridge Turbo 2.0 / 136 / 140 – 3M5Q6K682CD, 728768-0004 D TDCI hp

  • Online only
New
Turbo Cartridge 2.0 D / TDCI 136 140, 3M5Q6K682CD, 9654262180, 9654931780, 9659667380, 728768-0004, 753847-0002, 760774-0003
  • Turbo Cartridge 2.0 D / TDCI 136 140, 3M5Q6K682CD, 9654262180, 9654931780, 9659667380, 728768-0004, 753847-0002, 760774-0003
  • Turbo Cartridge 2.0 D / TDCI 136 140, 3M5Q6K682CD, 9654262180, 9654931780, 9659667380, 728768-0004, 753847-0002, 760774-0003
  • Turbo Cartridge 2.0 D / TDCI 136 140, 3M5Q6K682CD, 9654262180, 9654931780, 9659667380, 728768-0004, 753847-0002, 760774-0003
  • Turbo Cartridge 2.0 D / TDCI 136 140, 3M5Q6K682CD, 9654262180, 9654931780, 9659667380, 728768-0004, 753847-0002, 760774-0003
ACG-412
Year: From 2004
Power: 136 / 140 hp
displacement: 2.0
Engine code: Not specified
Warranty: 2 years
GASKET KIT
GASKET KIT
12 €
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€64.93 VAT included

54.11 tax excl.

Quantity
Delivery within 24-72 hours (order before 5 p.m.)

Description

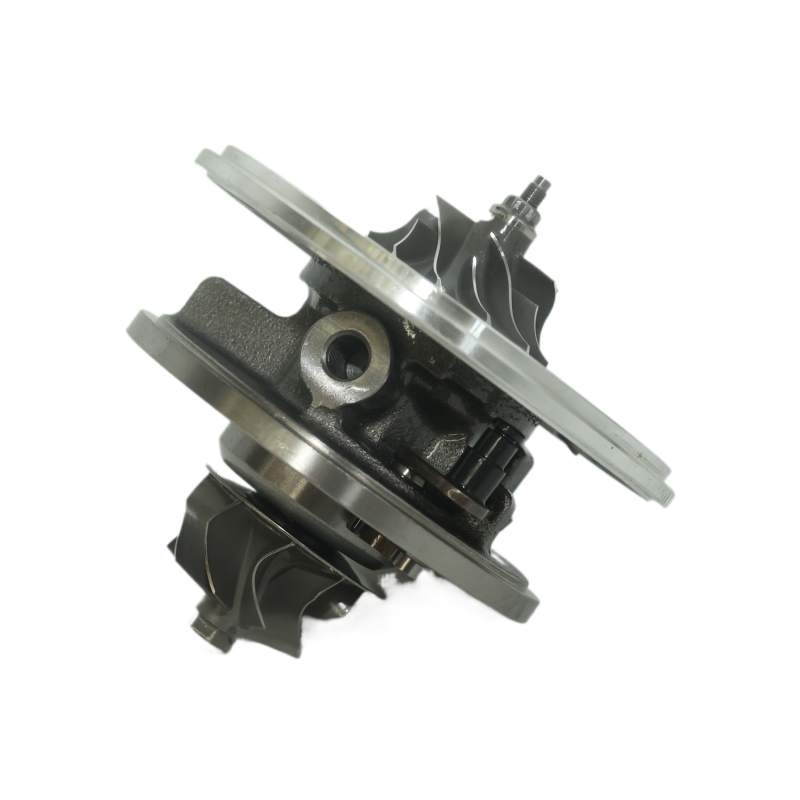

This Cartridge GTA1749V central cartridge is designed for the following engines 2.0, D and 2.0, TDCI with 136 or 140 hp, corresponding to the part numbers listed in this data sheet.

The documented applications cover several models Ford and Volvo, marketed from 2004 onwards. The part number of the original turbocharger d must be checked before placing any order.

Turbo part numbers

OEM part numbers

1483819
36002265
3M5Q6K682BB
3M5Q6K682CD
9654262180
9654931780
9659667380
96 542 621 80
96,549,317.80
96,596,673.80
96,624,649.80

Manufacturer’s part numbers

728768-0004
728768-0005
728768-5004S
728768-5005S
753847-0002
753847-0006
753847-5002S
753847-5006S
760774-0003
760774-5003S

Compatible vehicles and applications

Ford

C-Max 2.0 TDCI — 136 / 140 hp
Engine: 2.0 TDCI — From 2004, end date unspecified
Engine code : unspecified
Focus 2 2.0 TDCI — 136 / 140 hp
Engine specifications: 2.0 TDCI — From 2004, end date unspecified
Engine code : unspecified
Galaxy 2 2.0 TDCI — 136 / 140 hp
Engine specifications: 2.0 TDCI — From 2004, end date unspecified
Engine code : unspecified
Kuga 2.0 TDCI — 136 / 140 hp
Engine specifications: 2.0 TDCI — From 2004, end date unspecified
Engine code : unspecified
Mondeo 3 2.0 TDCI — 136 / 140 hp
Engine specifications: 2.0 TDCI — From 2004, end date unspecified
Engine code : unspecified

Volvo

C30 2.0 D — 136 / 140 hp
Engine: 2.0 D — From 2004, end date unspecified
Engine code : unspecified
C70 2.0 D — 136 / 140 hp
Engine: 2.0 D — From 2004, end date unspecified
Engine code : unspecified
S40 2.0 D — 136 / 140 hp
Engine specifications: 2.0 D — From 2004, end date unspecified
Engine code : unspecified
V40 2.0 D — 136 / 140 hp
Engine specifications: 2.0 D — From 2004, end date unspecified
Engine code : unspecified
V50 2.0 D — 136 / 140 hp
Engine: 2.0 D — From 2004, end date unspecified
Engine code : unspecified

Technical specifications

Product type: Cartridge Turbo
Model: GTA1749V
Engine options: 2.0 D / 2.0 TDCI
Power outputs: 136 / 140 hp
Documented period: From 2004
Engine codes: Not specified

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before d installing the central cartridge, identify and rectify the cause of the previous fault. Check the lubrication circuit, the oil supply and return d as well as the cleanliness of the lines.

Check the sump, the intake and ensure there are no foreign objects present. Carry out assembly and priming in accordance with the applicable recommendations and follow the manufacturer’s instructions.

Failure to rectify a lubrication fault may result in the turbocharger failing again.

How do you identify the correct turbo?

Check the part number marked on the original turbo d, then compare it with the OEM and manufacturer part numbers in this data sheet.. Also check the make, model, generation, body style, engine type, power output at hp, theYear and the engine code where available.

The same engine specification may be fitted with several different turbocharger set-ups: therefore, this alone is not sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine does not always guarantee compatibility.

If you are unsure about identification or fitting, please contact us before ordering.

Product Details
ACG-412
3701803912282
New
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
