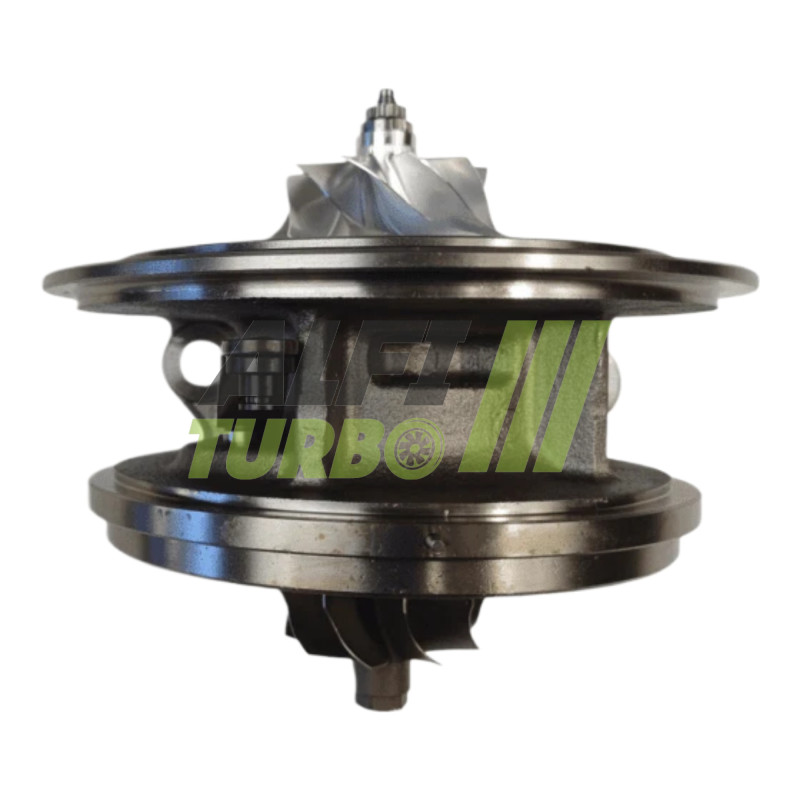

Turbo Cartridge Volvo V40 D2 120 150 , 36010069, 31380130, 836264-0001, 836264-1, 836264-2001, 836264-5001S 2.0 hp

  • Online only
  • New product
New
Turbo Cartridge Volvo V40 D2 120 150 , 36010069, 31380130, 836264-0001, 836264-1, 836264-2001, 836264-5001S 2.0 hp
  • Turbo Cartridge Volvo V40 D2 120 150 , 36010069, 31380130, 836264-0001, 836264-1, 836264-2001, 836264-5001S 2.0 hp
ACG-645T
Year: February 2015 to an unspecified date, depending on assignment
Power: 120, hp, 150 hp
displacement: 2.0
Engine code: D 4204 T4, D 4204 T8, D 4204 T9, D 4204 T13, D 4204 T16, D 4204 T20
Warranty: 2 years
Gasket Kit (Essential for Turbo Installation)
Gasket Kit (Essential for Turbo Installation)
12 €
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€68.82 VAT included

57.35 tax excl.

Quantity
Delivered the next day (if ordered before 5 pm)

Description

This Cartridge centre cartridge is designed for the following engines Volvo 2.0 D2 (120 hp ) and D3 (150 hp ), corresponding to the part numbers listed on this data sheet. It enables the replacement of the turbocharger’s centre assembly provided that the outer housings and other reused components are compatible and in good condition.

The documented fitments cover several versions of the Volvo S60 II, V40, V40 Cross Country and V60 I from 2015 onwards.

Turbo part numbers

OEM part numbers

36010069
31380130

Manufacturer part numbers

836264-0001
836264-1
836264-2001
836264-5001S

Compatible vehicles and applications

Volvo

S60 II (134) — D2 2.0 — 120 hp
Engine: 2.0 • Period: 03/2015 to 05/2018
Engine codes: D 4204 T20, D 4204 T8
S60 II (134) — D3 2.0 — 150 hp
Engine: 2.0 • Period: 03/2015 to 05/2018
Engine codes: D 4204 T4, D 4204 T9
S60 II Cross Country (134) — D3 2.0 — 150 hp
Engine: 2.0 • Period: 03/2015 to 05/2018
Engine codes: D 4204 T4, D 4204 T9
V40 Cross Country (526) — D2 2.0 — 120 hp
Engine: 2.0 • Period: 02/2015 to unspecified end date
Engine codes: D 4204 T13, D 4204 T8
V40 Cross Country (526) — D3 2.0 — 150 hp
Engine: 2.0 • Period: April 2015 to an unspecified date
Engine codes: D 4204 T16, D 4204 T9
V40 hatchback (525) — D2 2.0 — 120 hp
Engine: 2.0 • Period: 02/2015 to 08/2018
Engine codes: D 4204 T13, D 4204 T8
V40 hatchback (525) — D3 2.0 — 150 hp
Engine: 2.0 • Period: April 2015 to unspecified end date
Engine codes: D 4204 T16, D 4204 T9
V60 I (155) — D2 2.0 — 120 hp
Engine: 2.0 • Period: 03/2015 to 05/2018
Engine codes: D 4204 T20, D 4204 T8
V60 I (155) — D3 2.0 — 150 hp
Engine: 2.0 • Period: 03/2015 to 05/2018
Engine codes: D 4204 T4, D 4204 T9

Technical specifications

Product type: Cartridge Turbo
Engine variants: Volvo D2 and D3 2.0
Power outputs: 120 hp, 150 hp
Documented periods: from 02/2015, depending on allocation
Engine codes: D 4204 T4, D 4204 T8, D 4204 T9, D 4204 T13, D 4204 T16, D 4204 T20

Installation tips

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before fitting the central cartridge, identify and rectify the cause of the previous fault. Check the oil supply and return d, the cleanliness of the lubrication circuit, the intake ducts dand any reused sump casings, as well as ensuring there are no foreign objects. Carry out the priming procedure in accordance with the applicable recommendations and have the assembly carried out by a qualified professional, following the manufacturer’s instructions. An uncorrected lubrication fault may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the part number of the original turbo d, the OEM and manufacturer part numbers, as well as the model, generation, body style, engine type, power output, production period and engine code. An identical engine type is not always sufficient to confirm compatibility. If in doubt, please contact us before placing your order.

⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine specification does not always guarantee compatibility.
Product Details
ACG-645T
New
Attachments
Download

Turbo: specialists in turbochargers since 2012

ALFI TURBO specialises in the sale of turbochargers for for cars, commercial vehicles, heavy goods vehicles, construction machinery, agricultural machinery and boats: new turbochargers, remanufactured units, hybrid turbochargers, Cartridge and turbocharger spare parts. Over 20,000 items are available.

Find the right turbocharger for your engine

The turbocharger plays a vital role in the operation and performance d of a turbocharged engine. When a turbocharger needs replacing, it is important d to identify the exact part number before ordering.

ALFI TURBO supplies turbochargers for for a wide range of makes and engine types: cars, commercial vehicles, heavy goods vehicles, construction machinery, tractors and agricultural machinery, as well as various marine applications.

You can search for your turbo based on the vehicle or application, engine type, engine code, or directly using d an OEM or manufacturer part number found on your old turbocharger.

Turbo new, remanufactured, hybrid and Cartridge

Turbo new

Browse our range of new turbochargers for for diesel and petrol engines. ALFI TURBO has over 5,500 new turbochargers in stock for covering a wide range of makes, engine types and turbocharger part numbers.

View new turbochargers →

Turbo as remanufactured units

A standard exchange turbo allows you to replace a turbocharger whilst returning the old part where a deposit is required. Our catalogue includes numerous part numbers for from various makes and engine types.

View standard exchange turbochargers →

Hybrid Turbo

Hybrid turbos are designed for set-ups requiring greater air flow d and higher performance potential than a standard set-up. Specifications depend on the turbo, its tuning and the engine configuration.

View hybrid turbos →

Cartridge turbo

The turbo Cartridge, also known as the central turbo cartridge, comprises the main rotating components of the turbocharger. ALFI TURBO has over 6,000 Cartridge for turbo part numbers.

View turbo Cartridge →

for turbochargers for a wide range of applications

Our catalogue covers a wide range of d applications fitted with d a turbocharged engine.

  • diesel and petrolcars;
  • commercial vehicles;
  • heavy goods vehicles and lorries;
  • construction and civil engineeringmachinery;
  • tractors and agricultural machinery;
  • boats and marine applications.

How do you identify the correct turbo part number?

A single engine type may have been fitted with several different turbochargers depending on theYear, power output, engine version or technical evolution.. The application alone is therefore not always sufficient for to accurately identify the correct turbo.

Before ordering, note down the part numbers shown on the identification plate d of your old turbocharger. This may be d an OEM part number or d a part number from the turbo manufacturer.

Compare these part numbers with those listed on our product pages.. If in doubt, our team can help you verify the part number you are looking for before you place your order.

Turbo failure: identify the cause before replacement

A loss of power, an unusual whistling noise, oil consumption d, abnormal smoke or poor engine performance may be linked to a turbocharger fault.

However, a fault that appears to be turbo-related may also stem d from a lubrication issue, d from contaminated oil, d from a foreign object, from the intake or exhaust systems, or d from another engine peripheral component.

It is therefore important to investigate the cause of the fault before fitting a new turbo or a new Cartridge.

→ Identifying the symptoms d of a turbo failure

→ Understand the main causes of turbo failure d

ALFI TURBO, specialists in turbochargers since 2012

Since 2012, ALFI TURBO has been assisting private individuals and professionals in identifying and replacing turbochargers.

  • over 20,000 items in the catalogue;
  • over 5,500 new turbochargers in stock;
  • over 6,000 ‘ Cartridge ’ available;
  • new turbochargers, remanufactured units, hybrid units and Cartridge;
  • diesel and petrol engines;
  • a wide range of applications for road, agricultural, industrial and marine use;
  • fast delivery in France and across Europe;
  • warranty of up to 2 years depending on the product and applicable conditions.

BEFORE REPLACING A TURBO

A turbocharger failure may be the result d of another engine problem. Before fitting d a new turbo or Cartridge, identify and rectify the cause of the original fault to d avoid d damaging the new part.

Need d'help for finding your turbo?

Do you have a turbocharger part number but can’t find the matching part? Are you unsure which part number to choose? Send us the details from your old turbo so that our team can help you identify the part you’re looking for.

CONTACT ALFI TURBO
