Turbo Cartridge Renault Kangoo 1 5 103 109 110 , 144116581R, 8200905276, 7701479224, 7701478422, 8200678809, 144115477R. dCi hp

  • Online only
  • New product
New
ACK-290B
Year: 02/2008, 02/2009, 06/2009 or 09/2010 — end date not specified
Power: 103, 109 and 110 hp
displacement: 1,461 cc
Engine code: K9K 804, K9K 806, K9K 816
Warranty: 2 years

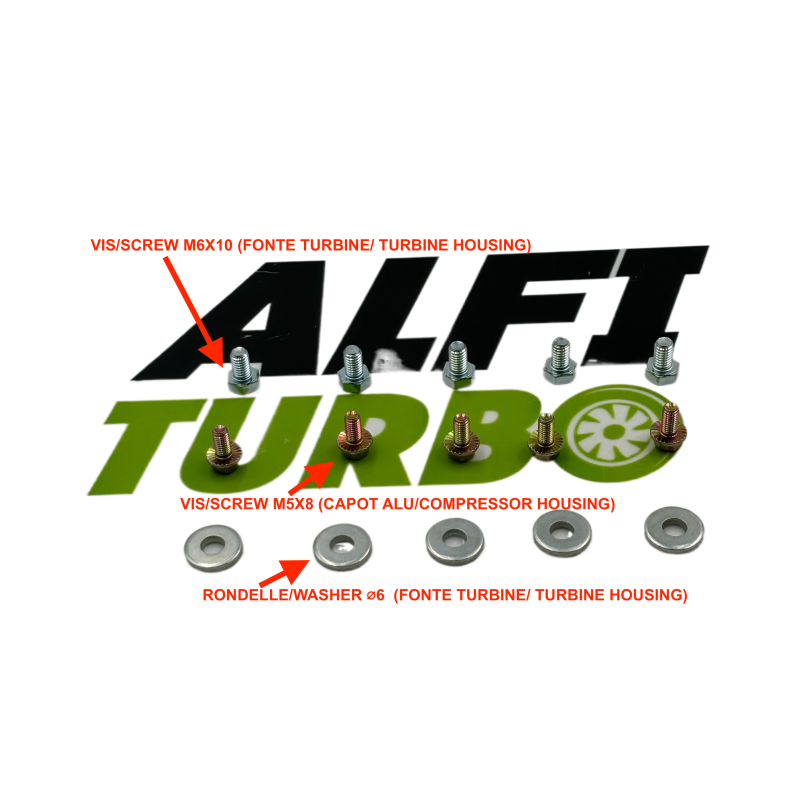

Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€64.61 VAT included

53.84 tax excl.

Quantity
Delivered the next day (if ordered before 5 pm)

Description

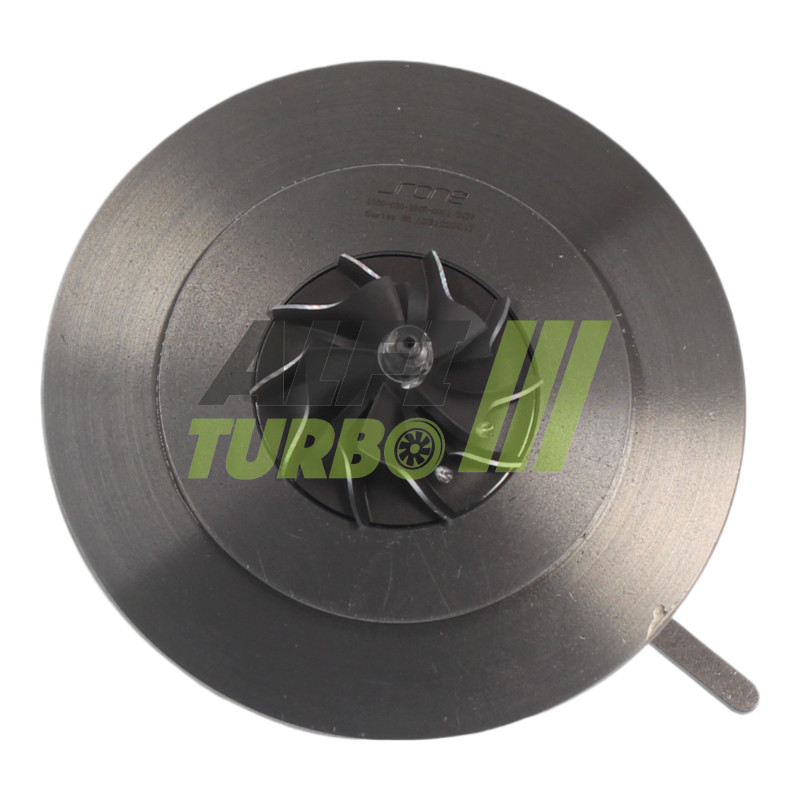

This central cartridge ( Cartridge ) is designed for the turbochargers fitted to several versions of the Renault Kangoo with 1,.,5 dCi diesel engines of 1,461 cc.. The documented applications cover power outputs of 103, 109 and 110 hp as well as the K9K 804, K9K 806 and K9K 816.

This applies in particular to the Kangoo Express, Kangoo / Grand Kangoo II and Kangoo Be Bop models listed below. Compatibility must always be confirmed using the original turbo part number d.

Turbo part numbers

OEM part numbers

144116581R
8200905276
7701479224
7701478422
8200678809
144115477R

Manufacturer’s part numbers

54399980090
54399700046
54399880046
54399700090

Compatible vehicles and applications

Renault

Kangoo Be Bop (KW0/1_) — 1,.5, dCi (KW0F) — 103 hp
Diesel, 1,461 cc — 02/2009 to unspecified end date
Engine code: K9K 806
Kangoo Be Bop (KW0/1_) — 1,.,5, dCi (KW0F) — 103, 1,461 cc — 02/2009 to an unspecified end date: K9K 806 hp
Diesel — 06/2009 to unspecified end date
Engine code: K9K 804
Kangoo / Grand Kangoo II (KW0/1_) — 1,.,5, dCi, 105 (KW0F) — 103 hp
Diesel, 1,461 cc — 02/2008 to unspecified end
Engine code: K9K 806
Kangoo / Grand Kangoo II (KW0/1_) — 1,.,5 dCi,110 (KW0C, KW0H) — 110 hp
Diesel, 1,461 cc — 09/2010 to an unspecified date
Engine codes: K9K 804, K9K 816
Kangoo Express (FW0/1_) — 1,.,5 dCi,105 (FW0F) — 103 hp
Diesel, 1,461 cc — 02/2008 to an unspecified date
Engine code: K9K 806
Kangoo Express (FW0/1_) — 1,.,5 dCi,110 (FW0C, FW0H) — 109 hp
Diesel, 1,461 cc — 09/2010 to an unspecified date
Engine codes: K9K 804, K9K 816

Technical specifications

Product type: Cartridge Turbo
Engine: 1,.5, dCi diesel
displacement: 1461 cc
Documented power outputs: 103, 109 and 110 hp
Engine codes: K9K 804, K9K 806, K9K 816
Documented start dates of production: 02/2008, 02/2009, 06/2009 and 09/2010

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

d'install the central cartridge, identify and rectify the cause of the previous fault. Check the lubrication circuit, the oil supply and return lines d, the cleanliness of the pipes, as well as the inlet, and ensure there are no foreign objects present. The fitting of the Cartridge and its priming must be carried out in accordance with the applicable recommendations and the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further failure of the turbocharger.

How do you identify the correct turbo?

Check the part number of the original turbo d, the OEM and manufacturer part numbers, as well as the model, generation, body style, engine type, power output, production period and engine code.. A single engine type may be fitted with several different turbocharger set-ups.

⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine does not always guarantee compatibility.
If in doubt, please contact us with the part number from your turbocharger.
