Turbo Cartridge Hyundai / 1 4 T-GDI 140 , 49T09-00020, 49309-00020, 90118-01060, 9011801060, 28231-03010, 2823103010 Kia. hp

  • Online only
  • New product
New
ACM-060

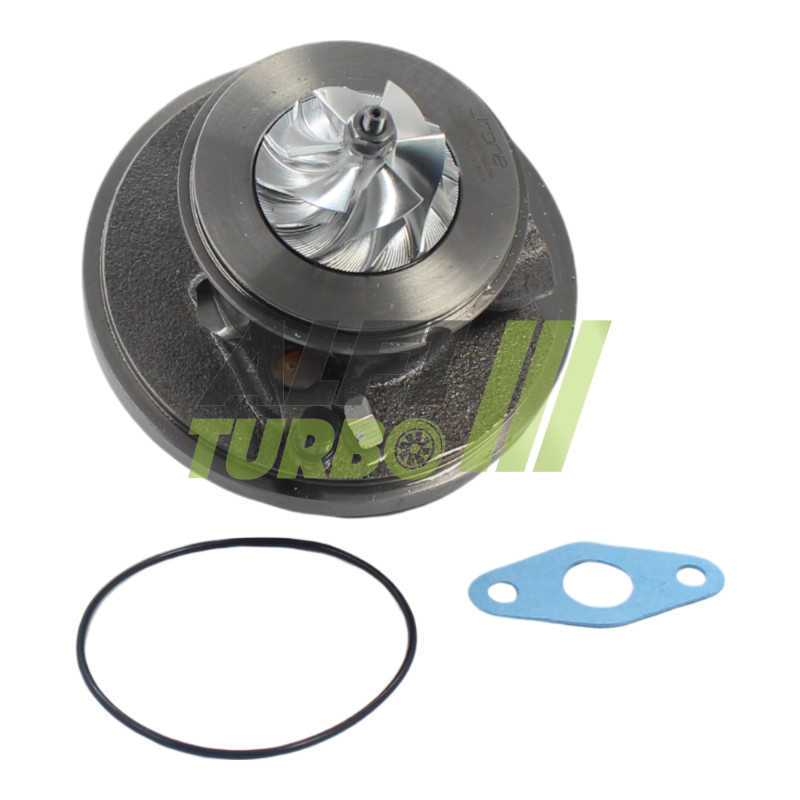

Cartridge for Hyundai and petrol engines: 1- , 4-stroke T-GDI 1353 cm³ G4LD with 140 , fitted between November 2016 and December 2020 depending on the vehicle Compatible with OEM part numbers 28231-03010 and 2823103010, with a 2-year warranty Kia. hp..

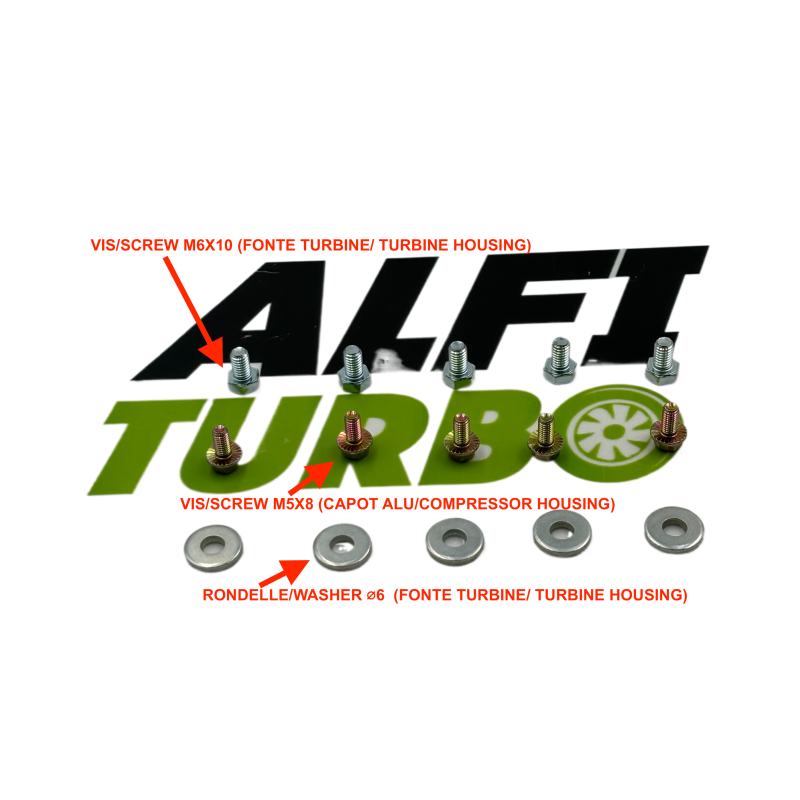

Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
Kit Montage CHRA, vis M5x8 5pcs, M6x10 5pcs, Rondelle diamètre 6 5pcs
9.9 €
€72.06 VAT included

60.05 tax excl.

Quantity
Delivered the next day (if ordered before 5 pm)

Description

This central cartridge Cartridge is designed for the following petrol engines: Hyundai and Kia 1.4 T-GDI with a displacement of 1,353 cm³, producing 140, hp, with engine code G4LD.

In particular, it covers several versions of the Hyundai i30 and the Kia Ceed and Proceed. Compatibility must be confirmed using the part number of the original turbo d.

Turbo part numbers

OEM part numbers

28231-03010
2823103010

Manufacturer part numbers

49T09-00020
49309-00020
90118-01060
9011801060

Compatible vehicles and specifications

Hyundai
i30 (PDE, PD, PDEN) — 1.4 T-GDI 140 hp
Hatchback, petrol 1353 cm³ — 11/2016 to 12/2020
Engine code : G4LD
i30 Estate (PDE) — 1,.,4 T-GDI 140 hp
Estate, petrol 1,353 cm³ — 03/2017 to 12/2020
Engine code : G4LD
i30 Fastback (PDE, PDEN) — 1,.,4 T-GDI 140 hp
Two-box saloon, petrol 1,353 cm³ — 06/2017 to 12/2020
Engine code : G4LD
i30 Hatchback Van (PDE) — 1,.,4 T-GDI 140 hp
Van/hatchback, petrol 1,353 cm³ — Nov 2016 to Dec 2020
Engine code : G4LD
i30 Kombi Van (PDE) — 1,.,4 T-GDI 140 hp
Van/estate, petrol 1,353 cm³ — 03/2017 to 12/2020
Engine code : G4LD
Kia
Ceed (CD) — 1,.,4 T-GDI 140 hp
Hatchback, petrol 1,353 cm³ — 03/2018 to 12/2020
Engine code : G4LD
Ceed Estate Van (CD) — 1,.,4 T-GDI 140 hp
Van/estate, petrol 1,353 cm³ — 04/2018 to 12/2020
Engine code : G4LD
Ceed Hatchback Van (CD) — 1,.,4 T-GDI 140 hp
Pick-up/hatchback, petrol 1,353 cm³ — 03/2018 to 12/2020
Engine code : G4LD
Ceed Sportswagon (CD) — 1,.,4 T-GDI 140 hp
Estate, petrol 1,353 cm³ — 04/2018 to 12/2020
Engine code : G4LD
Proceed (CD) — 1,.,4 T-GDI 140 hp
Estate, petrol 1,353 cm³ — 10/2018 to 12/2020
Engine code : G4LD
Proceed Combi Van (CD) — 1,.,4 T-GDI 140 hp
Van/estate, petrol 1,353 cm³ — 10/2018 to 12/2020
Engine code : G4LD

Technical specifications

Product type: central cartridge Cartridge
Engine: 1,., 4-stroke GDI petrol
displacement: 1,353 cm³
Power: 140 hp
Engine code: G4LD
Documented period: November 2016 to December 2020, depending on application

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before fitting the Cartridge, identify and rectify the cause of the previous fault. Check the oil supply and return d, the cleanliness of the pipes, the intake and the absence of foreign objects. Carry out priming in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the turbo’s part number dthe original part number, the OEM and manufacturer part numbers, as well as the model, generation, body style, power output, years of manufacture and engine code. An identical engine specification does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact our team, providing the part number clearly visible on your original turbo d.

Product Details
ACM-060
3701803901392
New
Attachments
Download

Turbo: specialists in turbochargers since 2012

ALFI TURBO specialises in the sale of turbochargers for for cars, commercial vehicles, heavy goods vehicles, construction machinery, agricultural machinery and boats: new turbochargers, remanufactured units, hybrid turbochargers, Cartridge and turbocharger spare parts. Over 20,000 items are available.

Find the right turbocharger for your engine

The turbocharger plays a vital role in the operation and performance d of a turbocharged engine. When a turbocharger needs replacing, it is important d to identify the exact part number before ordering.

ALFI TURBO supplies turbochargers for for a wide range of makes and engine types: cars, commercial vehicles, heavy goods vehicles, construction machinery, tractors and agricultural machinery, as well as various marine applications.

You can search for your turbo based on the vehicle or application, engine type, engine code, or directly using d an OEM or manufacturer part number found on your old turbocharger.

Turbo new, remanufactured, hybrid and Cartridge

Turbo new

Browse our range of new turbochargers for for diesel and petrol engines. ALFI TURBO has over 5,500 new turbochargers in stock for covering a wide range of makes, engine types and turbocharger part numbers.

View new turbochargers →

Turbo as remanufactured units

A standard exchange turbo allows you to replace a turbocharger whilst returning the old part where a deposit is required. Our catalogue includes numerous part numbers for from various makes and engine types.

View standard exchange turbochargers →

Hybrid Turbo

Hybrid turbos are designed for set-ups requiring greater air flow d and higher performance potential than a standard set-up. Specifications depend on the turbo, its tuning and the engine configuration.

View hybrid turbos →

Cartridge turbo

The turbo Cartridge, also known as the central turbo cartridge, comprises the main rotating components of the turbocharger. ALFI TURBO has over 6,000 Cartridge for turbo part numbers.

View turbo Cartridge →

for turbochargers for a wide range of applications

Our catalogue covers a wide range of d applications fitted with d a turbocharged engine.

  • diesel and petrolcars;
  • commercial vehicles;
  • heavy goods vehicles and lorries;
  • construction and civil engineeringmachinery;
  • tractors and agricultural machinery;
  • boats and marine applications.

How do you identify the correct turbo part number?

A single engine type may have been fitted with several different turbochargers depending on theYear, power output, engine version or technical evolution.. The application alone is therefore not always sufficient for to accurately identify the correct turbo.

Before ordering, note down the part numbers shown on the identification plate d of your old turbocharger. This may be d an OEM part number or d a part number from the turbo manufacturer.

Compare these part numbers with those listed on our product pages.. If in doubt, our team can help you verify the part number you are looking for before you place your order.

Turbo failure: identify the cause before replacement

A loss of power, an unusual whistling noise, oil consumption d, abnormal smoke or poor engine performance may be linked to a turbocharger fault.

However, a fault that appears to be turbo-related may also stem d from a lubrication issue, d from contaminated oil, d from a foreign object, from the intake or exhaust systems, or d from another engine peripheral component.

It is therefore important to investigate the cause of the fault before fitting a new turbo or a new Cartridge.

→ Identifying the symptoms d of a turbo failure

→ Understand the main causes of turbo failure d

ALFI TURBO, specialists in turbochargers since 2012

Since 2012, ALFI TURBO has been assisting private individuals and professionals in identifying and replacing turbochargers.

  • over 20,000 items in the catalogue;
  • over 5,500 new turbochargers in stock;
  • over 6,000 ‘ Cartridge ’ available;
  • new turbochargers, remanufactured units, hybrid units and Cartridge;
  • diesel and petrol engines;
  • a wide range of applications for road, agricultural, industrial and marine use;
  • fast delivery in France and across Europe;
  • warranty of up to 2 years depending on the product and applicable conditions.

BEFORE REPLACING A TURBO

A turbocharger failure may be the result d of another engine problem. Before fitting d a new turbo or Cartridge, identify and rectify the cause of the original fault to d avoid d damaging the new part.

Need d'help for finding your turbo?

Do you have a turbocharger part number but can’t find the matching part? Are you unsure which part number to choose? Send us the details from your old turbo so that our team can help you identify the part you’re looking for.

CONTACT ALFI TURBO
