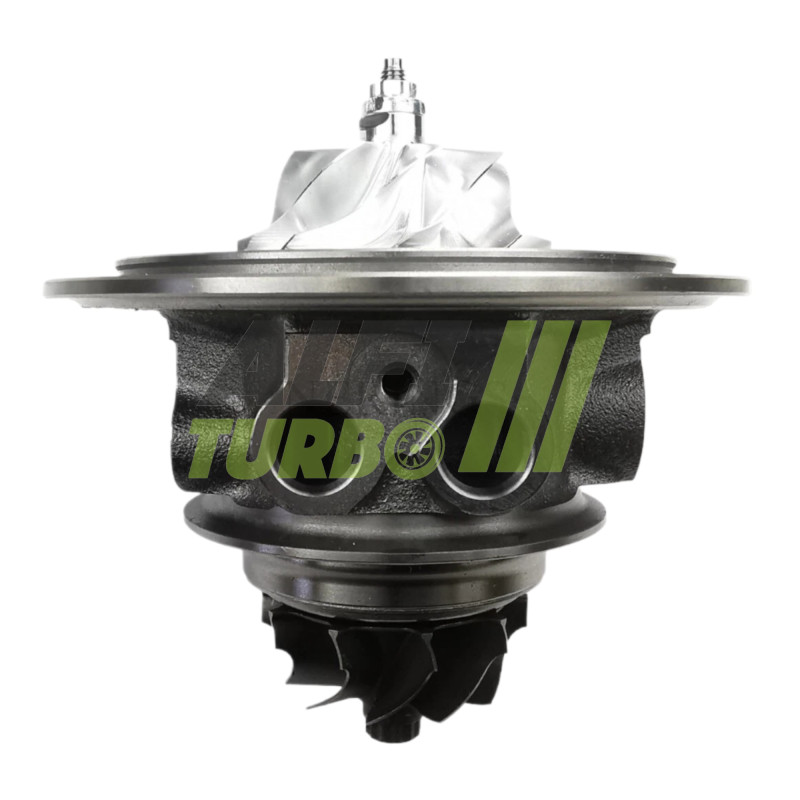

Central cartridge Cartridge for Turbocharger
Intended for for the applications Bmw and Mini 2.0i documented as 231 and 245 hp, with engine codes B42 S20 A, B46 A20 B and B48 A20 B. Please check the part number of the original dturbocharger before placing any order.
OEM part numbers:
11658631903
11658662072
11659845812
Manufacturer’s part numbers:
852594-0022
852594-0028
852594-22
852594-28
852594-5022S
852594-5028S
894018-0001
894018-0003
894018-0005
894018-1
894018-3
894018-5
894018-5001S
894018-5003S
894018-5005S
Compatible vehicles and specifications:
Bmw 1 Series (F40), 128 ti 2.0, 245 hp, from 11/2020, B48 A20 B engine.
Bmw 2 Series Active Tourer (F45), 225i xDrive 2.0, 231 hp, from March 2014, B48 A20 B engine.
Bmw X1 (F48), xDrive25i 2.0, 231 hp, from July 2015, B42 S20 A engines from March 2018, B46 A20 B and B48 A20 B engines from July 2015.
Mini (F56), John Cooper Works 2.0, 231 hp, from March 2015, B46 A20 B engines from July 2019 and B48 A20 B.. End dates not specified.
Technical specifications:
Product type: Cartridge Turbo .
displacement : 2.0 litres.
Power : 231 or 245 hp depending on the application.
Engine codes: B42 S20 A, B46 A20 B, B48 A20 B.
Warranty: 2 years.
⚠️ WARNING — IMPORTANT BEFORE INSTALLATION
Before dinstalling the cartridge Cartridge, identify and rectify the cause of the previous fault. Check the circuit, the oil supply and return lines d, the cleanliness of the pipes and the intake.. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions.. A lubrication fault that is not rectified may result in the turbocharger failing again.
⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine type does not always guarantee compatibility.
