Turbo Cartridge 2.0 TFSi 245 249 252 hp, 06L145702L, 06L145702S, 06L145722A, 06L145722D, 06L145722M, 06L145722P, 9VA11, F51CEG-S

  • Online only
New
Turbo Cartridge 2.0 TFSi 245 249 252 hp, 06L145702L, 06L145702S, 06L145722A, 06L145722D, 06L145722M, 06L145722P, 9VA11, F51CEG-S
  • Turbo Cartridge 2.0 TFSi 245 249 252 hp, 06L145702L, 06L145702S, 06L145722A, 06L145722D, 06L145722M, 06L145722P, 9VA11, F51CEG-S
ACI-9VA11
Year: May 2015 to an unspecified date
Power: 245, 249 and 252 hp
displacement: 2.0 TFSI
Engine code: CYMC, CYRB, CYRC, DKNA, DLHA, DLHB, DMFB
Warranty: 2 years
€84.48 VAT included

70.4 tax excl.

Quantity
Next day delivery (orders placed before 5pm)

Description

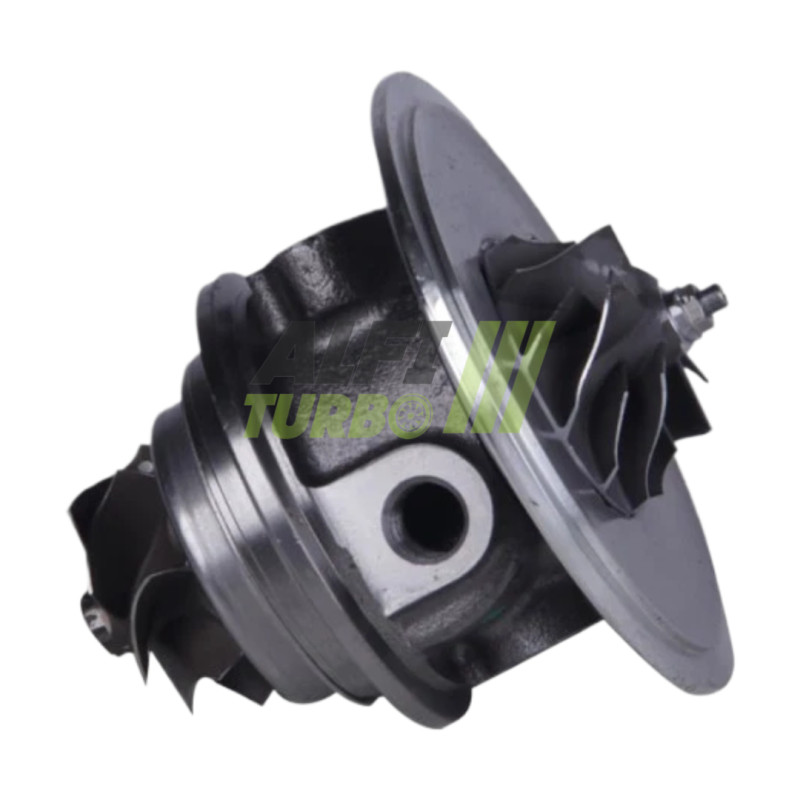

This central cartridge Cartridge is designed for turbochargers fitted to several engine variants 2.0 TFSI with 245, 249 and 252 hp. It enables the replacement of the central rotating assembly whilst retaining the turbocharger’s compatible casings.

The main documented applications are for the Audi A4, A5, A6, A7 and Q7, as well as the Volkswagen Touareg. Compatibility must always be confirmed using the part number of the original turbo d.

Turbo part numbers

OEM part numbers

06L145702L
06L145702S
06L145722A
06L145722D
06L145722M
06L145722P
06L145722T
06L145874E
06L145722E
06L145722F
06L145722G
06L145722S
06L145907D
06L145874EX

Manufacturer’s part numbers

9VA11
F51CEG-SR033B
F51CEG-SR033

Compatible vehicles and applications

Audi

A4 Allroad B9 (8WH, 8WJ) — PC — 245 hp
2.0 TFSI petrol/electric — 07/2018 to unspecified end
Engine code : DKNA
A4 Allroad B9 (8WH, 8WJ) — PC — 249 hp
2.0 TFSI petrol — 05/2016 to 10/2019
Engine code : CYRC
A4 Allroad B9 (8WH, 8WJ) — PC — 252 hp
2.0 TFSI petrol — 01/2016 to unspecified end
Engine codes: CYMC, CYRB, DLHB from 12/2020
A4 B9 (8W2, 8WC) — PC — 245 hp
2.0 TFSI petrol/electric — 07/2018 to 11/2019
Engine code : DKNA
A4 B9 (8W2, 8WC) — PC — 249 hp
2.0 TFSI petrol — 11/2015 to 11/2019
Engine code : CYRC
A4 B9 (8W2, 8WC) — PC — 252 hp
2.0 TFSI petrol — 05/2015 to 11/2019
Engine codes: CYMC, CYRB
A4 B9 (8W2, 8WC) — PC — 252 hp
2.0 TFSI petrol — 05/2015 to unspecified end
Engine codes: CYMC, CYRB
A4 B9 Avant (8W5, 8WD) — PC — 245 hp
2.0 TFSI petrol/electric — 07/2018 to 10/2019
Engine code : DKNA
A4 B9 Avant (8W5, 8WD) — PC — 249 hp
2.0 TFSI petrol — 11/2015 to 10/2019
Engine code : CYRC
A4 B9 Front (8W5, 8WD) — PC — 249 hp
2.0 TFSI petrol — 05/2016 to 10/2019
Engine code : CYRC
A4 B9 Front (8W5, 8WD) — PC — 252 hp
2.0 TFSI petrol — 08/2015 to 10/2019
Engine codes: CYMC, CYRB
A4 B9 Front (8W5, 8WD) — PC — 252 hp
2.0 TFSI petrol — 05/2016 to 10/2019
Engine codes: CYMC, CYRB
A5 (F53, F5P) — PC — 245 hp
2.0 TFSI petrol/electric — 07/2018 to 08/2020
Engine code : DKNA
A5 (F53, F5P) — PC — 249 hp
2.0 TFSI petrol — 06/2016 to 02/2020
Engine code : CYRC
A5 (F53, F5P) — PC — 252 hp
2.0 TFSI petrol — 06/2016 to unspecified end
Engine codes: CYMC, CYRB, DLHB from 11/2019
A5 (F53, F5P) — PC — 252 hp
2.0 TFSI petrol — 11/2016 to 02/2020
Engine code : CYRB
A5 Convertible (F57, F5E) — PC — 245 hp
2.0 TFSI petrol/electric — 07/2018 to 12/2019
Engine code : DKNA
A5 Convertible (F57, F5E) — PC — 252 hp
2.0 TFSI petrol — 11/2016 to unspecified end
Engine codes: CYMC, CYRB, DLHB from 11/2019
A5 Convertible (F57, F5E) — PC — 252 hp
2.0 TFSI petrol — 03/2017 to 12/2019
Engine code : CYRB
A5 Sportback (F5A, F5F) — PC — 245 hp
2.0 TFSI petrol/electric — 07/2018 to 02/2020
Engine code : DKNA
A5 Sportback (F5A, F5F) — PC — 245 hp
2.0 TFSI petrol/electric — 02/2019 to 02/2020
Engine code : DKNA
A5 Sportback (F5A, F5F) — PC — 249 hp
2.0 TFSI petrol — 09/2016 to 02/2020
Engine code : CYRC
A5 Sportback (F5A, F5F) — PC — 252 hp
2.0 TFSI petrol — 09/2016 to unspecified end date
Engine codes: CYMC, CYRB, DLHB from 11/2020
A5 Sportback (F5A, F5F) — PC — 252 hp
2.0 TFSI petrol — 11/2016 to 02/2020
Engine code : CYRB
A6 C8 (4A2) — PC — 245 hp
2.0 TFSI petrol/electric — 08/2018 to unspecified end
Engine codes: DKNA, DLHA
A6 C8 Avant (4A5) — PC — 245 hp
2.0 TFSI petrol/electric — 08/2018 to unspecified end date
Engine codes: DKNA, DLHA
A7 Sportback (4KA) — PC — 245 hp
2.0 TFSI petrol/electric — 07/2018 to unspecified end date
Engine codes: DKNA, DLHA
Q7 (4MB, 4MG) — PC — 252 hp
2.0 TFSI petrol — 08/2015 to unspecified end date
Engine codes: CYMC, CYRB, DMFB

Volkswagen

Touareg (CR7, RC8) — PC — 249 hp
2.0 TFSI petrol — 05/2018 to 11/2023
Engine code : CYRC

Technical specifications

Product type: central cartridge Cartridge Turbo
Engine: 2.0 TFSI
Fuel: petrol or petrol/electric depending on application
Power: 245, 249 and 252 hp
Engine codes: CYMC, CYRB, CYRC, DKNA, DLHA, DLHB, DMFB
Documented period: May 2015 to an unspecified end date depending on the vehicle
Warranty: 2 years

Fitting advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before dinstalling the cartridge Cartridge, identify and rectify the cause of the previous fault. Check any reused sump housings, the lubrication circuit, the oil supply and return lines d, and ensure the pipes are clean.. Also check the intake for any foreign objects.. Carry out the assembly, tightening, alignment and priming in accordance with the applicable recommendations. A lubrication fault that is not rectified may lead to the turbocharger failing again.

How do you identify the correct turbo?

Check the turbo’s part number d– the original part number, OEM and manufacturer part numbers, model, generation, body style, power output, years of manufacture and engine code. An identical engine specification is not always sufficient to confirm the compatibility of the cartridge Cartridge.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us, providing the part number clearly visible on your turbocharger.

Product Details
ACI-9VA11
3701803908223
New
