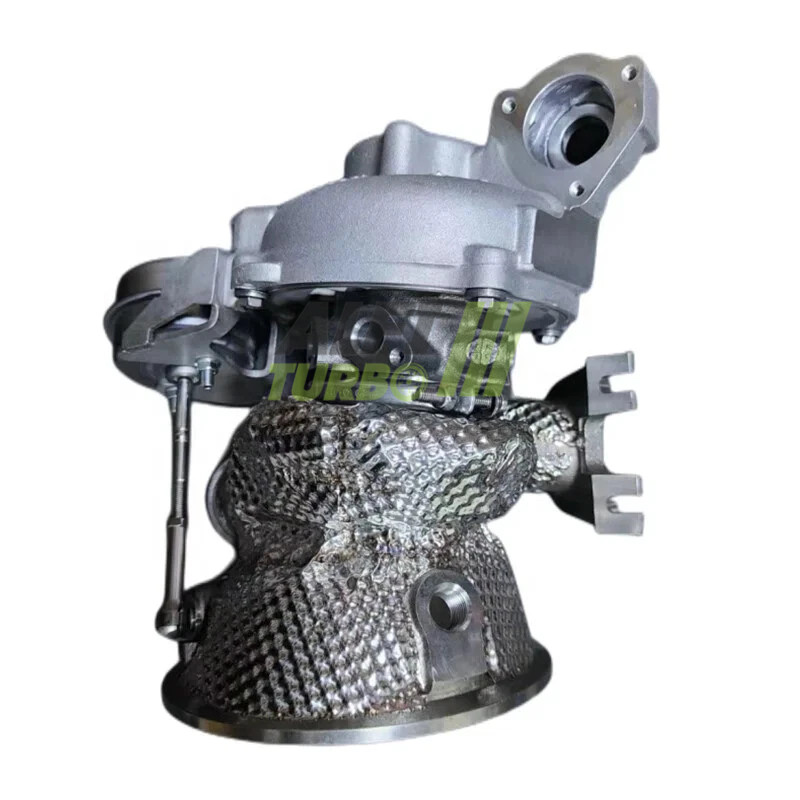

Turbo 3.0 TFSI TSI 286 330 340 354 449 455 461 462 hp, 06M145689M, 06M145689J, 06M145689A, 18539700164, 18539700025, 18539700070

  • Online only
  • New product
Refurbished
Turbo 3.0 TFSI TSI 286 330 340 354 449 455 461 462 hp, 06M145689M, 06M145689J, 06M145689A, 18539700164, 18539700025, 18539700070
  • Turbo 3.0 TFSI TSI 286 330 340 354 449 455 461 462 hp, 06M145689M, 06M145689J, 06M145689A, 18539700164, 18539700025, 18539700070
  • Turbo VW Touareg 3.0 TSI 340 hp, 06M145689M, 06M145689J, 06M145689A, 18539700164, 18539700025, 18539700070, 18539700102
  • Turbo VW Touareg 3.0 TSI 340 hp, 06M145689M, 06M145689J, 06M145689A, 18539700164, 18539700025, 18539700070, 18539700102
KX00-AP76
Year: from May 2016 onwards, depending on allocation; purposes not specified
Power: 286, 330, 340, 354, 449, 455, 461 and 462 hp
displacement: 3,.,0 litres
Engine code: CWGD, DLZA, CZSE, CZSA, EALD, DCBD, DCBE, MDC.BE, DLZB, MCX.TA
Warranty: 2 years
Deposit: Immediate dispatch +€90 (refunded upon return of the old turbo)
Deposit: Immediate dispatch +€90 (refunded upon return of the old turbo)
90 €
Turbo Complete Gasket Set (required for fitting the new turbo)
Turbo Complete Gasket Set (required for fitting the new turbo)
18 €
€370.80 VAT included

309 tax excl.

Quantity
Delivery within 3–30 working days

Description

This turbocharger is designed for several 3-.0- TFSI/TSI engines in the Audi, Porsche and Volkswagen. ranges. The documented applications cover power outputs from 286 to 462 hp, with petrol and petrol-electric versions.

It is fitted, in particular, to certain Audi A4, A5, A6, A7, A8, Q5, Q7 and Q8 models, as well as Porsche Cayenne, Macan and Panamera models and the Volkswagen Touareg. The part number of the original dturbo must be checked before placing any order.

Turbo part numbers

OEM part numbers

PAB145689
PAC145689
9A714568900
06M145689M
06M145689J
06M145689AC
06M145689A

Manufacturer’s part numbers

1853-970-0025
1853-970-0070
1853-970-0102
1853-970-0164
1853-988-0164
18539700164
18539880164
18539700025
18539700070
18539700102
18539880025
18539880070
18539880102

Compatible vehicles and assignments

Audi
A4 B9 (8W2, 8WC) — 354 hp
Essence — from 05/2016, end date unspecified
Engine code : CWGD
A4 B9 Front (8W5, 8WD) — 354 hp
Essence — from May 2016, end date unspecified
Engine code : CWGD
A5 (F53, F5P) — 354 hp
Essence — from 07/2016, end date unspecified
Engine code : CWGD
A5 Cabriolet (F57, F5E) — 354 hp
Essence — from March 2017, end date unspecified
Engine code : CWGD
A5 Sportback (F5A, F5F) — 354 hp
Essence — from 09/2016, end date unspecified
Engine code : CWGD
A6 C8 (4A2) — 340 hp
Essence —electric — from 02/2018, end date unspecified
Engine code : DLZA
A6 C8 Avant (4A5) — 340 hp
Essence -electric — from May 2018, end date unspecified
Engine code : DLZA
A6 Allroad C8 (4AH) — 340 hp
Essence -electric — from 11/2019, end date unspecified
Engine code : DLZA
A7 Sportback (4KA) — 340 hp
Essence -electric — from 10/2017, end date unspecified
Engine code : DLZA
A8 D5 (4N2, 4N8, 4NC, 4NL) — 286 hp
Essence -electric — from 07/2018, end date unspecified
Engine code : CZSA
A8 D5 (4N2, 4N8, 4NC, 4NL) — 340 hp
Essence -electric — from 06/2017, end date unspecified
Engine code : CZSE
A8 D5 (4N2, 4N8, 4NC, 4NL) — 449 hp
Essence -electric — from 10/2019, end date unspecified
Engine code : CZSE
A8 D5 (4N2, 4N8, 4NC, 4NL) — 462 hp
Essence -electric — from 11/2021, end date unspecified
Engine codes: CZSE, EALD
Q5 (FYB, FYG) — 354 hp
Essence — from Nov 2016, end date unspecified
Engine code : CWGD
Q7 (4MB, 4MG) — 340 hp
Essence —electric — from 07/2019, end date unspecified
Engine code : DCBD
Q7 (4MB, 4MG) — 455 hp
Essence -electric — from 11/2019, end date unspecified
Engine code : DCBE
Q8 (4MN, 4MT) — 340 hp
Essence -electric — from 02/2018, end date unspecified
Engine code : DCBD
Porsche
Cayenne (9YA) — 340 hp
Essence — from May 2017, end date unspecified
Engine codes: DCBE, MDC.BE
Cayenne Coupé (9YB) — 340, hp,
,Essence — from 01/2019, end date unspecified
Engine code : DCBE
Cayenne Coupé (9YB) — 461 hp
Essence —electric — from January 2019, end date unspecified
Engine code : DCBE
Cayenne (9YA) — 462 hp
Essence -electric — from 01/2019, end date unspecified
Engine codes: DCBE, MDC.BE
Macan (95B) — 354 hp
Essence — from May 2018, end date unspecified
Engine code : DLZB
Panamera (971) — 330 hp
Essence — from May 2016, end date unspecified
Engine code : MCX.TA
Panamera Sport Turismo (971) — 330 hp
Essence — from May 2017, end date unspecified
Engine code : MCX.TA
Volkswagen
Touareg (CR7, RC8) — 340 hp
Essence — from March 2018, end date unspecified
Engine code : DCBE

Technical specifications

Product type: Turbo
Engine: 3.0 TFSI/TSI
displacement: 3.0 litres
Fuel: petrol or petrol-electric depending on application
Documented power outputs: 286, 330, 340, 354, 449, 455, 461 and 462 hp
Engine codes: CWGD, DLZA, CZSE, CZSA, EALD, DCBD, DCBE, MDC.BE, DLZB, MCX.TA
Documented periods: start dates between May 2016 and November 2021 depending on application; end dates not specified

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before installation, identify and rectify the cause of the previous failure. Check the lubrication circuit, the oil supply and return d, as well as the cleanliness of the pipes.

Check the inlet and ensure there are no foreign objects present. Prime the system in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may result in the turbocharger failing again.

How do you identify the correct turbo?

Check the turbo part number d, the original OEM and manufacturer part numbers, as well as the make, model, generation, body style, engine type, power output, production period and engine code.. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this product sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the part number from your turbocharger.
