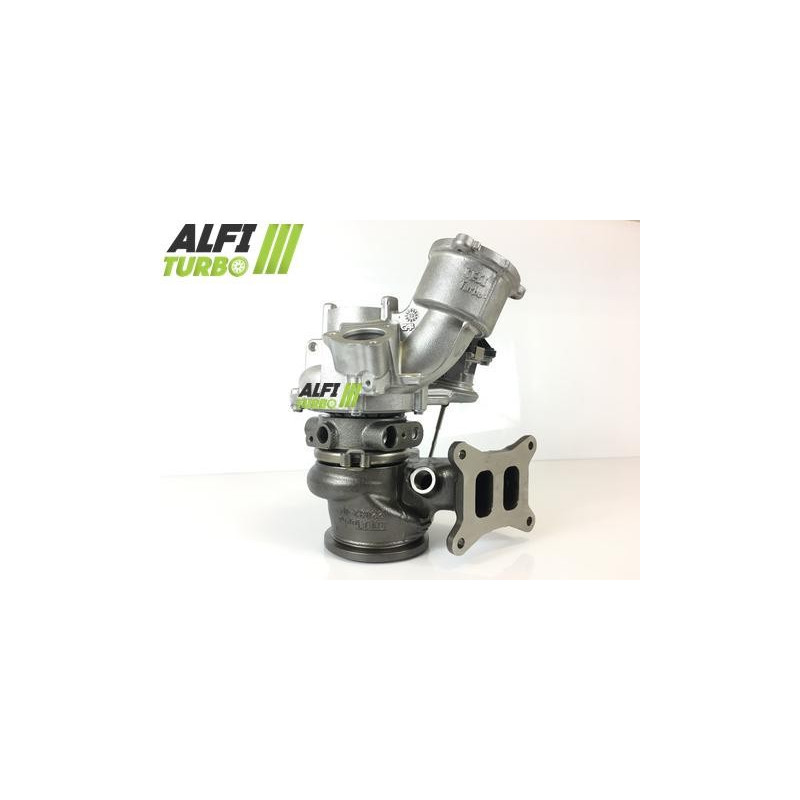

Turbo VW Tiguan 2.0 TFSI 220 230 hp, 9VA09, 06K145702E, 06K145702K, 06K145702Q, 06K145702R, 06K145702T, 06K145722G,

  • Online only
  • Included Gasket Kit
New
Turbo VW Tiguan 2.0 TFSI 220 230 hp, 9VA09, 06K145702E, 06K145702K, 06K145702Q, 06K145702R, 06K145702T, 06K145722G,
  • Turbo VW Tiguan 2.0 TFSI 220 230 hp, 9VA09, 06K145702E, 06K145702K, 06K145702Q, 06K145702R, 06K145702T, 06K145722G,
AI09-A09
Year: November 2012 to an unspecified date
Power: 220 hp, 230 hp and 231 hp
displacement: 2.0 TFSI
Engine code: CHHA, CHHB, CHHC, CNTC, CWZA, CXCB, CXDA, CXDB, DKTA, DNJA
Warranty: 2 years

Included Gasket Kit

€400.80 VAT included

334 tax excl.

Quantity
Delivered the next day (order before 17h)

Description

This turbocharger is designed for petrol engines 2.0 TFSI with power outputs ranging from 220 to 231 hp fitted to several models Audi, Skoda and Volkswagen. It covers, in particular, the applications documented at for, including the VW Tiguan, Tiguan Allspace and Golf VII.

Compatibility depends on the original turbo part number d, the engine code, the power output and the period of installation. These details must be checked before placing an order.

Turbo part numbers

OEM part numbers

06K145702
06K145702E
06K145702K
06K145702Q
06K145702R
06K145702T
06K145722G
06K145722L
06K145874C
06K145874E
06K145874K
06K145874L
06K145874M

Manufacturer’s part numbers

9VA09
1752T12
1654015

Compatible vehicles and applications

AUDI
A1 (8X1, 8XK) — 231 hp
PC • Essence • 03/2014 to 10/2018
Engine code : CWZA
A1 Sportback (8XA, 8XF) — 231 hp
PC • Essence • 03/2014 to 10/2018
Engine code : CWZA
A3 Convertible (8V7, 8VE) — 220 hp
PC • Essence • May 2014 to October 2020
Engine code : CNTC
Q3 (F3B) — 230 hp
PC • Essence • since 07/2018, end date unspecified
Engine code : DKTA
Q3 Sportback (F3N) — 230 hp
PC • Essence • since June 2019, end date unspecified
Engine code : DKTA
TT (FV3, FVP) — 230 hp
PC • Essence • since July 2014, end date unspecified
Engine code : CHHC
TT Roadster (FV9, FVR) — 230 hp
PC • Essence • since November 2014, end date unspecified
Engine code : CHHC
Skoda
Octavia III (5E3, NL3, NR3) — 220 hp
PC • Essence • May 2013 to February 2017
Engine code : CHHB
Octavia III (5E3, NL3, NR3) — 230 hp
PC • Essence • May 2015 to October 2020
Engine code : CHHA
Octavia III Combi (5E5, 5E6) — 220 hp
PC • Essence • 11/2012 to 02/2017
Engine code : CHHB
Octavia III Estate (5E5, 5E6) — 230 hp
PC • Essence • May 2015 to October 2020
Engine code : CHHA
Superb III (3V3) — 220 hp
PC • Essence • since 03/2015, end date unspecified
Engine code : CHHB
Superb III Estate (3V5) — 220 hp
PC • Essence • since March 2015, end date unspecified
Engine code : CHHB
Volkswagen
Golf VII (5G1, BQ1, BE1, BE2) — 220 hp
PC • Essence • April 2013 to August 2020
Engine codes: CHHB, CNTC, CXCB, CXDA
Golf VII (5G1, BQ1, BE1, BE2) — 230 hp
PC • Essence • 04/2013 to 08/2020
Engine codes: CHHA, CXDB
Golf VII Van (5G1) — 220 hp
LCV • Essence • 04/2013 to 03/2017
Engine code : CHHB
Golf VII Van (5G1) — 230 hp
LCV • Essence • April 2015 to March 2017
Engine code : CHHA
Tiguan (AD1, AX1) — 230 hp
PC • Essence • 09/2018 to 07/2020
Engine code : DKTA
Tiguan Allspace (BW2, BJ2) — 220 hp
PC • Essence • from 07/2017, end date unspecified
Engine codes and details available: CXDA (07.21-.), DNJA (03.19-09

Technical specifications

Product type: Turbo
Engine: 2.0 TFSI
Fuel: Essence
Documented power ratings: 220 hp, 230 hp and 231 hp
Engine codes: CHHA, CHHB, CHHC, CNTC, CWZA, CXCB, CXDA, CXDB, DKTA, DNJA
Documented production periods: from November 2012 to an unspecified end date, depending on the application

Fitting instructions

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication circuit, the supply and return lines das well as the cleanliness of the oil lines. Also check the inlet and ensure there are no foreign objects present. Prime the turbo in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to further turbocharger failure.

How do you identify the correct turbo?

Check the turbo’s part number d– the original, OEM and manufacturer part numbers – then compare the make, model, generation, body style, engine type, power output hp, years of manufacture and engine code.. An identical engine type does not always guarantee compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this product sheet.. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us, stating the part number found on your original dturbocharger and your vehicle details.

Product Details
AI09-A09
3701803914217
New
Attachments
Download

Turbo: specialists in turbochargers since 2012

ALFI TURBO specialises in the sale of turbochargers for for cars, commercial vehicles, heavy goods vehicles, construction machinery, agricultural machinery and boats: new turbochargers, remanufactured units, hybrid turbochargers, Cartridge and turbocharger spare parts. Over 20,000 items are available.

Find the right turbocharger for your engine

The turbocharger plays a vital role in the operation and performance d of a turbocharged engine. When a turbocharger needs replacing, it is important d to identify the exact part number before ordering.

ALFI TURBO supplies turbochargers for for a wide range of makes and engine types: cars, commercial vehicles, heavy goods vehicles, construction machinery, tractors and agricultural machinery, as well as various marine applications.

You can search for your turbo based on the vehicle or application, engine type, engine code, or directly using d an OEM or manufacturer part number found on your old turbocharger.

Turbo new, remanufactured, hybrid and Cartridge

Turbo new

Browse our range of new turbochargers for for diesel and petrol engines. ALFI TURBO has over 5,500 new turbochargers in stock for covering a wide range of makes, engine types and turbocharger part numbers.

View new turbochargers →

Turbo as remanufactured units

A standard exchange turbo allows you to replace a turbocharger whilst returning the old part where a deposit is required. Our catalogue includes numerous part numbers for from various makes and engine types.

View standard exchange turbochargers →

Hybrid Turbo

Hybrid turbos are designed for set-ups requiring greater air flow d and higher performance potential than a standard set-up. Specifications depend on the turbo, its tuning and the engine configuration.

View hybrid turbos →

Cartridge turbo

The turbo Cartridge, also known as the central turbo cartridge, comprises the main rotating components of the turbocharger. ALFI TURBO has over 6,000 Cartridge for turbo part numbers.

View turbo Cartridge →

for turbochargers for a wide range of applications

Our catalogue covers a wide range of d applications fitted with d a turbocharged engine.

  • diesel and petrolcars;
  • commercial vehicles;
  • heavy goods vehicles and lorries;
  • construction and civil engineeringmachinery;
  • tractors and agricultural machinery;
  • boats and marine applications.

How do you identify the correct turbo part number?

A single engine type may have been fitted with several different turbochargers depending on theYear, power output, engine version or technical evolution.. The application alone is therefore not always sufficient for to accurately identify the correct turbo.

Before ordering, note down the part numbers shown on the identification plate d of your old turbocharger. This may be d an OEM part number or d a part number from the turbo manufacturer.

Compare these part numbers with those listed on our product pages.. If in doubt, our team can help you verify the part number you are looking for before you place your order.

Turbo failure: identify the cause before replacement

A loss of power, an unusual whistling noise, oil consumption d, abnormal smoke or poor engine performance may be linked to a turbocharger fault.

However, a fault that appears to be turbo-related may also stem d from a lubrication issue, d from contaminated oil, d from a foreign object, from the intake or exhaust systems, or d from another engine peripheral component.

It is therefore important to investigate the cause of the fault before fitting a new turbo or a new Cartridge.

→ Identifying the symptoms d of a turbo failure

→ Understand the main causes of turbo failure d

ALFI TURBO, specialists in turbochargers since 2012

Since 2012, ALFI TURBO has been assisting private individuals and professionals in identifying and replacing turbochargers.

  • over 20,000 items in the catalogue;
  • over 5,500 new turbochargers in stock;
  • over 6,000 ‘ Cartridge ’ available;
  • new turbochargers, remanufactured units, hybrid units and Cartridge;
  • diesel and petrol engines;
  • a wide range of applications for road, agricultural, industrial and marine use;
  • fast delivery in France and across Europe;
  • warranty of up to 2 years depending on the product and applicable conditions.

BEFORE REPLACING A TURBO

A turbocharger failure may be the result d of another engine problem. Before fitting d a new turbo or Cartridge, identify and rectify the cause of the original fault to d avoid d damaging the new part.

Need d'help for finding your turbo?

Do you have a turbocharger part number but can’t find the matching part? Are you unsure which part number to choose? Send us the details from your old turbo so that our team can help you identify the part you’re looking for.

CONTACT ALFI TURBO
