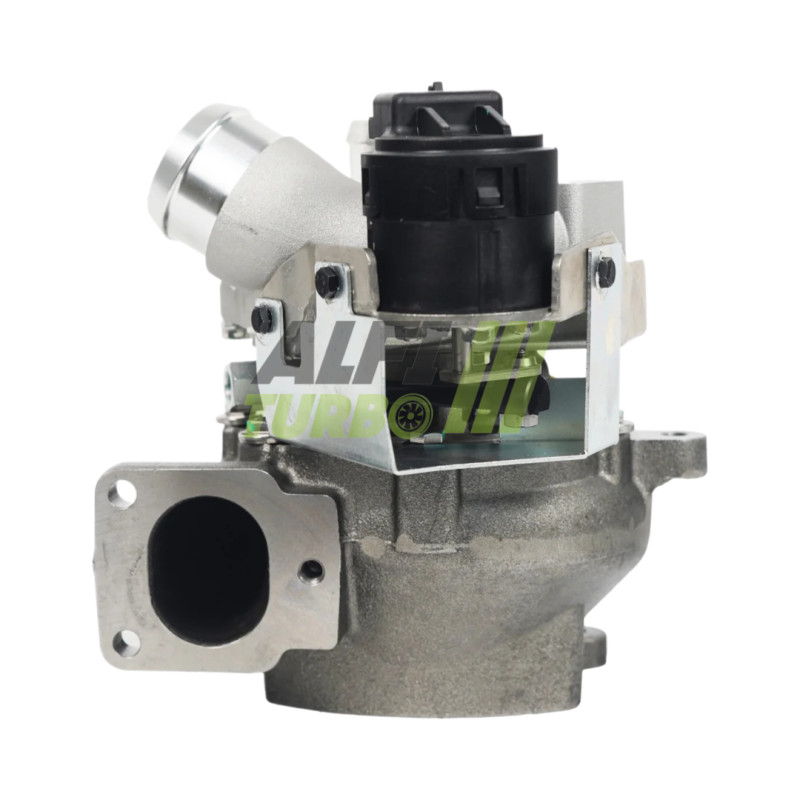

This turbocharger is designed for 2.7 TDV6 diesel engines with 190 hp, fitted to the following models: Land Rover as documented here:. It is suitable for the 276DT engine, depending on the production periods and part numbers listed below.
The listed applications relate to the Discovery III (L319) and the Range Rover Sport I (L320). The part number of the original dturbocharger must be checked before placing an order.
Turbo part numbers
OEM part numbers
1334916
1354257
1357581
1372734
4H2Q6K682CB
4H2Q6K682CF
4H2Q6K682CG
4H2Q6K682CH
4H2Q6K682CJ
4H2Q6K682CK
4H2Q6K682CL
4H2Q6K682DB
4H2Q6K682DC
4H2Q9T428AB
4H2Q9T428AC
LR003356
LR004286
LR005846
LR005954
LR006422
LR008838
LR010188
LR021042
LR021637
RM4H2Q9T428AB
RM4H2Q9T428AC
Manufacturer’s part numbers
5304-970-0039
5304-988-0039
53049700039
53049880039
5304-970-0065
5304-988-0065
53049700065
53049880065
5304-970-0069
5304-988-0069
53049700069
53049880069
5304-970-0073
5304-988-0073
53049700073
53049880073
5304-970-0115
5304-988-0115
53049700115
53049880115
5304-970-0116
5304-988-0116
53049700116
53049880116
Compatible vehicles and assignments
Land Rover
Discovery III (L319) — PC — 190 hp
2.7 TDV6 diesel — 07/2004 to 09/2009
Engine code: 276DT (TDV6)
Range Rover Sport I (L320) — PC — 190 hp
2.7 TDV6 diesel — 02/2005 to 03/2013
Engine code: 276DT (TDV6)
Technical specifications
Product type: Turbo
Engine: 2.7 TDV6
displacement: 2.7 L
Fuel: Diesel
Power: 190 hp
Engine code: 276DT (TDV6)
Documented production periods: 07/2004 to 09/2009 and 02/2005 to 03/2013
Fitting instructions
⚠️ WARNING — IMPORTANT BEFORE INSTALLATION
Before replacement, it is essential to identify and rectify the cause of the previous failure. Check the lubrication circuit, the oil supply and return das well as the cleanliness of the pipes.
Check the inlet and ensure there are no foreign objects present. Carry out priming in accordance with the applicable recommendations and follow the vehicle manufacturer’s instructions.
A lubrication fault that is not rectified may lead to further damage to the turbocharger.
How do you identify the correct turbo?
Check the part number engraved or marked on the original turbo d, then compare it with the OEM and manufacturer part numbers in this data sheet.. Also check the make, model, generation, body style, engine type, power output (190 hp), production period and engine code 276DT.
An identical engine may have several different turbocharger set-ups depending on the vehicle and its production date.
⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original d turbo with the part numbers listed in this specification sheet. An identical engine does not always guarantee compatibility.
If in doubt, please contact our team, providing the full part number of your original turbo d.
Delivery within 24-72 hours (order before 5 p.m.)
Year: July 2004 to March 2013
Power: 190 hp
displacement: 2.7 L
Engine code: 276DT (TDV6)
Warranty: 2 years
